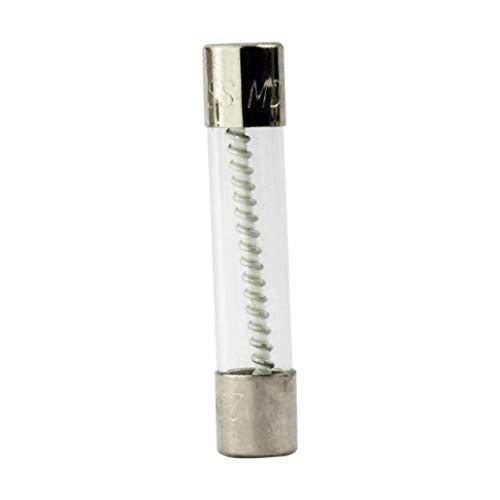

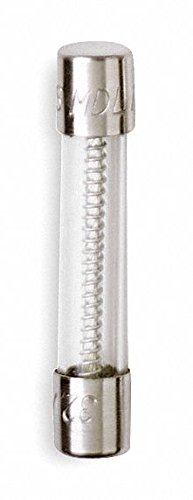

Glass Fuse - 1.2A, Time Delay, 250VAC, Cylindrical, Mounting Clip
Glass Fuse - 1.2A, Time Delay, 250VAC, Cylindrical, Mounting Clip
Regular price
$0.48 USD
Regular price
Sale price
$0.48 USD
Unit price
/
per
Shipping calculated at checkout.
61 in stock
Couldn't load pickup availability
Condition: New
Brand: EATON BUSSMANN
MPN: BK/MDL-1-2/10-R
MPN Xref:BK/MDL-1-2/10-R, BKMDL1210R, 48K9755, 504-BK/MDL-1-2/10-R, MDL-1-2/10-R, 283-3856-ND
This glass fuse is ideal for circuit protection and has a current rating of 1.2 A. It has a time delay/slow blow fuse type and a voltage rating of 250 VAC. The fuse has a cylindrical body style and is designed for mounting in a holder/clip. It is RoHS compliant and approved by CSA and UL.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: EATON BUSSMANN
MPN: BK/MDL-1-2/10-R
MPN Xref:BK/MDL-1-2/10-R, BKMDL1210R, 48K9755, 504-BK/MDL-1-2/10-R, MDL-1-2/10-R, 283-3856-ND
This glass fuse is ideal for circuit protection and has a current rating of 1.2 A. It has a time delay/slow blow fuse type and a voltage rating of 250 VAC. The fuse has a cylindrical body style and is designed for mounting in a holder/clip. It is RoHS compliant and approved by CSA and UL.
| Dimensions | 0.5625 x 2 in |
| Alternate Part No. | 504-BK/MDL-1-2/10-R |
| Part # Aliases | BK-MDL-1-2-10-R |
| Case Length | 31.75 mm |
| Indicator Style | Without Indicator |
| Fuse Type | Slow Blow |
| Manufacturer Part No. | BK/MDL-1-2/10-R |
| Product Type | Glass Fuse |
| Current Rating | 1.2 A |
| Termination Style | Clip |
| Manufacturer | Bussmann |
| Mounting Style | Holder / Clip |
| Interrupt Rating | 100 A |
| Unit Weight | 2.268 g |
| Product Category | Cartridge Fuses |
| Body Style | Cylindrical |
| Fuse Size/Group | 3AG (6.3 mm x 32 mm) |
| Resistance | 5.234 Ohms |
| Series | MDL |
| Case Diameter | 6.35 mm |
| Product | Specialty Fuses |
| Packaging | Bulk |
| Brand | Bussmann / Eaton |
| Voltage Rating AC | 250 V |
| Type | Electronic Time Delay Ferrule Fuse |
| Category | Circuit Protection |
| Mfr | Eaton - Electronics Division |
| Package | Active |
| Part Status | Holder |
| Mounting Type | Cartridge, Glass |
| Response Time | 3AB, 3AG, 1/4" x 1-1/4" |
| Package / Case | - |
| Breaking Capacity @ Rated Voltage | - |
| Approval Agency | - |
| Operating Temperature | - |
| Color | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) |
| Size / Dimension | 1.2 A |
| Current Rating (Amps) | 250 V |
| Manufacturer Part Number | BK/MDL-1-2/10-R |
| Item Number | BK/MDL-1-2/10-R |
| Product Series | MDL |
| Family Series | Bussmann Fuses, MDL Series |
| Material | Glass |
| Voltage (AC) | 250 VAC |
| Characteristic | Time Delay |
| Package Type | Cartridge |
| Trip Indicator | No |
| Alarm Contact | No |
| Length (mm) | 31.75 mm |
| Diameter (mm) | 6.35 mm |
| Diameter (in) | 0.25 " |
| Approvals | CSA, UL |
| RoHS | Yes |
| Length (In) | 1.25 " |
| Net Weight | 0 lbs |
| Gross Weight | 0 lbs |
| Catalog Number | BK/MDL-1-2/10-R |
| Country of Origin | Taiwan, Province Of China |
| Made in USA | No |
| UPC | 051712652834 |
| Package Quantity | 1 |
