Active Surface Mount Aluminum Electrolytic Capacitor - 10uF, 16V

Active Surface Mount Aluminum Electrolytic Capacitor - 10uF, 16V

Regular price $0.01 USD
Regular price Sale price $0.01 USD
Sale Sold out
Shipping calculated at checkout.

20 in stock

Condition: New
Brand: United Chemi-Con
MPN Xref:EMVE160ADA100MD55G, 1698443, 23K4477, 565-2201-2-ND, 661-EMVE160ADA100MD5, EMVE160ADA100M>, 565-2201-6-ND, 565-2201-1-ND

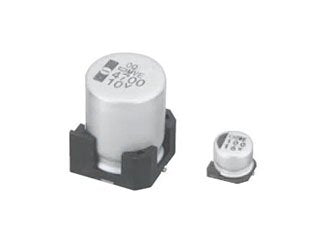

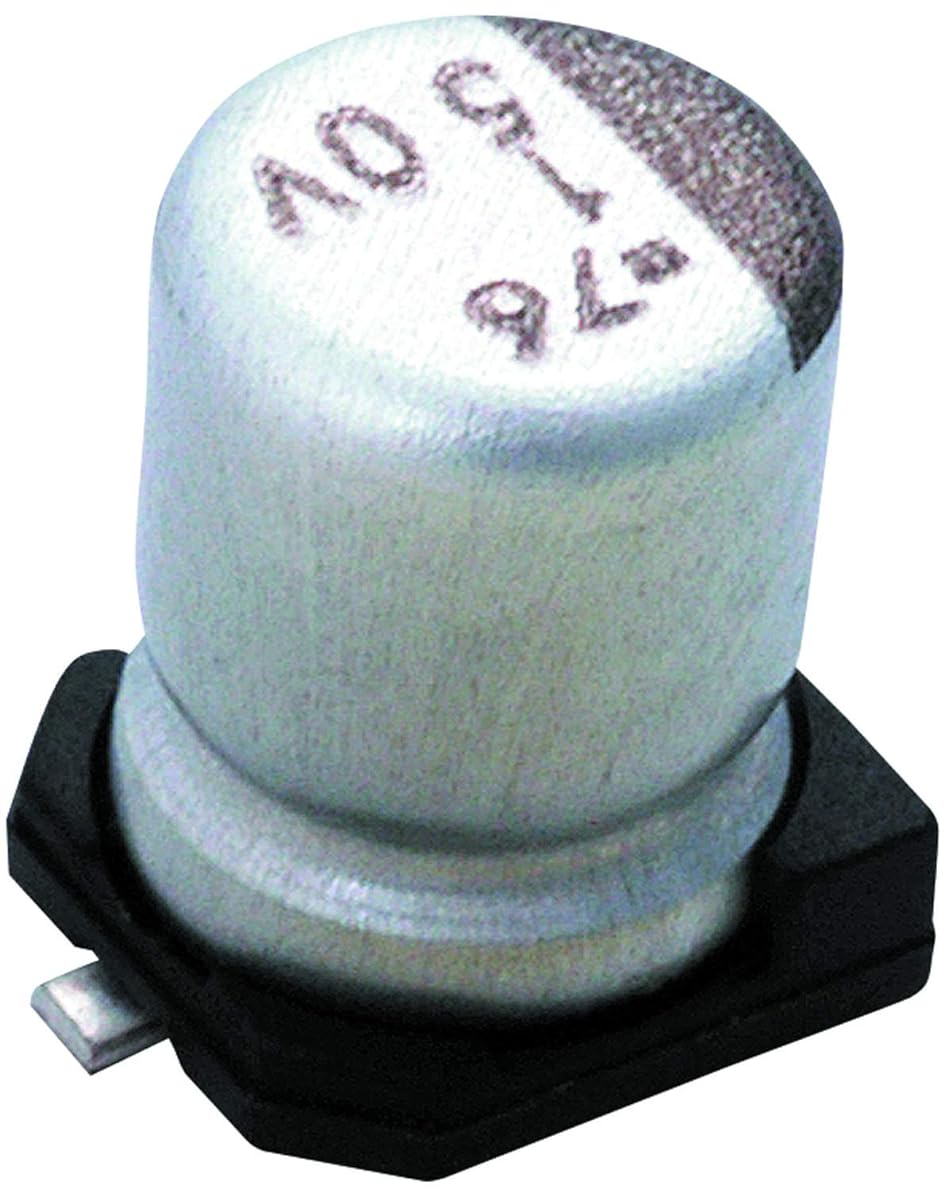

This product is an active surface mount aluminum electrolytic capacitor with a capacitance of 10uF and a voltage rating of 16V. It is designed for general purpose applications and has a maximum operating temperature of +85°C.
Voltage Rating DC 16 V
Maximum Operating Temperature + 85 C
Product Aluminum Electrolytic Capacitors
Capacitance 10 ?F
Ripple Current 17 mA
Tolerance ?20%
Manufacturer Part No. EMVE160ADA100MD55G
Packaging Reel
Load Life 1000 h
Dissipation Factor DF 0.2
Termination Style SMD/SMT
Type SMD Aluminum Electrolytic Capacitors
Tradename Alchip
Minimum Operating Temperature - 40 C
Alternate Part No. 661-EMVE160ADA100MD5
Case Length 5.2 mm
Product Category Aluminium Electrolytic Capacitors - SMD
Case Diameter 4 mm
Series Alchip?- MVE
Category Capacitors
Package Tape & Reel (TR)
Part Status Active
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105?C
Operating Temperature -40?C ~ 105?C
Polarization Polar
Ratings -
Applications General Purpose
Lead Spacing -
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.205" (5.20mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Voltage - Rated 16 V
Ripple Current @ Low Frequency 17 mA @ 120 Hz
Product Status Active
