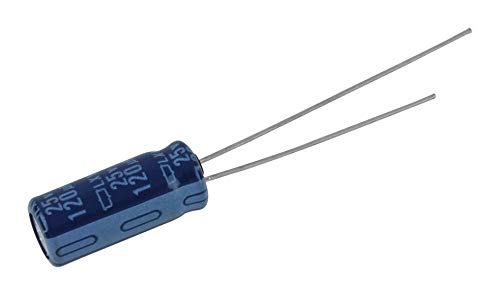

High Temperature Electrolytic Capacitors - 25V, 120uF
High Temperature Electrolytic Capacitors - 25V, 120uF
Regular price
$0.07 USD
Regular price
Sale price
$0.07 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 10 left
Couldn't load pickup availability
Condition: New
Brand: United Chemi-Con
MPN: ELXY250ELL121MF15D
MPN Xref:ELXY250ELL121MF15D, 23K4074, 1686309, 661-ELXY250ELL121MF1, 565-1791-ND
This high temperature electrolytic capacitor has a tolerance of 20%, a DC voltage rating of 25V, and a capacitance of 120uF. It is designed with a radial termination style and is ideal for automotive applications.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: United Chemi-Con
MPN: ELXY250ELL121MF15D
MPN Xref:ELXY250ELL121MF15D, 23K4074, 1686309, 661-ELXY250ELL121MF1, 565-1791-ND
This high temperature electrolytic capacitor has a tolerance of 20%, a DC voltage rating of 25V, and a capacitance of 120uF. It is designed with a radial termination style and is ideal for automotive applications.
| Category | Capacitors |
| Series | LXY |
| Package | Active |
| Part Status | ?20% |
| Tolerance | - |
| ESR (Equivalent Series Resistance) | 2000 Hrs @ 105?C |
| Lifetime @ Temp. | -55?C ~ 105?C |
| Operating Temperature | Polar |
| Polarization | AEC-Q200 |
| Ratings | Automotive |
| Applications | 0.098" (2.50mm) |
| Lead Spacing | 0.248" Dia (6.30mm) |
| Size / Dimension | 0.650" (16.50mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | Through Hole |
| Mounting Type | Radial, Can |
| Package / Case | 120 ?F |
| Capacitance | 120 uF |
| Voltage - Rated | 250 mOhms |
| Impedance | 156 mA @ 120 Hz |
| Ripple Current @ Low Frequency | 390 mA @ 100 kHz |
| Packaging | Bulk |
| Case Length | 15 mm |
| Product | High Temp Electrolytic Capacitors |
| Manufacturer Part No. | ELXY250ELL121MF15D |
| Case Diameter | 6.3 mm |
| Voltage Rating DC | 25 V |
| Dimensions | 6.3 mm Dia. x 15 mm L |
| Termination Style | Radial |
| Alternate Part No. | 661-ELXY250ELL121MF1 |
| Product Category | Aluminium Electrolytic Capacitors - Leaded |
| Maximum Operating Temperature | + 105 C |
