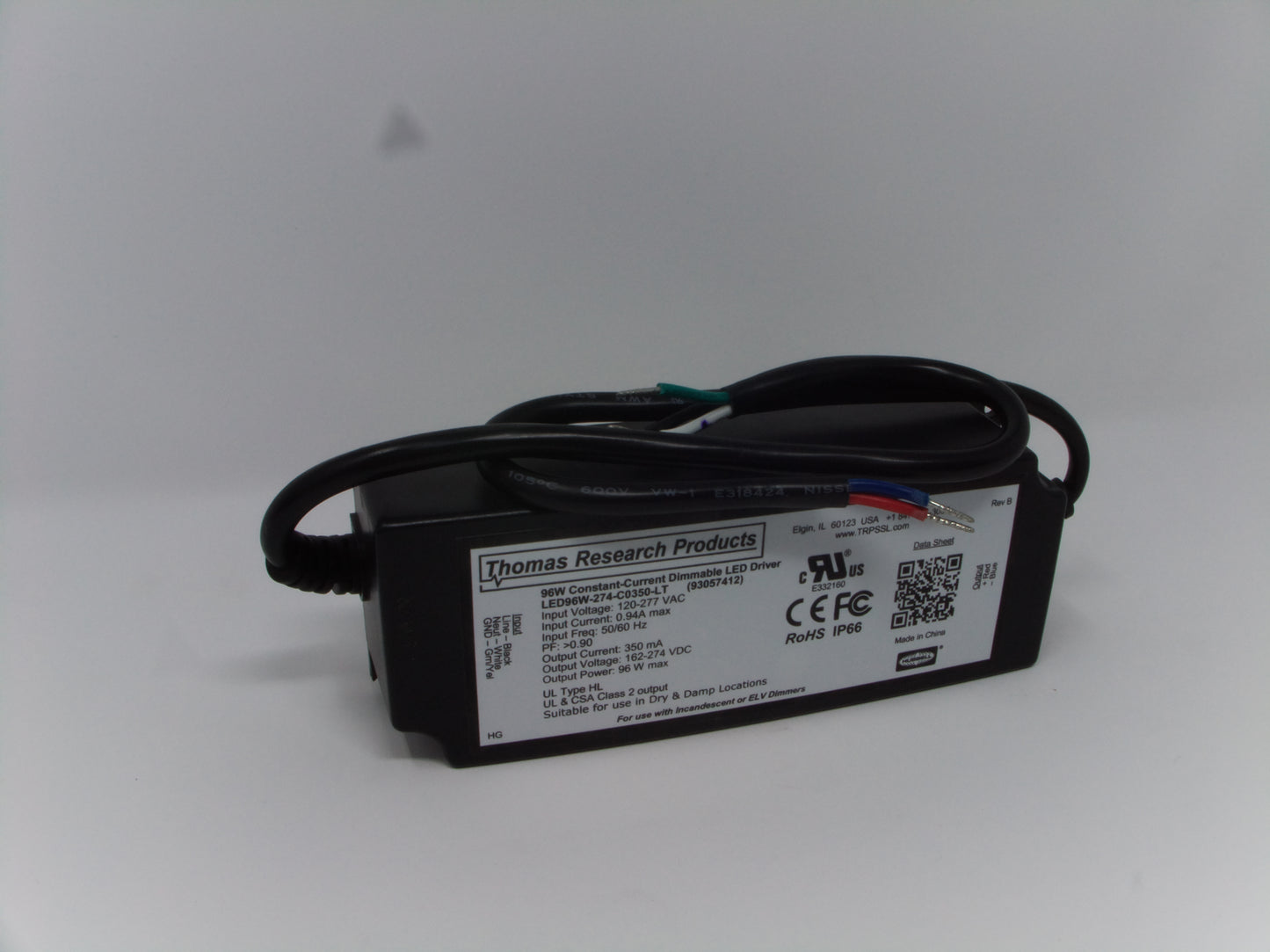

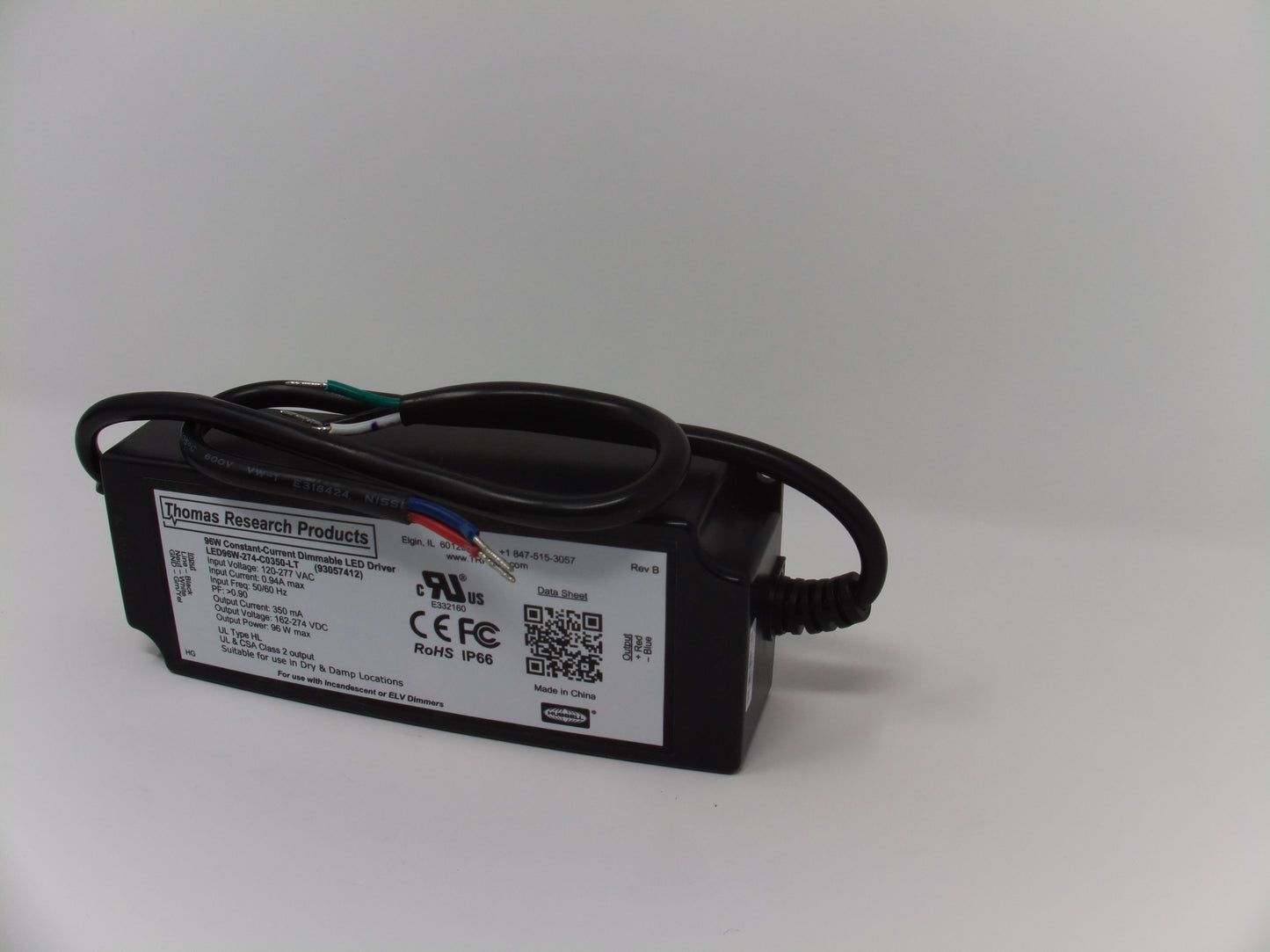

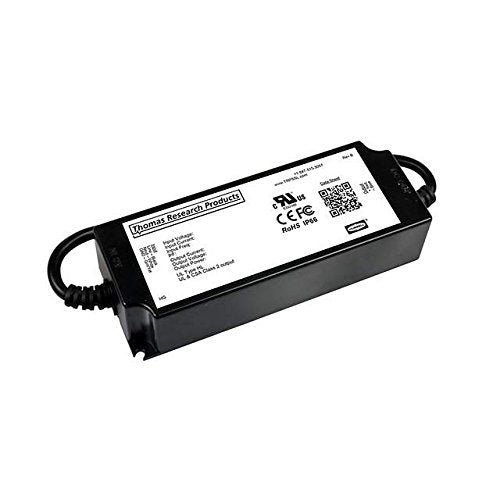

LED-96W-LT Constant Current Power Supply

Condition: New
Brand: Thomas Research Products
MPN: LED96W-274-C0350-LT
MPN Xref:LED96W-274-C0350-LT

This LED-96W-LT power supply is a constant current type with a voltage output range of 162 ~ 274V. It has a maximum output current of 350mA and a power rating of 96W. The power supply features dimming options, as well as overcurrent, overvoltage, and short circuit protection. It is IP66 and NEMA 4 rated for rugged applications. The power supply is CE and cURus approved and can be chassis mounted.

Category	Power Supplies - External/Internal (Off-Board)
Series	LED-96W-LT
Package	Box
Part Status	Active
Type	Constant Current
Topology	AC DC Converter
Number of Outputs	1
Voltage - Input (Min)	100VAC
Voltage - Input (Max)	305VAC
Voltage - Output	162 ~ 274V
Current - Output (Max)	350mA
Power (Watts)	96 W
Dimming	ELV, Triac
Features	OCP, OVP, SCP
Ratings	IP66, NEMA 4
Operating Temperature	-
Efficiency	92%
Termination Style	Wire Leads
Size / Dimension	6.34" L x 2.40" W x 1.50" H (161.0mm x 61.0mm x 38.0mm)
Approval Agency	CE, cURus
Mounting Type	Chassis Mount
Weight	0.687 lb (311.62 g)
Base Product Number	LED96W
