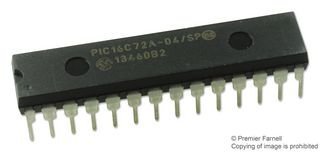

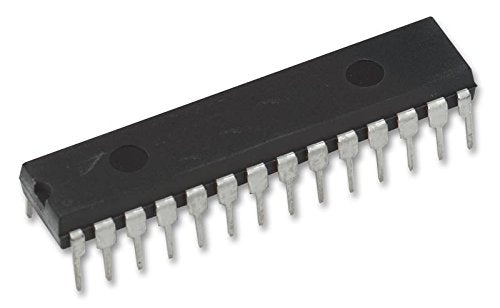

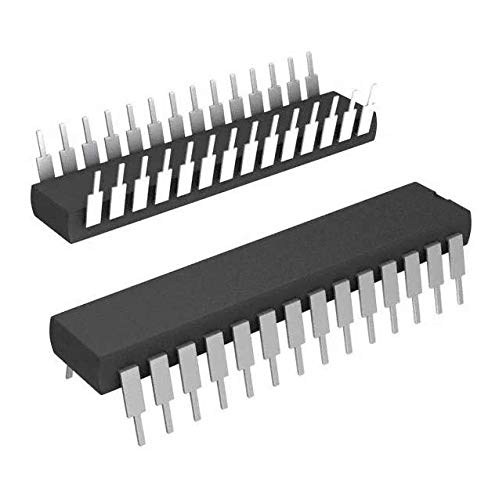

PIC Microcontroller with 3.5kB Program Memory and 128B SRAM

Condition: New
Brand: MICROCHIP
MPN: PIC16C72A-04/SP
MPN Xref:PIC16C72A-04/SP

This integrated circuit is a PIC microcontroller with 3.5kB program memory and 128B SRAM memory capacity. It has a clock frequency of 4MHz and is mounted through hole. The IC has a DIP28 case, 22 inputs/outputs, 2 8bit timers, and 1 16bit timer. It has a Harvard 8bit architecture, belongs to the PIC16 family, and has a tube package. The operating temperature range is 0-70°C. Additional features include 3500B flash memory capacity, 2.54mm terminal pitch, 1 output compare channel, 1 input capture channel, and a SPDIP-28 package/case.

Type of integrated circuit	PIC microcontroller
Program memory	3.5kB
SRAM memory capacity	128B
Clock frequency	4MHz
Mounting	THT
Case	DIP28
Number of inputs/outputs	22
Number of 8bit timers	2
Number of 16bit timers	1
Kind of architecture	Harvard 8bit
Family	PIC16
Kind of package	tube
Operating temperature	0...70?C
Flash memory capacity	3500B
Terminal pitch	2.54mm
Operating frequency	0...4MHz
Number of output compare channels	1
Number of input capture channels	1
Package/Case	SPDIP-28
Product Categories	8-bit Microcontrollers - MCU
RoHs Status	Lead free/RoHS Compliant
In-stock	188
Data RAM Size	128 B
On Chip ADC	Yes
Operating Supply Voltage	2.5 V to 5.5 V
Maximum Operating Temperature	+70 °C
Package / Case	SPDIP-28
Mounting Style	Through Hole
A/D Bit Size	8 bit
A/D Channels Available	5
Data ROM Size	128 B
Interface Type	I2C, SPI, SSP
Minimum Operating Temperature	0 C
Number of Programmable I/Os	22
Number of Timers	3 Timer
Packaging	Tube
Processor Series	PIC16
Program Memory Type	EPROM
Factory Pack Quantity	15
Supply Voltage Max	5.5 V
Supply Voltage Min	4 V
ADC Resolution	8 bit
Architecture	RISC
Comparator Type	Zero
Data Rate	5 MIPS
Dimensions	35.18 x 8.51 x 3.43 mm
EEPROM Memory	0 B
Family Name	PIC16
Frequency	4
Height	0.135" (3.43mm)
Length	1.385 in
Maximum Number of I2C Channels	1
Maximum Number of SPI Channels	1
Memory Type	OTP
Mounting Type	28-DIP (0.300", 7.62mm)
Number of ADCs	5 x 8 bit
Number of Bits	8
Number of IO Ports	22
Number of Pins	28
Number of PWM Units	1
Operating Voltage	4 to 5.5 V
Package Type	SPDIP
Program Memory Size	OTP
Pulse Width Distortion	1 x 10 bit
PWM Channels	1
PWM Resolution	10 bit
RAM Size	4V ~ 5.5V
Series	PIC16
Temperature Operating Range	0 to +70 °C
Timer Resolution	8, 16 bit
Timers	1 x 16 bit, 2 x 8 bit
Type	PIC
USB Channels	0
Width	0 in
Product Category	8-bit Microcontrollers - MCU
On-Chip ADC	Yes
Supply Voltage - Max	5.5 V
Maximum Clock Frequency	20 MHz
Number of I/Os	22 I/O
Alternate Part No.	579-PIC16C72A04SP
Data Bus Width	8 bit
Data ROM Type	OTP EPROM
Core	PIC
Manufacturer Part No.	PIC16C72A-04/SP
Supply Voltage - Min	4 V
Category	Integrated Circuits (ICs)
Package	Active
Part Status	PIC
Core Processor	8-Bit
Core Size	4MHz
Speed	I?C, SPI
Connectivity	Brown-out Detect/Reset, POR, PWM, WDT
Peripherals	3.5KB (2K x 14)
EEPROM Size	128 x 8
Voltage - Supply (Vcc/Vdd)	A/D 5x8b
Data Converters	External
Oscillator Type	0?C ~ 70?C (TA)
Operating Temperature	Through Hole
Supplier Device Package	22
