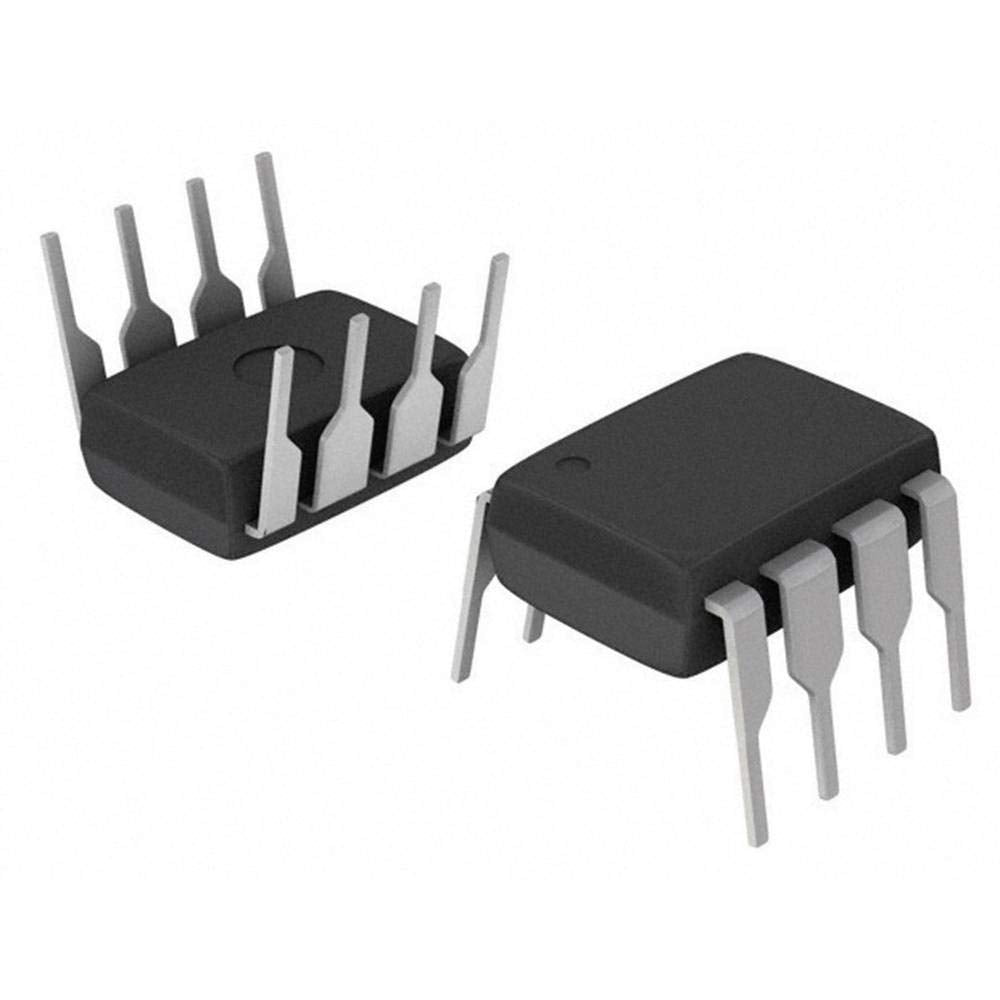

Programmable Gain Special Purpose Amplifier - PDIP-8

Condition: New
Brand: MICROCHIP
MPN: MCP6S22-I/P
MPN Xref:MCP6S22-I/P

This special purpose amplifier is a single channel programmable gain amplifier with rail-to-rail input and output. It has a maximum operating temperature of +85°C and a minimum operating temperature of -40°C. The amplifier has a supply voltage range of 2.5V to 5.5V and a current supply of 1mA. It is mounted through hole and comes in a PDIP-8 package. The amplifier has a 0.275mV input offset voltage and a maximum input resistance. The amplifier has a bandwidth of 2-12MHz and a slew rate of 22V/μs. It is suitable for various applications requiring amplification and gain adjustment.

Product Category	Special Purpose Amplifiers
Maximum Operating Temperature	+85 °C
Mounting Style	Through Hole
Vos - Input Offset Voltage	0.275 mV
Number of Channels	1 Channel
Alternate Part No.	579-MCP6S22-I/P
Supply Voltage - Min	2.5 V
Packaging	Tube
Ib - Input Bias Current	0.000001 uA
Supply Voltage - Max	5.5 V
Manufacturer Part No.	MCP6S22-I/P
Minimum Operating Temperature	-40 °C
Package/Case	PDIP-8
Number of Channels per Chip	1
Length	9.46mm
Typical Single Supply Voltage	3 V, 5 V
Power Supply Type	Single
Package Type	PDIP
Mounting Type	Through Hole
Width	6.35mm
Rail to Rail	Rail to Rail Input/Output
Height	3.3mm
Output Type	Rail to Rail
Pin Count	8
Maximum Input Offset Voltage	0.275mV
Dimensions	Dimensions
Maximum Input Resistance	Maximum Input Resistance
Stock	Stock
Type of integrated circuit	operational amplifier
Bandwidth	2...12MHz
Mounting	THT
Number of channels	2
Case	DIP8
Operating current	1.1mA
Interface	SPI
Kind of integrated circuit	programmable gain amplifiers PGAs
Operating voltage	2.5...5.5V
Category	Integrated Circuits (ICs)
Series	-
Package	Tube
Part Status	Active
Amplifier Type	Programmable Gain
Slew Rate	22V/?s
Current - Supply	1mA
Voltage - Supply, Single/Dual (?)	2.5V ~ 5.5V
Operating Temperature	-40?C ~ 85?C
Package / Case	8-DIP (0.300"", 7.62mm)
Supplier Device Package	8-PDIP
Number of Circuits	2
-3db Bandwidth	12MHz
Current - Input Bias	1pA
Voltage - Input Offset	275?V
Current - Output / Channel	30mA
