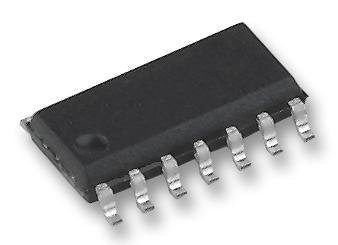

General Purpose SOIC-14 Operational Amplifier

Condition: New
Brand: Microchip
MPN: MCP609-I/SL
MPN Xref:MCP609-I/SL, MCP609-I/SL-ND, 70046177, 26M1289, 579-MCP609-I/SL, MCP609I/SL, MCP609ISL, 1292248, 644279

This SOIC-14 package general purpose operational amplifier is RoHS compliant and operates with a supply voltage of 2.5 V to 5.5 V. It has a slew rate of 0.08 V/μs, an output current of 17 mA, and a gain bandwidth product of 0.155 MHz. It is suitable for a wide range of applications.

Type of integrated circuit	operational amplifier
Bandwidth	155kHz
Open-loop gain	118dB
Mounting	SMT
Number of channels	4
Case	SO14
Slew rate	80mV/?s
Quiescent current	25?A
Operating temperature	-40...85?C
Input offset voltage	0.25mV
Integrated circuit features	rail-to-rail output
Operating voltage	2.5...5.5V
Package/Case	SOIC-14
Product Categories	Op Amps
RoHs Status	Lead free / RoHS Compliant
In-stock	7963
Operating Supply Voltage	2.5 V to 5.5 V
Mounting Style	SMD/SMT
Package / Case	SOIC-14
Slew Rate	0.08 V/μs
Shutdown	No
Output Current	17 mA
Maximum Operating Temperature	+ 85 C
Packaging	Tube
Amplifier Type	General Purpose
Gain Bandwidth Product	0.155 MHz
Minimum Operating Temperature	- 40 C
Factory Pack Quantity	57
Supply Current	25 uA
Technology	CMOS
Voltage Gain dB	121 dB
Common Mode Rejection Ratio	91 dB
Density Noise	38 nV/vHz
Dimensions	8.65 x 3.90 x 1.25 ; Minimum mm
Gain Bandwidth	155 kHz
Input Bias Current	80 pA
Input Offset Current	1 pA
Input Offset Voltage	250 μV
Input Voltage	2.2 to 2.8 V
Input Voltage Range	-0.3 to 4.4 V
Length	0.34 in
Mounting Type	Surface Mount
Noise Voltage	38 nV/sqrt Hz
Number of Amplifiers	Quad
Number of Channels per Chip	4
Number of Circuits	4
Number of Pins	14
Output Type	Rail to Rail
Package Type	SOIC
Product Header	Micropower CMOS Operational Amplifier
Temperature Operating Range	-40 to +85 °C
Type of Power Supply	Single Output
Typical Single Supply Voltage	2.5 to 6 V
Voltage, Input, Low Level	-0.3 V
Voltage, Output, High Level	2480 mV
Voltage, Output, Low Level	2480 mV
