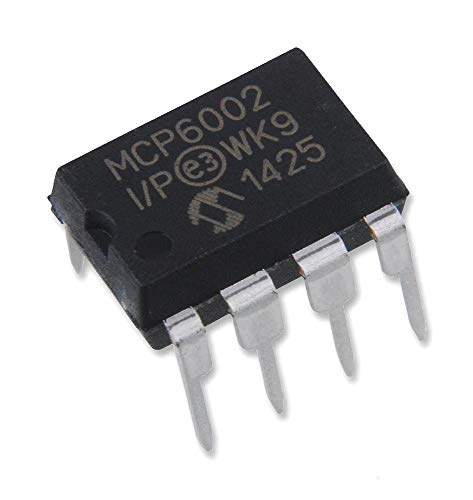

Low Power General Purpose Operational Amplifier - 2 Channel

Condition: New
Brand: Microchip
MPN: MCP6002-I/P
MPN Xref:MCP6002-I/P

This low power amplifier is a general purpose operational amplifier with 2 channels per chip. It has a maximum operating temperature of +85 °C and a typical voltage gain of 112 dB. It is a single power supply type and has a DIP package type with through hole mounting. Its dimensions are 0.4 in length, 0.6 in width, and 0.195 in height.

Number of Channels per Chip	2
Maximum Operating Temperature	+85 °C
Length	0.4 in
Typical Single Supply Voltage	1.8 to 6 V
Typical Slew Rate	0.6V/µs
Typical Voltage Gain	112 dB
Power Supply Type	Single
Package Type	DIP
Mounting Type	Through Hole
Minimum Operating Temperature	-40 °C
Width	0 in
Rail to Rail	Rail to Rail Input/Output
Height	3.3mm
Pin Count	8
Dimensions	Dimensions
Typical Gain Bandwidth Product	Typical Gain Bandwidth Product
Amplifier Type	Low Power Amplifier
Stock	Stock
SR - Slew Rate	0.6 V/us
en - Input Voltage Noise Density	28 nV
Product	Operational Amplifiers
Output Current per Channel	23 mA
Packaging	Tube
Mounting Style	Through Hole
Supply Current per Channel	0.1 mA
GBP - Gain Bandwidth Product	1 MHz
Operating Supply Voltage	1.8 V to 5.5 V
Ib - Input Bias Current	1 pA
Supply Voltage - Max	5.5 V
Shutdown	No
Package/Case	DIP-8
Alternate Part No.	579-MCP6002-I/P
Vos - Input Offset Voltage	4.5 mV
Manufacturer Part No.	MCP6002-I/P
PSRR - Power Supply Rejection Ratio	86 dB
Number of Channels	2 Channel
Technology	CMOS
Product Category	Operational Amplifiers - Op Amps
CMRR - Common Mode Rejection Ratio	60 dB
Supply Voltage - Min	1.8 V
Base Part Number	MCP6002
Current - Input Bias	1pA
Current - Output / Channel	23mA
Current - Supply	100?A (x2 Channels)
Gain Bandwidth Product	1 MHz
Lead Free Status / RoHS Status	RoHS Compliant
Manufacturer Part Number	MCP6002-I/P
Manufacturer Standard Lead Time	12 Weeks
Number of Circuits	2
Operating Temperature	-40?C ~ 85?C
Output Type	Rail to Rail
Package / Case	8-DIP (0.300", 7.62mm)
Slew Rate	0.6 V/μs
Standard Package	60
Supplier Device Package	8-PDIP
Voltage - Input Offset	4.5mV
Voltage - Supply, Single/Dual (?)	1.8 V ~ 6 V
Type of integrated circuit	operational amplifier
Bandwidth	1MHz
Open-loop gain	112dB
Mounting	THT
Number of channels	2
Case	DIP8
Slew rate	0.6V/?s
Quiescent current	170?A
Operating temperature	-40...85?C
Input offset voltage	4500?V
Integrated circuit features	rail-to-rail
Kind of package	tube
Operating voltage	1.8...5.5V
Category	Integrated Circuits (ICs)
Series	-
Package	Tube
Part Status	Active
Product Status	Active
Voltage - Supply Span (Min)	1.8 V
Voltage - Supply Span (Max)	6 V
Base Product Number	MCP6002
Common Mode Rejection Ratio	76 dB
Density Noise	28 nV/vHz
Gain Bandwidth	1 MHz
Input Bias Current	19 pA
Input Offset Current	+/-1 pA
Input Offset Voltage	4.5 mV
Input Voltage	1.5 to 2.1 V
Input Voltage Range	-0.3 to 5.8 V
Noise Voltage	28 nV/sqrt Hz
Number of Amplifiers	Dual
Number of Pins	8
Output Current	23 mA
Product Header	Low-Power Operational Amplifier
Supply Current	0.1 mA
Temperature Operating Range	-40 to +85 °C
Type of Power Supply	Single Output
Voltage, Input, High Level	5.8 V
Voltage, Input, Low Level	-0.3 V
Voltage, Output, High Level	1775 mV
Voltage, Output, Low Level	1775 mV
Product Categories	Op Amps
RoHs Status	Lead free/RoHS Compliant
In-stock	5000
Factory Pack Quantity	60
Voltage Gain dB	112 dB
