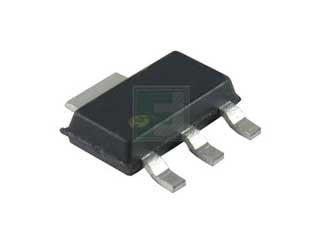

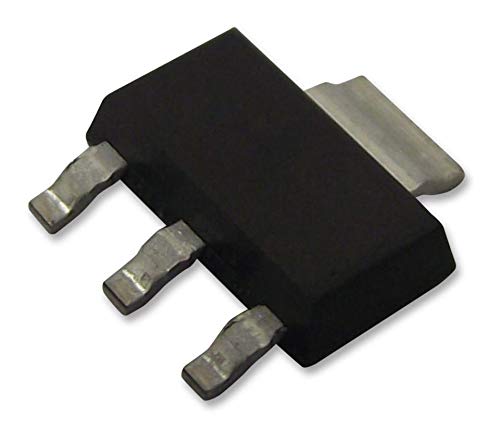

1.2V LDO Voltage Regulator IC - Tube Package

Condition: New
Brand: Microchip
MPN: MCP1826S-1202E/DB
MPN Xref:MCP1826S-1202E/DB, 1851995, 579-MCP1826S-1202EDB, MCP1826S-1202E/DB-ND, 27M0025, MCHP-0041027, 20T5982, 8230684, 70451392

This is a voltage regulator IC with a fixed output of 1.2V and a current output of 1A. It has a voltage dropout of 0.4V and a maximum input voltage of 6V. It is suitable for low power applications.

Type of integrated circuit	voltage regulator
Kind of voltage regulator	fixed,
Voltage drop	0.4V
Output voltage	1.2V
Output current	1A
Case	SOT223-3
Mounting	SMD
Kind of package	tube
Operating temperature	-40...125?C
Tolerance	?2%
Number of channels	1
Input voltage	2.3...6V
Manufacturer series	MCP1826S
Package/Case	SOT-223-3
Product Categories	Low Dropout (LDO) Regulators
RoHs Status	Rohs
Marking Code	1826S12+EDBxxxx
In-stock	1500
Number of Outputs	1
Output Type	Fixed
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	TO-261-4, TO-261AA
Input Bias Current (Max)	0.12 mA
Input Voltage MIN	+ 2.3 V
Line Regulation	0.05 % / V
Minimum Operating Temperature	- 40 C
Packaging	Tube
Factory Pack Quantity	78
Voltage Regulation Accuracy	2 %
Category	Integrated Circuits (ICs)
Series	-
Package	Tube
Part Status	Active
Output Configuration	Positive
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	1.2V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.4V @ 1A
Current - Output	1A
PSRR	60dB (100Hz)
Control Features	-
Protection Features	Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature	-40?C ~ 125?C
Mounting Type	Surface Mount
Supplier Device Package	SOT-223-3
Number of Regulators	1
Current - Quiescent (Iq)	220 ?A
