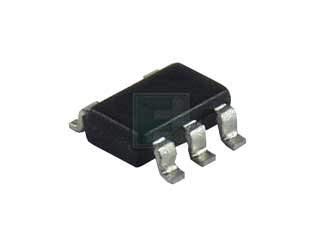

MCP1603T-330I/OS - IC REG BUCK 3.3V 500MA TSOT23-5

Condition: New
Brand: MICROCHIP
MPN: MCP1603T-330I/OS
MPN Xref:MCP1603T-330I/OS

IC REG BUCK 3.3V 500MA TSOT23-5. Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 500mA.

Manufacturer Product Number	MCP1603T-330I/OS
Description	IC REG BUCK 3.3V 500MA TSOT23-5
Manufacturer Standard Lead Time	7 Weeks
Detailed Description	Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 500mA SOT-23-5 Thin, TSOT-23-5
Category	Integrated Circuits (ICs)
Series	-
Package	Tape & Reel (TR)
Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	buck
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	2.7V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	-
Current - Output	500mA
Frequency - Switching	2MHz
Synchronous Rectifier	Yes
Operating Temperature	-40?C ~ 125?C (TJ)
Mounting Type	Surface Mount
Package / Case	TSOT-5
Supplier Device Package	TSOT-23-5
Base Product Number	MCP1603
Part Status	Active
Package/Case	TSOT-5
Product Categories	Switching Converters, Regulators & Controllers
RoHs Status	Rohs
Marking Code	EXxx
In-stock	1510
Mounting Style	SMD/SMT
Packaging	Reel
Factory Pack Quantity	3000
Switching Frequency	2 MHz
Output Voltage	800 mV to 4.5 V
Output Current	500 mA
Alternate Part No.	579-MCP1603T-330I/OS
Product Category	Voltage Regulators - Switching Regulators
Manufacturer Part No.	MCP1603T-330I/OS
Input Voltage MAX	5.5 V
Type	Step-Down Regulator
Type of integrated circuit	PMIC
Kind of integrated circuit	DC/DC converter
Input voltage	2.7...5.5V DC
Output voltage	3.3V DC
Output current	0.5A
Case	TSOT23-5
Mounting	SMD
Frequency	1.5...2.8MHz
Number of channels	1
Operating temperature	-40...125?C
Kind of package	reel,
Integrated circuit features	shutdown mode control input
Efficiency	90%
Tolerance	?3%
Duty cycle factor	0...100%
Dimensions	2.90 x 1.60 x 1 mm
Height	0.039" (1mm)
Input Bias Current	0.1 nA
Input Voltage	5.5 V
Input Voltage Range	2.7 to 5.5 V
Length	0.114 in
Line Regulation	0.3 %/V
Load Regulation	0.35 %
Maximum Operating Temperature	+85 °C
Maximum Output Voltage	3.3 V
Minimum Operating Temperature	-40 °C
Number of Pins	5
Oscillator Frequency	2 MHz
Package Type	TSOT-23
Product Header	Synchronous Buck Regulator
Regulator Function	Step Down
Regulator Type	Buck
Supply Current	45 μA
Switching Regulator	Yes
Temperature Operating Range	-40 to +85 °C
Voltage, Input, High Level	5.5 V
Voltage, Input, Low Level	2.7 V
Width	0.063 in
