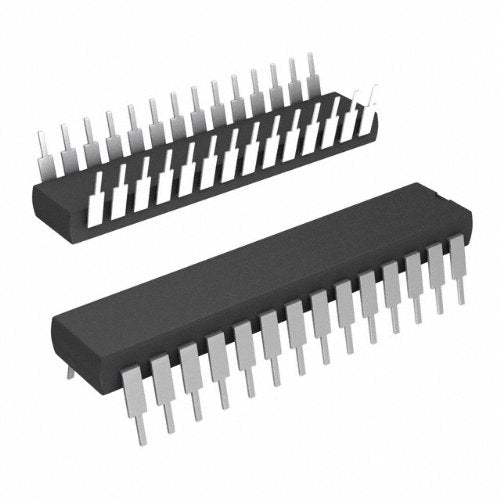

dsPIC Microcontroller - 2kB SRAM, 32kB Program Memory
dsPIC Microcontroller - 2kB SRAM, 32kB Program Memory
Regular price
$2.70 USD
Regular price
Sale price
$2.70 USD
Unit price
/
per
Shipping calculated at checkout.
14 in stock
Couldn't load pickup availability
Condition: New
Brand: Microchip
MPN: DSPIC33FJ32GP202-I/SP
MPN Xref:DSPIC33FJ32GP202-I/SP, 1576913, 39M8166, PIC33FJ32GP202SP, 399795, 70046556, DSPIC33FJ32GP202-I/SP-ND, 17378651, 642570
This integrated circuit is a dsPIC microcontroller with a 16-bit Harvard architecture. It has 2kB of SRAM memory capacity and 32kB of program memory. The IC has 21 inputs/outputs and 3 16-bit timers. It is mounted using through-hole technology and has a case size of DIP28. The IC operates at a voltage range of 3V to 3.6V and has a built-in generator of 512kHz. It is part of the dsPIC 33Fxxx Series and is commonly used in digital signal processing applications.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: Microchip
MPN: DSPIC33FJ32GP202-I/SP
MPN Xref:DSPIC33FJ32GP202-I/SP, 1576913, 39M8166, PIC33FJ32GP202SP, 399795, 70046556, DSPIC33FJ32GP202-I/SP-ND, 17378651, 642570
This integrated circuit is a dsPIC microcontroller with a 16-bit Harvard architecture. It has 2kB of SRAM memory capacity and 32kB of program memory. The IC has 21 inputs/outputs and 3 16-bit timers. It is mounted using through-hole technology and has a case size of DIP28. The IC operates at a voltage range of 3V to 3.6V and has a built-in generator of 512kHz. It is part of the dsPIC 33Fxxx Series and is commonly used in digital signal processing applications.
Type of integrated circuit | dsPIC microcontroller |
SRAM memory capacity | 2kB |
Program memory | 32kB |
Case | DIP28 |
Number of inputs/outputs | 21 |
Number of 16bit timers | 3 |
Mounting | THT |
Kind of architecture | Harvard 16bit |
Family | DSPIC |
Number of 32bit timers | 1 |
Terminal pitch | 2.54mm |
Number of cores | 1 |
Built-in generator | 512kHz, |
Category | Integrated Circuits (ICs) |
Series | dsPIC 33Fxxx Series |
Package | Active |
Part Status | dsPIC |
Core Processor | dsPIC |
Core Size | 40 MIPs |
Speed | 40 MIPs |
Connectivity | I?C, IrDA, LINbus, SPI, UART/USART |
Peripherals | 32KB (32K x 8) |
Program Memory Size | 32 kB |
Program Memory Type | Flash |
EEPROM Size | - |
RAM Size | 3V ~ 3.6V |
Voltage - Supply (Vcc/Vdd) | A/D 10x10b/12b |
Data Converters | Internal |
Oscillator Type | Internal |
Operating Temperature | -40?C ~ 85?C (TA) |
Mounting Type | 28-DIP (0.300", 7.62mm) |
Package / Case | 28-SPDIP |
Supplier Device Package | 28-SPDIP |
Product Status | Active |
Number of I/O | 21 |
Base Product Number | DSPIC33FJ32GP202 |
ADC Resolution | 10, 12 bit |
Architecture | C Compiler ; Modified Harvard |
Comparator Type | Zero |
CPU Speed | 40 MIPS |
Dimensions | 1.400 x 0.295 x 0.150 in |
EEPROM Memory | 0 B |
Frequency | 40 |
Height | 0.15" (3.8mm) |
Input Output | 21 |
Interface | I2C/SPI/UART/USART |
IOs | 21 |
Length | 1.4 in |
Maximum Operating Temperature | + 85 C |
Memory Type | Flash |
Minimum Operating Temperature | - 40 C |
Number of ADCs | 1(10 x 10 bit), 1(10 x 12 bit) |
Number of Bits | 16 |
Number of Pins | 28 |
Number of PWM Units | 1 |
Number of Timers | 3 |
Operating Voltage | 3 to 3.6 V |
Package Type | SPDIP |
Programmable Memory | 32K Bytes |
Pulse Width Distortion | 2 x 16 bit |
PWM Channels | 2 |
PWM Resolution | 16 bit |
Temperature Operating Range | -40 to +85 °C |
Timer Resolution | 16, 32 bit |
Timers | 1 x 32 bit, 3 x 16 bit |
Type | dSPIC33 |
USB Channels | 1 x Device |
Voltage Range | 3-3.6 V |
Width | 0 in |
Package/Case | SPDIP-28 |
Product Categories | Digital Signal Processors & Controllers (DSP, DSC) |
RoHs Status | Rohs |
In-stock | 3008 |
Maximum Clock Frequency | 40 MHz |
Number of Programmable I/Os | 21 |
Mounting Style | Through Hole |
Family / Core | dSPIC33 |
Interface Type | I2C/SPI/UART |
On Chip ADC | Yes |
Packaging | Tube |
Processor Series | DSPIC33F |
Product | DSCs |
Factory Pack Quantity | 15 |
