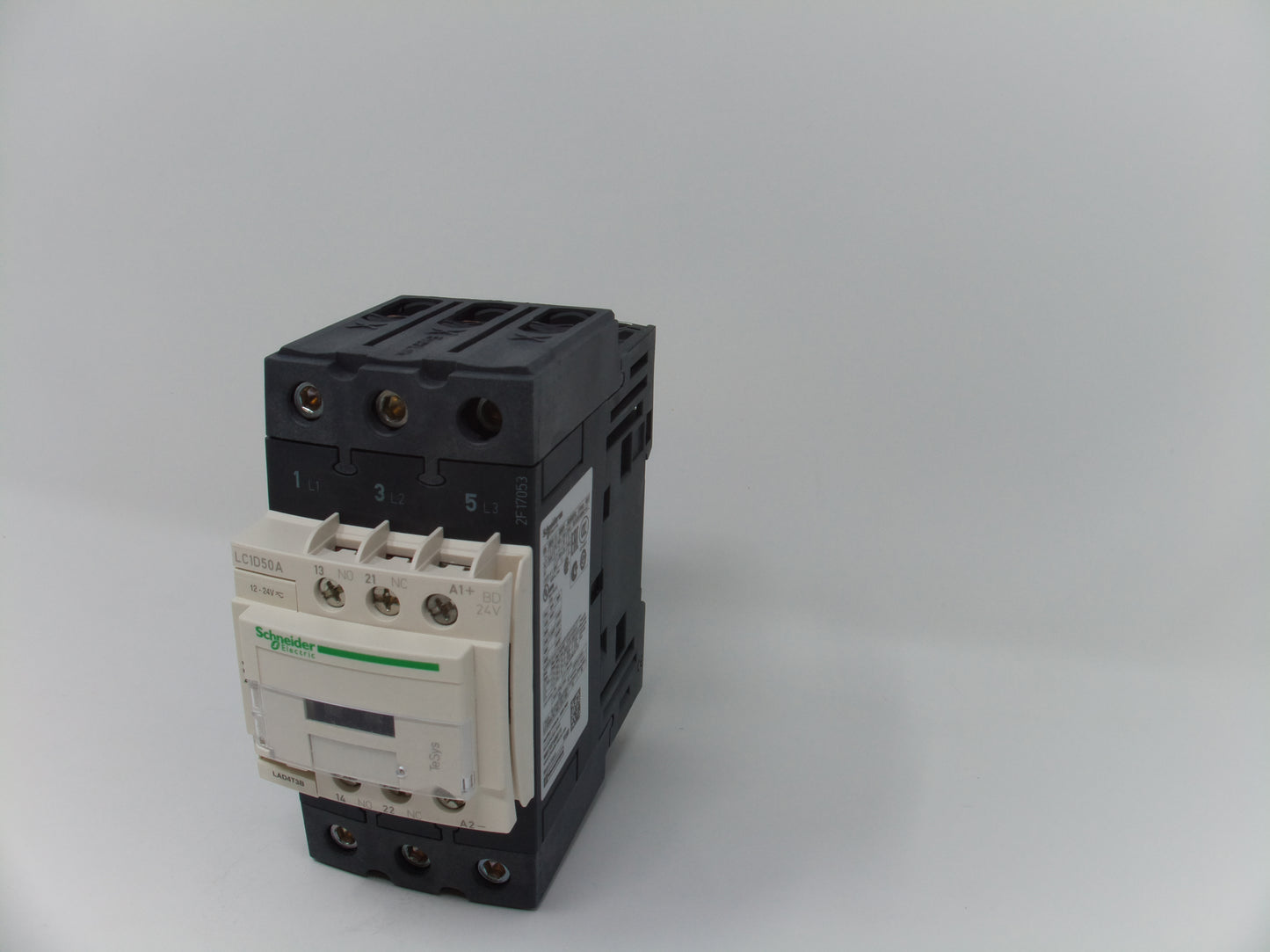

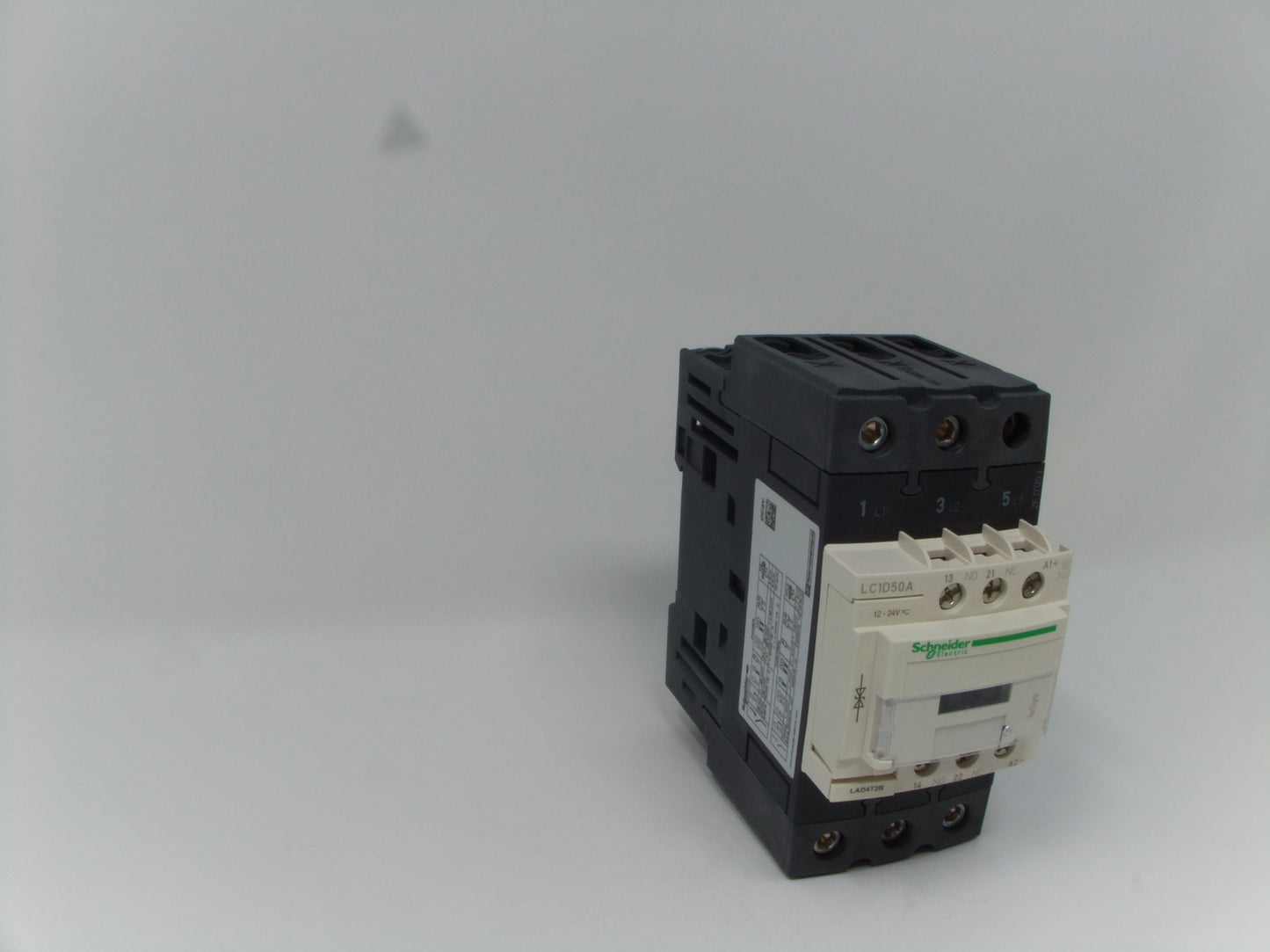

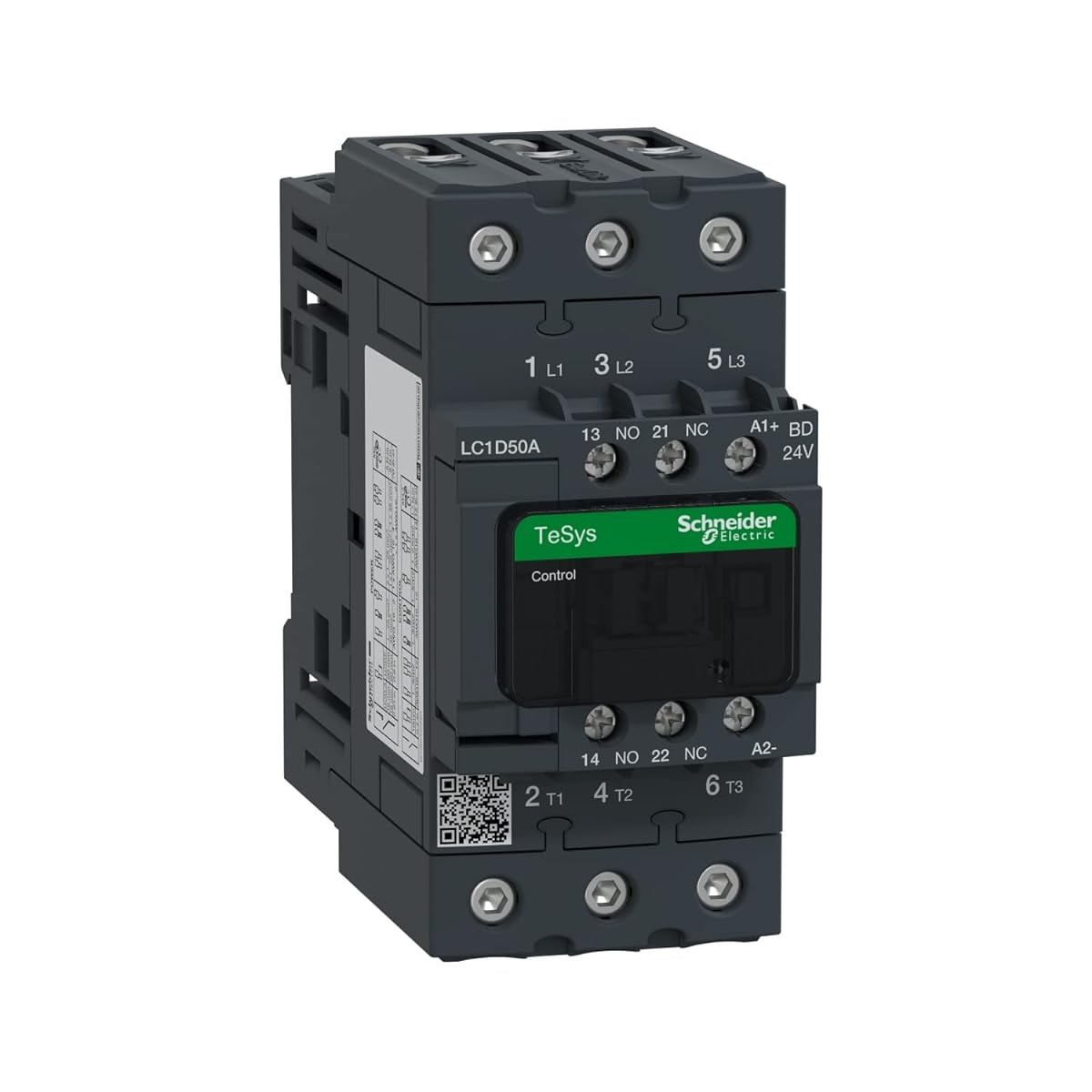

TeSys D IEC Magnetic Contactor - 50A, 24V, 3-Pole, DIN Rail Mount, NO x3 Contacts

Condition: New
Brand: Schneider Electric
MPN: LC1D50ABD
MPN Xref:LC1D50ABD

This IEC Magnetic Contactor is from the TeSys D series. It has an amperage of 50A, voltage of 24V, and is a 3-pole contactor. It is designed for DIN rail mounting and has NO x3 contacts configuration. It is suitable for resistive load and motor control applications. The contactor has a coil voltage of 24V DC and a maximum operating current of 50A. It comes with Everlink Power Connections and has a mounting width of 55mm and height of 122mm. The contactor is UL, CSA, and CE certified.

Catalog Number	LC1D50ABD
Sub Brand	TeSys D;TeSys Deca
Warranty Description	Contractual Warranty:18 months
Country of Origin	FR - France
Made in USA	No
Application	Resistive load;motor control
Coil Power Rating	7.4-7.4 W 20 A Degrees C
Coil Voltage	24 V DC
Connection	Control circuit screw clamp terminals 2 1-2.5 mm? flexible with cable end;control circuit screw clamp terminals 1 1-4 mm? flexible without cable end;control circuit screw clamp terminals 2 1-4 mm? flexible without cable end;control circuit screw clamp terminals 1 1-4 mm? flexible with cable end;control circuit screw clamp terminals 1 1-4 mm? solid without cable end;control circuit screw clamp terminals 2 1-4 mm? solid without cable end;power circuit screw connection 1 1-35 mm? flexible without cable end;power circuit screw connection 2 1-25 mm? flexible without cable end;power circuit screw connection 1 1-35 mm? flexible with cable end;power circuit screw connection 2 1-25 mm? flexible with cable end;power circuit screw connection 1 1-35 mm? solid without cable end;power circuit screw connection 2 1-25 mm? solid without cable end
Contact Configuration	1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1
Contact Rating	10 A 60 A Degrees C SIGNALLING CIRCUIT-80 A 60 A Degrees C POWER CIRCUIT
Mounting	for DIN rail mounting,
Operating Cycles	25...400 Hz
Special Features	Built-in bidirectional peak limiting diode suppressor
Standard	UL;GOST;DNV;LROS (Lloyds register of shipping);CCC;GL;CSA;RINA;BV;CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508;IEC 60335-1
RoHS URL
UPC	785901562542
Item Type	Contactor
Size	120 MM,122 MM,55 MM
Operating Temperature	-40-70 A Degrees C AT UC,-5-60 A Degrees C
Wattage	3.7 W AC-3-9.6 W AC-1
Gross Weight	2.21 lbs
Item	IEC Magnetic Contactor
Full Load Amps-Resistive	80 A
Coil Volts	24 V DC
HP @ 1 Phase - 120V	3 hp
HP @ 3 Phase - 208V	15 hp
HP @ 3 Phase - 480V	40 hp
Aux. Contact Configuration	1NO/1NC
Height	122 mm
Depth	4.61 in
Standards	CE, CSA, UL
Full Load Amps-Inductive	50 A
Number of Poles	3
Reversing	No
HP @ 1 Phase - 240V	7 1/2 hp
HP @ 3 Phase - 240V	15 hp
HP @ 3 Phase - 575V	40 hp
Hz	50/60
Width	55mm
Includes	Everlink Power Connections
Frame / Series / Class / Code	TeSys
ECCN	EAR99
UNSPSC	39121529
Series	TeSys D
3-Phase HP Rating (Max.)	40 hp
Contact Operation	3NO
Contactor Type	IEC
Max. Inductive Amps (AC3)	50A
Max. Resistive Amps (AC1)	80A
Single-Phase HP Rating (Max.)	7-1/2 hp
Range Of Product	TeSys D || TeSys Deca
Contactor Application	resistive load || motor control
Product Or Component Type	contactor
Range	TeSys || TeSys Deca
Utilisation Category	AC-4 || AC-1 || AC-3 || AC-3e
Poles Description	3P
Device Short Name	LC1D
Warranty	18 months
Product Certifications	UL || GOST || DNV || LROS (Lloyds register of shipping) || CCC || GL || CSA || RINA || BV
Non-Overlap Time	1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
Minimum Switching Current	5 mA signalling circuit
Power Dissipation Per Pole	3.7 W AC-3 || 9.6 W AC-1 || 3.7 W AC-3e
Average Impedance	1.5 mOhm - Ith 80 A 50 Hz power circuit
Auxiliary Contact Composition	1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current	10 A 60 ?C signalling circuit || 80 A 60 ?C power circuit
Control Circuit Voltage Limits	0.1...0.3 Uc -40-70 ?C drop-out DC || 0.75...1.25 Uc -40-60 ?C operational DC || 1...1.25 Uc 60-70 ?C operational DC
Mounting Support	plate || rail
Contact Compatibility	M4
Control Circuit Type	DC standard
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Hold-In Power Consumption In W	7.4-7.4 W 20 ?C
Insulation Resistance	> 10 MOhm signalling circuit
Rated Breaking Capacity	900 A 440 V power circuit IEC 60947
Irms Rated Making Capacity	140 A AC signalling circuit IEC 60947-5-1 || 250 A DC signalling circuit IEC 60947-5-1 || 900 A 440 V power circuit IEC 60947
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Pole Contact Composition	3 NO
Coil Technology	built-in bidirectional peak limiting diode suppressor
Time Constant	34 ms
Minimum Switching Voltage	17 V signalling circuit
Maximum Operating Rate	3600 cyc/h 60 ?C
Tightening Torque	control circuit 1.7 N.m screw clamp terminals flat ? 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 8 N.m EverLink BTR screw connectors 25-35 mm? hexagonal 4 mm || power circuit 5 N.m EverLink BTR screw connectors 1-25 mm? hexagonal 4 mm || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 2.5 N.m screw clamp terminals pozidriv No 2
Mechanical Durability	10 Mcycles
Inrush Power In W	19-19 W 20 ?C)
Auxiliary Contacts Type	mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
Compatibility Code	LC1D
Operating Altitude	0...9842.52 ft (0...3000 m)
Overvoltage Category	III
Maximum Horse Power Rating	3 hp 115 V at AC 50/60 Hz for 1 phase || 7.5 hp 230/240 V at AC 50/60 Hz for 1 phase || 15 hp 200/208 V at AC 50/60 Hz for 3 phase || 15 hp 230/240 V at AC 50/60 Hz for 3 phase || 40 hp 460/480 V at AC 50/60 Hz for 3 phase || 40 hp 575/600 V at AC 50/60 Hz for 3 phase
Motor Power Kw	15 kW 220...230 V AC 50/60 Hz AC-3) || 22 kW 380...400 V AC 50/60 Hz AC-3) || 30 kW 500 V AC 50/60 Hz AC-3) || 33 kW 660...690 V AC 50/60 Hz AC-3) || 25 kW 415 V AC 50/60 Hz AC-3) || 30 kW 440 V AC 50/60 Hz AC-3) || 11 kW 400 V AC 50/60 Hz AC-4) || 15 kW 220...230 V AC 50/60 Hz AC-3e) || 22 kW 380...400 V AC 50/60 Hz AC-3e) || 30 kW 500 V AC 50/60 Hz AC-3e) || 33 kW 660...690 V AC 50/60 Hz AC-3e) || 25 kW 415 V AC 50/60 Hz AC-3e) || 30 kW 440 V AC 50/60 Hz AC-3e)
[Ui] Rated Insulation Voltage	power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL || power circuit 690 V IEC 60947-4-1
Protective Cover	with
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1503009EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals including	Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1503009EN
Eu Rohs Directive	Compliant
Mechanical Robustness	vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed15 Gn for 11 ms || shocks contactor open10 Gn for 11 ms
Climatic Withstand	IACS E10 || IEC 60947-1 Annex Q category D
Net Weight	0.93 kg
Ambient Air Temperature For Storage	-60-80 ?C
Fire Resistance	850 ?C IEC 60695-2-1
SKU	ZO-G2685112
Current Stock	57
Mpn	LC1D50ABD
SubCategory	Electrical
International Shipping	No
Color	Black/White
Amperage	50A
Voltage	24V
Poles	3
Mounting Type	Din Rail
Upc	785901562542
Gtin	785901562542
Type of contactor	3-pole
Contacts configuration	NO x3
Integrated auxiliary contacts	NO + NC
Control voltage	24V DC
Max. operating current	50A
Contactor series	TeSys D
Leads	screw terminals
Operating temperature	-25...55?C
Insulation voltage	690V
Switching capacity	22kW
Action	Non-Reversing
HP @ 1 Phase - 230V	7-1/2
Enclosure NEMA Rating	No Enclosure
Auxiliary Contact Form	1NC/1NO
Country of Origin (subject to change)	France
