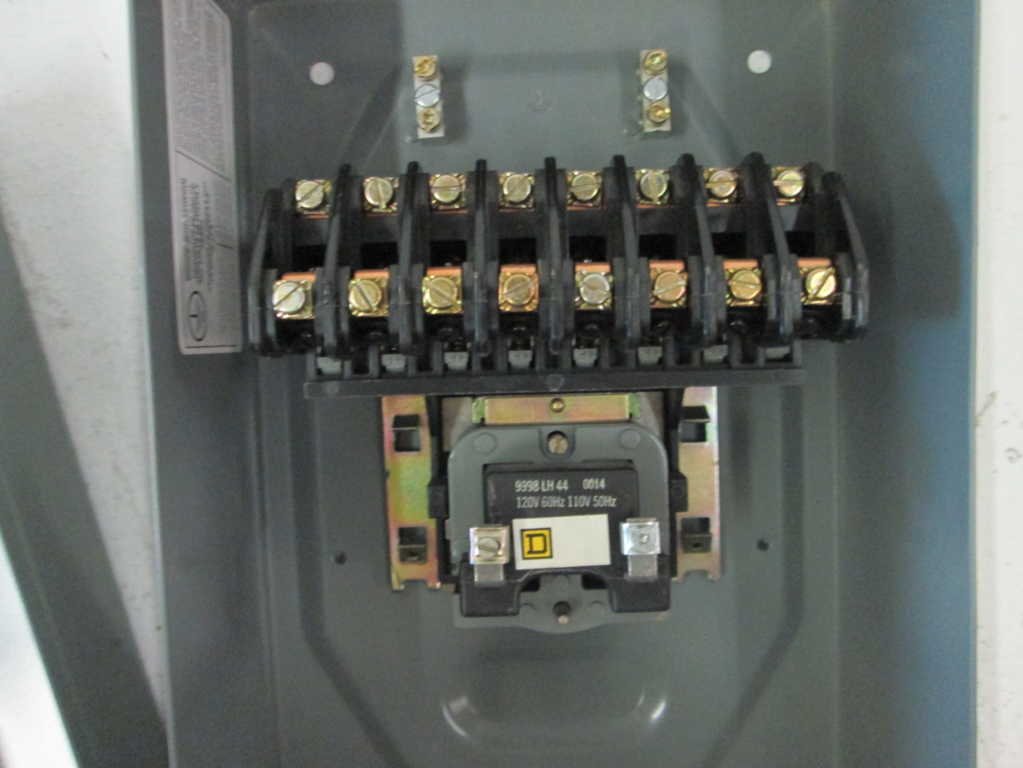

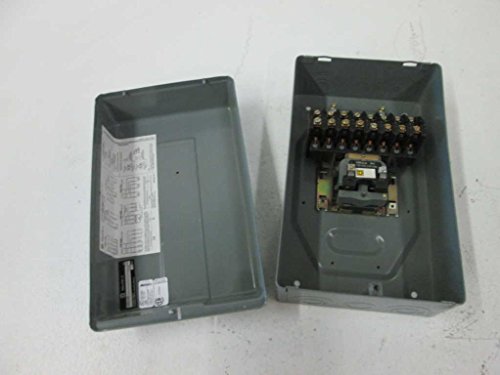

Electrically Held Lighting Contactor
Electrically Held Lighting Contactor
Regular price
$206.72 USD
Regular price
Sale price
$206.72 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
Condition: New
Brand: Square D
MPN: 8903LG80V02
MPN Xref:8903LG80V02
This electrically held lighting contactor is a high-quality product designed for applications in the electrical industry. It has a contact configuration of 8NO with a contact rating of 20-20 A TUNGSTEN-30-30 A FLUORESCENT. The contactor is UL listed and CSA approved. It is made in Mexico and has a warranty period of 18 months. The dimensions of the contactor are 12.69 in H x 7.81 in W x 6.03 in D.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: Square D
MPN: 8903LG80V02
MPN Xref:8903LG80V02
This electrically held lighting contactor is a high-quality product designed for applications in the electrical industry. It has a contact configuration of 8NO with a contact rating of 20-20 A TUNGSTEN-30-30 A FLUORESCENT. The contactor is UL listed and CSA approved. It is made in Mexico and has a warranty period of 18 months. The dimensions of the contactor are 12.69 in H x 7.81 in W x 6.03 in D.
| Catalog Number | 8903LG80V02 |
| Manufacturer | Schneider Electric |
| Sub Brand | 8903L |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| GTIN | 00785901851516 |
| Application | ELECTRICALLY HELD |
| Coil Power Rating | 35, 35 VA |
| Coil Voltage | 110 V AC 50 Hz;120 V AC 60 Hz |
| Connection | Screw-clamp terminals |
| Contact Configuration | 8NO |
| Contact Rating | 20-20 A TUNGSTEN-30-30 A FLUORESCENT |
| Indicator | No indicator |
| Number of Poles | 8 |
| Special Features | Separate control circuit |
| Standard | UL LISTED-CSA |
| RoHS URL | |
| UPC | 785901851516 |
| Item Type | Electrically Held Lighting Contactor |
| Size | 6.02 |
| Item | Lighting Magnetic Contactor |
| Coil Volts | 120V AC |
| Contactor Type | Electrically Held |
| Height | 322 mm |
| Depth | 153 mm |
| Standards | CSA, UL |
| Full Load Amps | 30 A |
| Enclosure NEMA Rating | 1 |
| Width | 198 mm |
| Hz | 50/60 |
| Item? | 3KL89 |
| Mfr. Model? | 8903LG80V02 |
| Catalog Page | N/A |
| UNSPSC | 39121529 |
| Product Description | |
| ECCN | EAR99 |
| Range Of Product | 8903L |
| Control Circuit | separate control circuit |
| Product Or Component Type | Electrically Held Lighting Contactor |
| Warranty | 18 months |
| Local Signalling | no indicator |
| Control Type | no control units |
| [Uc] Control Circuit Voltage | 110 V AC 50 Hz || 120 V AC 60 Hz |
| Hold-In Power Consumption In Va | 35-35 VA 60 Hz || 35-35 VA 50 Hz |
| Electrical Connection | screw-clamp terminals |
| Line Rated Current | 20-20 A tungsten || 30-30 A fluorescent |
| Net Weight | 4.48 kg |
| Inrush Power In Va | 180-180 VA 60 Hz || 170-170 VA 50 Hz |
| Poles Description | 8P 8 NO |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407018EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Halogen Content Performance | Halogen free plastic parts product |
| Reach Free Of Svhc | Yes |
| Product Certifications | UL Listed || CSA |
| Nema Degree Of Protection | NEMA 1 painted sheet steel surface |
| Dimensions | 12.69 in H x 7.81 in W x 6.03 in D, 7.81 in W x 6.03 in D x 12.69 in H |
| Enclosure Type | NEMA 1 |
| Frequency Rating | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts | 8NO |
| Series | 8903 |
| Type | Electrically Held Multi-Pole, Type L Electrically Held Multi-Pole |
| Connection type | Screw Clamp |
| Mounting type | Surface |
| Amperage | 30A |
| Voltage | 120V |
| Poles | 8 |
| Mounting Type | Surface |
| Nema Rating | Nema 1 |
| Mpn | 8903LG80V02 |
| Upc | 785901851516 |
| Gtin | 785901851516 |
| Part Number | 8903LG80V02 |
| Sub-Category | Contactor |
| Family | Class 8903 |
| Phase | 3 |
| Coil Voltage Min | 110 |
| Coil Voltage Max | 120 |
| Country of Origin (subject to change) | Mexico |
