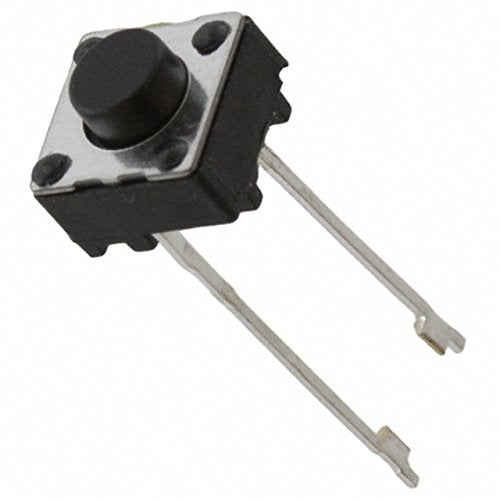

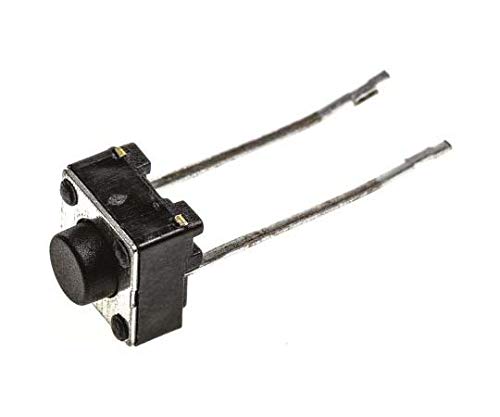

Round Tactile Switch SPST-NO 0.05A 24V

Condition: New
Brand: TE Connectivity ALCOSWITCH Switches
MPN: FSM4JRT
MPN Xref:FSM4JRT, 7182415P, 7182415, E5338527, 70286937, 450-2038-1-ND, AMP4-1437565-0, 14H0928, 506-FSM4JRT

This is a round switch with a single pole and a single throw. It has a tactile feel and a contact current rating of 50. The switch is made of polyamide and nylon and has an actuator profile of extended. It is suitable for through hole mounting and has a low profile design.

Category	Switches
Series	FSMJRT
Package	Cut Tape (CT)
Product Status	Active
Circuit	SPST-NO
Switch Function	OFF - (ON)
Contact Rating @ Voltage	0.05A @ 24VDC
Actuator Type	Standard
Mounting Type	Through Hole
Actuator Height off PCB, Vertical	5.00mm
Actuator Length, Right Angle	-
Actuator Orientation	Top Actuated
Termination Style	PC Pin
Outline	6.00mm x 6.00mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Operating Force	160gf
Ingress Protection	-
Features	-
Operating Temperature	-35?C ~ 105?C
Actuator Material	Polyacetal Resin
Switch Travel	0.25mm
Mechanical Life	100,000 Cycles
Base Product Number	FSM4
Manufacturer Product Number	FSM4JRT
Description	SWITCH TACTILE SPST-NO 0.05A 24V
Manufacturer Standard Lead Time	22 Weeks
Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole
Product Categories	Switches
RoHs Status	Green
In-stock	3126
Voltage Rating DC	24 V
Contact Form	SPST-NO
Mounting Style	Through Hole
Part # Aliases	4-1437565-0
Actuator Height	5 mm
Actuator Operating Angle	Top Actuated
Alternate Mfr Part Number	7182415
Contact Rating	0.05 A
Current Rating	50 mA
Family Name	Alcoswitch Family
Operation	Off-Momentary
Packaging	Cut Tape
Termination	PCB Pins
Type	Tactile
Voltage Rating	24 V
Actuator Style	Round
Operating Function	NO
Contact Base Material	Copper Alloy
Switch Contact Plating Material	Silver
Dust Proof	No
Illuminated	No
Leg Style	Straight
Product Type	Switch
Snap Action	Without
Tactile	Yes
Support Bracket	Without
Configuration (Pole-Throw)	Single Pole - Single Throw
Number of Actuators	1
Ganged	With
ESD Grounding Terminal	Without
Tactile Feel	With
Actuator Profile	Extended
Bushing Style	Unthreaded
Case Material	Polyamide
Actuator Color	Black
Actuator Force : 225 g [ 7.943 oz	225 g [ 7.943 oz ]
Case Color	Black
Cover Material	Steel
Contact Current Rating	50
Termination Type	Printed Circuit Board
Mounting Angle	Vertical
Low Profile	With
Process Sealed	No
Switch Height : 5 mm [ .196 in	5 mm [ .196 in ]
Button Width : 3.5 mm [ .138 in	3.5 mm [ .138 in ]
Actuator Length : 1.4 mm [ .055 in	1.4 mm [ .055 in ]
Temperature Rating	Standard
Packaging Method	Radial Tape
Comment	(On) indicates momentary position.
