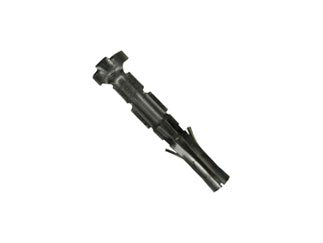

Contact Connector - Wire-to-Wire - Straight Contact - Crimp Termination

Condition: New
Brand: TE Connectivity
MPN: 770529-1
MPN Xref:770529-1, A25511CT-ND, A25511TR-ND, AMP770529-1, 7705291, 571-7705291, 34B1837

This contact connector is a wire-to-wire type with a maximum contact current rating of 13A. It features a straight contact orientation and crimp termination for easy installation. The contact is made of brass with pre-tin plating for optimal performance. It is suitable for power circuit applications and can accept wire insulation diameter up to 4.06mm. The connector is available in a reel packaging with a quantity of 3750.

Category	Connectors, Interconnects
Series	Commercial .093" Pin and Socket
Package	Tape & Reel (TR)
Part Status	Active
Type	-
Pin or Socket	Socket
Contact Termination	Crimp
Wire Gauge	14-20 AWG
Contact Finish	Tin
Contact Finish Thickness	-
Base Product Number	770529
Categories	Connectors, Interconnects
Contact Finish	Tin
Contact Finish Thickness	-
Contact Termination	Crimp
Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Manufacturer Part Number	770529-1
Manufacturer Standard Lead Time	9 Weeks
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Packaging	Reel
Pin or Socket	Socket
Series	Commercial .093" Pin and Socket
Standard Package	3,750
Type	-
Wire Gauge	14-20 AWG
Product Type	Contact
Operating Voltage	250, 600
Wire Size	.52 ? 2.08
Connector System	Wire-to-Wire
Connector	Wire & Cable
Contact Current Rating (Max)	13
Contact Type	Socket
Contact Retention Within Housing	With
Contact Base Material	Brass
Contact Mating Area Plating Material	Pre-Tin
Contact Termination Area Plating Material	Pre-Tin
Wire Contact Termination Area Plating Material	Pre-Tin
Contact Orientation	Straight
Termination Type	Crimp
Connector Mounting Type	Cable Mount (Free-Hanging)
Wire Insulation Support	Without
Contact Retention Type Within Housing	Locking Lance
Mating Pin Diameter	2.36 mm [ .093 in ]
Accepts Wire Insulation Diameter Range	4.06 mm [ .16 in ]
Operating Temperature Range	-55 ? 105 ?C [ -67 ? 221 ?F ]
Circuit Application	Power
For Multiple Crimp	No
Glow Wire Rating	Standard Part - Not Glow Wire
Packaging Method	Reel
Packaging Quantity	3750
For Use With	Pin
Wire Type	Stranded
Wire/Cable Type	Discrete Wire
Country of Origin (subject to change)	United States
