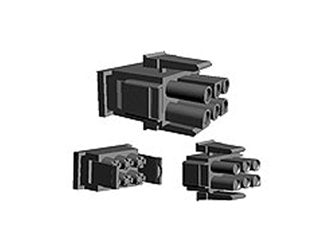

Universal MATE-N-LOK II Plug Housing Kit

Condition: New
Brand: TE Connectivity
MPN: 770022-1
MPN Xref:770022-1, 70087359, 92F9082, TYCO-0100673, AMP770022-1, A14245-ND, 838760, 571-7700221, 7700221

This Universal MATE-N-LOK II Plug Housing Kit is a 12-position connector with contacts not included. It has a crimp termination method to wire and a white housing color. The connector is RoHS and ELV compliant with a voltage rating of 600V. It is ideal for wire-to-wire applications in power and signal circuits.

Part Status	Active
Connector Type	Plug
Contact Type	Male or Female
Number of Positions	12
Row Spacing	0.250" (6.35mm)
Mounting Type	Cable Mount
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	White
Features	-
Note	Contacts Not Included
Number of Rows	3
Product Type	Housing
Housing Type	Plug
Connector System	Wire-to-Wire
Centerline (Pitch)	6.35 mm [ .25 in ]
Assembly or Kit	Kit
Sealable	No
Connector	Wire & Cable
Row-to-Row Spacing	.25 mm [ 6.35 in ]
Operating Voltage	600
Contact Retention	Without
Multiple Contact Types	Without
Contact Layout	Matrix
Termination Method to Wire	Crimp
Connector Mounting Type	Cable Mount (Free-Hanging)
UL Flammability Rating	UL 94V-0
Housing Color	White
Housing Material	Nylon
Length	26.67
Width	22.99
Operating Temperature Range	-55 ? 120 ?C [ -67 ? 248 ?F ]
Circuit Application	Power & Signal
Assembly Integration Feature	Without
Glow Wire Rating	Standard Part - Not Glow Wire
VDE Tested	Yes
CSA File Number	LR7189
UL Rating	Recognized
Agency/Standard	CSA, UL
Agency/Standard Number	E28476
CSA Rating	Certified
Packaging Method	Package
Packaging Quantity	1
For Use With	Standard Universal MATE-N-LOK Connectors
Gender	Male
Series	Universal MATE-N-LOK II Series
Number Of Contacts	12
Number Of Rows	3
Body Orientation	Straight
Pitch	6.35 mm (0.250")
Stock
Category	Connectors, Interconnects
Package	Bulk
Product Status	Active
Base Product Number	770022
ECCN	EAR99
Country of Origin	MX - Mexico
Agency Approvals	CSA ; UL ; VDE
Alternate Mfr Part Number	770022-1
Angle	Straight
Centerline	0.25
Contact Diameter	0.084 in.
Current Rating	31 A
Family Name	Universal MATE-N-LOK Family
Lock Type	Positive Lock
Number of Circuits	12
Number of Contacts	12
Overall Length	0.905 "
Pin Spacing	0.25 in
Primary Type	Soft Shell
Product Header	Universal MATE-N-LOK™ II Plug Housing Kit
Standards	RoHS compliant, ELV compliant
Type	Plug
Voltage Rating	600 V
Country of Origin (subject to change)	United States
