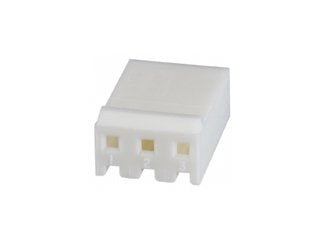

Wire-to-Board Connector, Female Socket, 3 Position, 3.96mm Pitch

Condition: New
Brand: AMP - TE CONNECTIVITY
MPN: 640250-3
MPN Xref:640250-3, 14385019, TYCO-0068000, 6402503, 571-6402503, 74114912214, 6605963, 236152, AMP640250-3

This wire-to-board connector is a female socket with 3 positions. It is crimp terminated and has a pitch of 3.96mm. The connector is made of nylon and has a natural color. It is suitable for power and signal applications.

Connector	Wire & Cable
Type of connector	wire-board
Kind of connector	female
Connector series	SL-156
Contacts pitch	3.96mm
Number of pins	3
Connector variant	w/o contacts
Mechanical mounting	for cable
Connector pinout layout	1x3
Color	-
Max. Single Wire Size	18 AWG
Min. Single Wire Size	30 AWG
Height	6.35 mm
Length	0.465 in
Item	Connector
Max. Voltage	250V AC
Application	Power, Signal
Standards	UL 94V-0 Flammability Rating, RoHS Compliant, ELV Compliant
For Use With	SL .156 Contacts
Material	Nylon
Terminal Type	Crimp
Connector Type	Receptacle
Max. Temp.	105?C
Hole Center to Center	3.96 mm
Contact Type	3
Number of Contacts	3
Connector Terminates To	Wire & Cable
Flammability Rating	UL 94 V-0
Current Rating	6.5 A
Number of Rows	1
Package Quantity	1
Agency Approvals	CSA ; UL
Alternate Mfr Part Number	640250-3
Angle	Straight
Cable Exit Angle	180 Degrees
Housing Material	Nylon - GF
Mating Connector Lock Type	Locking Ramp
Mating Type	Receptacle
Number of Positions	3
Overall Length	0.465 "
Pin Spacing	0.156 in
Pitch	-
Primary Type	Soft Shell
Product Header	SL-156 Receptacle Housing
Series	Bulk
Termination	Crimp
Type	Receptacle
Wire Termination Type	Crimp
Category	Connectors, Interconnects
Package	Active
Part Status	Receptacle
Row Spacing	Free Hanging (In-Line)
Mounting Type	Crimp
Contact Termination	Locking Ramp
Fastening Type	Natural
Features	Contacts Not Included
Note	1
Connector System	Wire-to-Board
Centerline (Pitch)	3.96 mm [ .156 in ]
Termination Method to Wire	Crimp
Sealable	No
Contact Current Rating (Max)	6.5
PCB Mount Retention	Without
Panel Mount Feature	Without
PCB Mount Alignment	Without
Mating Alignment	Without
Mating Alignment Type	Keyed
Mating Retention	With
Mating Retention Type	Locking Ramp
Connector Mounting Type	Cable Mount (Free-Hanging)
Housing Color	Natural
Wire Size	30 ? 18
Connector Height	6.35
Operating Temperature Range	-55 ? 105 ?C [ -67 ? 221 ?F ]
Circuit Application	Power & Signal
UL Flammability Rating	UL 94V-0
Packaging Method	Bag/Box
Packaging Quantity	500
