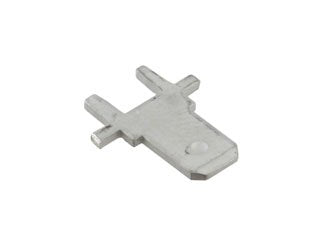

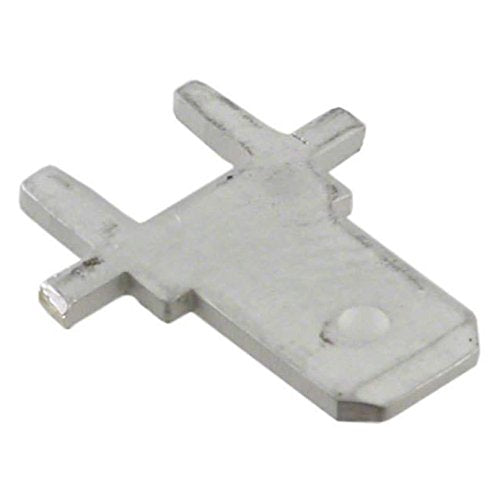

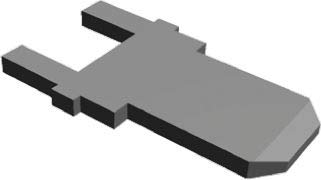

Male Quick Connect Solder Connector
Male Quick Connect Solder Connector
Regular price
$0.01 USD
Regular price
Sale price
$0.01 USD
Unit price
/
per
Shipping calculated at checkout.
95 in stock
Couldn't load pickup availability
Condition: New
Brand: TE Connectivity AMP Connectors
MPN: 63525-1
MPN Xref:63525-1, 1846704, 7197031, TYCO-0125502, A24735CT-ND, 86C7737, 635251, A24735TR-ND, 571-635251
This product is a male quick connect solder connector with a tab width of 0.187" (4.75mm) and a tab thickness of 0.032" (0.81mm). It is non-insulated and terminates to a printed circuit board through hole.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: TE Connectivity AMP Connectors
MPN: 63525-1
MPN Xref:63525-1, 1846704, 7197031, TYCO-0125502, A24735CT-ND, 86C7737, 635251, A24735TR-ND, 571-635251
This product is a male quick connect solder connector with a tab width of 0.187" (4.75mm) and a tab thickness of 0.032" (0.81mm). It is non-insulated and terminates to a printed circuit board through hole.
| Manufacturer Product Number | 63525-1 |
| Description | CONN QC TAB 0.187 SOLDER |
| Manufacturer Standard Lead Time | 14 Weeks |
| Detailed Description | 0.187" (4.75mm) Quick Connect Male Solder Connector Non-Insulated |
| Category | Connectors, Interconnects |
| Series | Faston |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Terminal Type | Tab |
| Gender | Male |
| Tab Width | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) |
| Tab Length | - |
| Length - Overall | 0.487" (12.37mm) |
| Termination | Solder |
| Wire Gauge | - |
| Insulation | Non-Insulated |
| Mounting Type | Through Hole |
| Features | - |
| Color | - |
| Contact Material | Brass |
| Contact Finish | Tin |
| Insulation Diameter | - |
| Base Product Number | 63525 |
| Terminal | Tab |
| PCB Thickness (Recommended) | 3.18 mm [ .125 in ] |
| Mating Tab Width | 4.75 mm [ .187 in ] |
| Mating Tab Thickness | .81 mm [ .032 in ] |
| Terminates To | Printed Circuit Board |
| Stud Hole | No |
| Terminal Angle | Straight |
| Plating Material | Tin |
| Underplating Material | Brass |
| Terminal Size | 4.75 |
| Terminal Orientation | Straight |
| Contact Plating Material | Tin |
| Termination Method | Through Hole |
| Wire Insulation Support | With |
| PCB Hole Diameter | 1.4 mm [ .055 in ] |
| Height Above PC Board | 9.19 mm [ .366 in ] |
| Receptacle Terminal Stock Thickness | .81 mm [ .032 in ] |
| Extension Below Board | 3.18 mm [ .125 in ] |
| Operating Temperature Range | -30 ? 110 ?C [ -22 ? 230 ?F ] |
| UL Rating | Recognized |
| CSA Certified | Yes |
| Packaging Method | Reel |
| Packaging Quantity | 10000 |
| Alternate Mfr Part Number | 7197031 |
| Angle | Straight |
| Insulation Type | Non-Insulated |
| Type | Male Tab Quick Disconnect |
