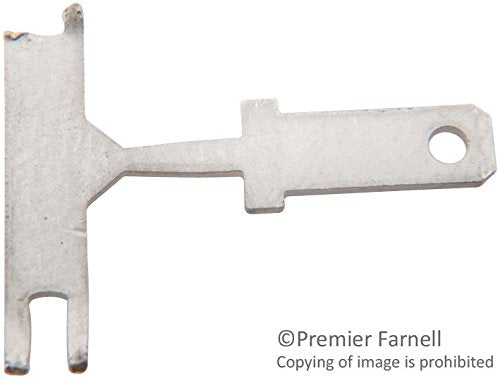

CONN QC TAB 0.110 SOLDER

Condition: New
Brand: AMP - TE CONNECTIVITY
MPN: 62395-1
MPN Xref:62395-1, R1112917, TYCO-0216817, 571-623951, TYCO-0126281, 74C6121, 2293312, A24747CT-ND, AMP62395-1

0.110" (2.79mm) Quick Connect Male Solder Connector Non-Insulated

Terminal	Tab
Terminal Type	Tab
PCB Thickness (Recommended)	1.57 mm [ .062 in ]
Mating Tab Width	2.79 mm [ .11 in ]
Mating Tab Thickness	.51 mm [ .02 in ]
FASTON	Yes
Terminates To	Printed Circuit Board
Stud Hole	No
Terminal Angle	Straight
Plating Material	Tin
Underplating Material	Brass
Terminal Size	2.8
Terminal Orientation	Straight
Contact Plating Material	Tin
Termination Method	Through Hole
Wire Insulation Support	With
PCB Hole Diameter	1.17 mm [ .046 in ]
Height Above PC Board	8.38 mm [ .334 in ]
Receptacle Terminal Stock Thickness	.51 mm [ .02 in ]
Extension Below Board	4.19 mm [ .165 in ]
Operating Temperature Range	-30 ? 110 ?C [ -22 ? 230 ?F ]
UL Rating	Recognized
CSA Certified	Yes
Packaging Method	Reel
Packaging Quantity	10000
Comment	Insertion machine available.
Type of terminal	flat
Width	2.8mm
Thickness	0.5mm
Kind of terminal	male
Electrical mounting	THT
Contact material	brass
Contact plating	tinned
Overall length	12.45mm
Spatial orientation	straight
Kind of package	reel
Manufacturer series	FASTON
Manufacturer Product Number	62395-1
Description	CONN QC TAB 0.110 SOLDER
Manufacturer Standard Lead Time	34 Weeks
Detailed Description	0.110" (2.79mm) Quick Connect Male Solder Connector Non-Insulated
Category	Connectors, Interconnects
Series	Faston
Package	Tape & Reel (TR)
Product Status	Active
Gender	Male
Tab Width	0.110" (2.79mm)
Tab Thickness	0.020" (0.51mm)
Tab Length	0.280" (7.11mm)
Length - Overall	-
Termination	Solder
Wire Gauge	-
Insulation	Non-Insulated
Mounting Type	Through Hole
Features	-
Color	-
Contact Material	Brass
Contact Finish	Tin
Insulation Diameter	-
Base Product Number	62395
Part Status	Active
Country of Origin (subject to change)	United States
