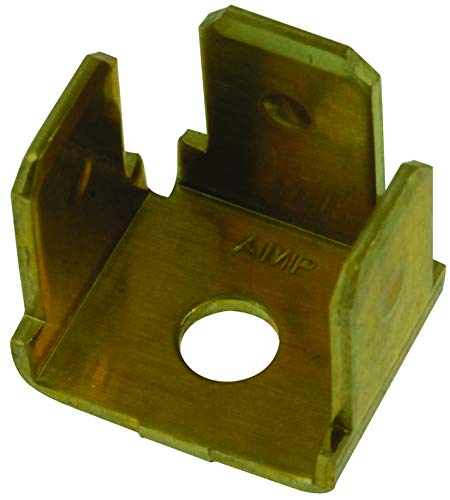

0.250” Male Quick Connect Terminal - Through Hole Mounting

Condition: New
Brand: TE Connectivity
MPN: 62261-1
MPN Xref:62261-1, 622611, 7454808, TYCO-0056758, 7454808P, R1110869, 92B1992, AMP62261-1, A27871-ND

This connector is a 0.250” (6.35mm) male quick connect terminal with a screw, rivet, stud termination method. It is designed for through hole mounting and terminates to a printed circuit board.

Category	Connectors, Interconnects
Series	Faston
Package	-
Part Status	Angled - 90?
Terminal Type	Male
Gender	Male
Tab Width	0.250" (6.35mm)
Tab Thickness	-
Tab Length	-
Length - Overall	-
Termination	-
Wire Gauge	-
Insulation	Non-Insulated
Mounting Type	3 Tabs
Features	-
Color	Brass
Contact Material	-
Contact Finish	-
Manufacturer Product Number	62261-1
Description	CONN QC TAB 0.250
Manufacturer Standard Lead Time	31 Weeks
Detailed Description	0.250" (6.35mm) Quick Connect Male Screw, Rivet, Stud Connector Non-Insulated
Product Status	Active
Insulation Diameter	-
Base Product Number	62261
Alternate Mfr Part Number	62261-1
Terminal	Tab
Mating Tab Width	6.35 mm [ .25 in ]
Mating Tab Thickness	.81 mm [ .032 in ]
Termination Method	Through Hole
Mounting Style	Stud Mount
Terminates To	Printed Circuit Board
Stud Hole	Yes
Terminal Angle	90?
Plating Material	Unplated
Underplating Material	Brass
Terminal Orientation	Flag
Stud Diameter	3.3 mm [ .13 in ]
Receptacle Terminal Stock Thickness	.81 mm [ .032 in ]
Operating Temperature Range	-30 ? 110 ?C [ -22 ? 230 ?F ]
Packaging Method	Bag
Country of Origin (subject to change)	United States
