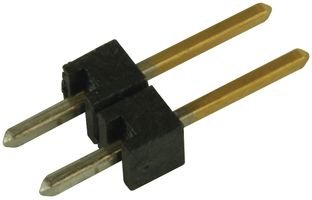

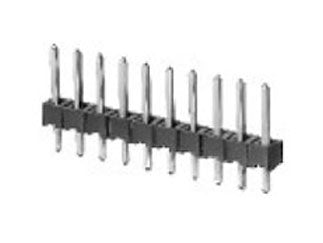

CONN HEADER VERT 2POS 2.54MM

Condition: New
Brand: TE Connectivity
MPN: 5-146281-2
MPN Xref:5-146281-2, 51462812, AMP5-146281-2, 5-146281-2-ND, 571-5-146281-2, 7200803, A121481-ND, 02M0982, 1792060

Connector Header Through Hole 2 position 0.100" (2.54mm), Part Number: 5-146281-2

Manufacturer Product Number	5-146281-2
Description	CONN HEADER VERT 2POS 2.54MM
Manufacturer Standard Lead Time	22 Weeks
Detailed Description	Connector Header Through Hole 2 position 0.100" (2.54mm)
Category	Connectors, Interconnects
Series	Bulk
Package	Active
Product Status	Active
Connector Type	Male Pin
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	1
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Unshrouded
Shrouding	Unshrouded
Mounting Type	Solder
Termination	Solder
Fastening Type	0.230"" (5.84mm)
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.440"" (11.18mm)
Overall Contact Length	0.440" (11.18mm)
Insulation Height	0.090" (2.29mm)
Contact Shape	Gold
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	-
Operating Temperature	-65 to +105 °C
Ingress Protection	-
Material Flammability Rating	Black
Insulation Color	Black
Current Rating (Amps)	-
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	146281
PCB Connector Assembly Type	PCB Mount Header
PCB Mount Orientation	Vertical
Centerline (Pitch)	2.54 mm [ .1 in ]
Connector	Printed Circuit Board
Header Type	Breakaway
Connector Contact Load Condition	Fully Loaded
Contact Base Material	Copper Alloy
PCB Contact Termination Area Plating Material	Tin-Lead
Contact Underplating Material	Nickel
PCB Contact Termination Area Plating Material Finish	Matte
Contact Mating Area Plating Material	Gold
Contact Mating Area Plating Material Thickness	30
Contact Current Rating (Max)	3
Termination Post	3.05 mm [ .12 in ]
Termination Method to Printed Circuit Board	Through Hole - Solder
PCB Mount Retention	Without
Panel Mount Feature	Without
Mating Alignment	Without
Housing Material	LCP (Liquid Crystal Polymer), LCP-GF (Liquid Crystal Polymer)
Housing Color	Black
PCB Thickness (Recommended)	1.6 mm [ .063 in ]
Row-to-Row Spacing	2.54 mm [ .1 in ]
Operating Temperature Range	-65 ? 105
UL Flammability Rating	UL 94V-0
Approved Standards	CSA LR7189, UL E28476
Packaging Method	Carton
Packaging Quantity	500
Applications	-
Categories	Connectors, Interconnects
Connector Type	Header, Breakaway
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30.0?in (0.76?m)
Contact Finish Thickness - Post	100.0?in (2.54?m)
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.120" (3.05mm)
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3A
Fastening Type	Push-Pull
Features	-
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.090" (2.29mm)
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Manufacturer Part Number	5-146281-2
Country of Origin (subject to change)	Mexico
Part Status	Header, Breakaway
Agency Approvals	CSA ; UL
Alternate Mfr Part Number	5-146281-2
Angle	Straight
Color	Black
Contact Plating	Gold
Current Rating	3 A
Family Name	AMPMODU Interconnect System
Number of Contacts	2
Overall Length	0.184 "
Pin Length	0.23 "
Pin Spacing	0.1 in
Pitch	2.54 mm (0.100")
Primary Type	Board Mount
Product Header	Single Row Unshrouded Breakaway Header
Special Features	Breakaway
Type	Breakaway Header
