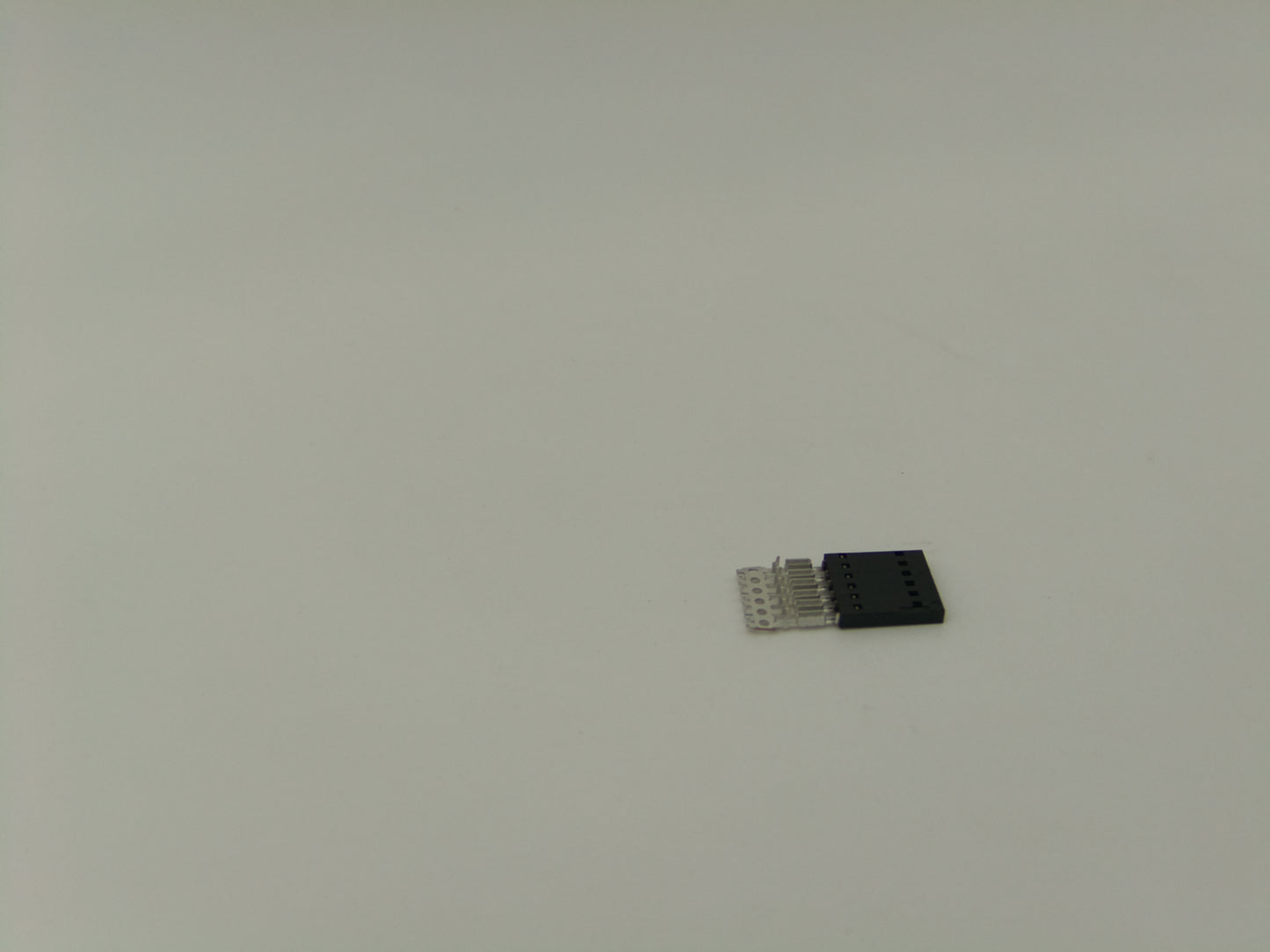

Connector with Housing Receptacle, 6 Positions, 0.100" Pitch, Ribbon Cable Termination

Condition: New
Brand: TE Connectivity AMP Connectors
MPN: 5-103975-5
MPN Xref:5-103975-5

This connector is a housing receptacle with 6 positions and a pitch of 0.100" (2.54mm). It is designed for free hanging (in-line) mounting and termination with ribbon cable using IDC. The connector features a closed end design and gold contact finish. It has a black color housing and is made of thermoplastic material. The wire gauge range is 22-26 AWG. The connector has a length of 60.71mm (2.39in), insulation diameter of 1.37mm (.054in), and a height of 2.49mm (.098in). It has an operating temperature range of -65°C to 105°C and is approved by CSA and UL standards.

Part Number	5-103975-5
Item Package Quantity	1
Batteries Required?	No
ASIN	B00KSQHTVY
Part Status	Active
Connector Type	Housing
Contact Type	Female Socket
Number of Positions	6
Pitch	0.100" (2.54mm)
Row Spacing	-
Mounting Type	Free Hanging (In-Line)
Fastening Type	-
Cable Termination	IDC
Wire Type	Ribbon Cable
Wire Gauge	22-26 AWG
Features	Closed End
Contact Finish	Gold
Contact Finish Thickness	15.0?in (0.38?m)
Color	Black
Number of Rows	1
Centerline (Pitch) : 2.54 mm [ .1 in	2.54 mm [ .1 in ]
Termination Method to Wire & Cable	Crimp, Insulation Displacement Crimp (IDC)
Row-to-Row Spacing : 2.54 mm [ .1 in	2.54 mm [ .1 in ]
Connector & Contact Terminates To	Wire & Cable
Glow Wire Rating	Standard Part - Not Glow Wire
Strain Relief	With
Connector Style	Receptacle
Product Type	Connector
Applied Pressure	Standard
Termination Resistance	15
Insulation Resistance	5000
Dielectric Withstanding Voltage	600 VAC
Operating Voltage	267 V
Contact Base Material	Phosphor Bronze
PCB Contact Termination Area Plating Material	Tin
Contact Current Rating (Max)	3
Contact Layout	Inline
PCB Mount Retention	Without
Panel Mount Feature	Without
Mating Connector Lock	Without
Mating Retention	Without
Mating Alignment	Without
Housing Color	Black
Housing Material	Thermoplastic
Wire Size	26 ? 22
Length : 60.71 mm [ 2.39 in	60.71 mm [ 2.39 in ]
Insulation Diameter : 1.37 mm [ .054 in	1.37 mm [ .054 in ]
Height : 2.49 mm [ .098 in	2.49 mm [ .098 in ]
Operating Temperature Range	-65 ? 105
For Use With	Mates with Headers
Approved Standards	CSA LR7189, UL E28476
