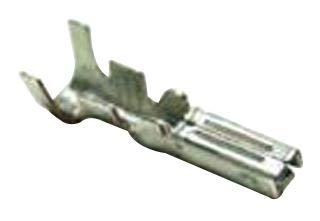

Female Contact Connector for Wire-Wire Connections - Superseal 1.5

Condition: New
Brand: TE Connectivity
MPN: 282403-1
MPN Xref:282403-1, TYCO-0216063, A105165CT-ND, 521595, 2360577, AMP282403-1, 2824031, 282403-1**MULT1, 571-282403-1

This female contact connector is suitable for wire-wire connections. It has an IP67 rating and can handle a maximum current of 14A. The connector series is Superseal 1.5.

Type of connector	wire-wire
Connector	contact
Kind of connector	female
Contact plating	none,
Wire cross-section	0.35...0.5mm
Wire size	22AWG...20AWG
Connector series	Superseal 1.5
Kind of package	cut from reel
Maximum current	14A
Dedicated tool	9-1579007-1,
Wire cross section	0.35...0.5mm
Alternate Mfr Part Number	6805179P
Alternate Package	Reel: 71019203
Contact Plating	Pre-Tin
Current Rating	14 A
Gender	Female
IP Rating	IP67
Primary Type	Contact
Series	Superseal
Type	-
Voltage Rating	24 V
Wire Size	20-22 AWG
Category	Connectors, Interconnects
Package	Tape & Reel (TR)
Part Status	Active
Pin or Socket	Socket
Contact Termination	Crimp
Wire Gauge	20-22 AWG
Contact Finish	Tin
Contact Finish Thickness	-
Base Product Number	282403
Terminal & Splice Style	Receptacle
Mating Tab Width : 1.5 mm [ .059 in	1.5 mm [ .059 in ]
Mating Tab Thickness : .8 mm [ .031 in	.8 mm [ .031 in ]
Terminal Transmits	0 ? 24 A (Low Power)
Sealable	Yes
Primary Locking Feature	Locking Lance
Wire Type	Copper
Receptacle Style	180?
Seal Type	Single Wire Seal (SWS)
Crimp Type	F-Crimp
Typical Current Rating	6
Interface Plating	Tin (Sn)
Contact Termination Area Plating Material	Tin (Sn)
Termination Method	Crimp
Wire Size Search	.35, .4, .5
Wire Insulation Diameter : 1.2 ? 1.6 mm [ .047 ? .063 in	1.2 ? 1.6 mm [ .047 ? .063 in ]
Operating Temperature Range : -40 ? 125 ?C [ -40 ? 125 ?F	-40 ? 125 ?C [ -40 ? 125 ?F ]
Agency/Standard	LV214
Packaging Quantity	4000
Packaging Method	Reel
Customer Preferred Contact	No
