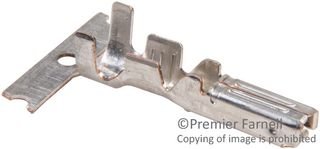

Receptacle for Wire-to-Wire Connections

Condition: New
Brand: TE Connectivity
MPN: 282110-1
MPN Xref:282110-1, AMP282110-1, A105220TR-ND, 571-2821101, 1653834, 2821101, 841029, 282110-1**MULT1, A105220CT-ND

This terminal & splice style receptacle is suitable for wire-to-wire connections. It has a mating tab width of 1.5mm and a mating tab thickness of 0.8mm.

Type of connector	wire-wire
Connector	contact
Kind of connector	female
Contact plating	tinned
Wire cross-section	0.75...1.5mm
Wire size	20AWG...16AWG
Connector series	Superseal 1.5
Kind of package	reel
Maximum current	14A
Dedicated tool	9-1579007-1,
Alternate Mfr Part Number	6802063
Contact Plating	Tin
Current Rating	14 A
Gender	Female
IP Rating	IP67
Primary Type	Receptacle
Seal Type	Single Wire Seal (SWS)
Temperature Operating Range	-40 – 125 °C[-40 – 257 °F]
Termination	Crimp
Type	-
Voltage Rating	24 V
Wire Insulation Diameter	1.7 – 3.3 mm[.067 – .13 in]
Wire Size	15 AWG ; 16 AWG ; 17 AWG
Wire Type	Copper
	Connectors, Interconnects
Series	Superseal
Package	Tape & Reel (TR)
Product Status	Active
Pin or Socket	Socket
Contact Termination	Crimp
Wire Gauge	15-18 AWG
Contact Finish	Tin
Contact Finish Thickness	-
Base Product Number	282110
Terminal & Splice Style	Receptacle
Mating Tab Width : 1.5 mm [ .059 in	1.5 mm [ .059 in ]
Mating Tab Thickness : .8 mm [ .031 in	.8 mm [ .031 in ]
Terminal Transmits	0 ? 24 A (Low Power)
Sealable	Yes
Primary Locking Feature	Locking Lance
Receptacle Style	180?
Crimp Type	F-Crimp
Typical Current Rating	14
Interface Plating	Tin (Sn)
Contact Termination Area Plating Material	Tin (Sn)
Termination Method	Crimp
Wire Size Search	.75, .85, 1, 1.25, 1.3, 1.5
Wire Insulation Diameter : 1.7 ? 3.3 mm [ .067 ? .13 in	1.7 ? 3.3 mm [ .067 ? .13 in ]
Operating Temperature Range : -40 ? 125 ?C [ -40 ? 125 ?F	-40 ? 125 ?C [ -40 ? 125 ?F ]
Agency/Standard	LV214
Packaging Quantity	4000
Packaging Method	Reel
Customer Preferred Contact	No
