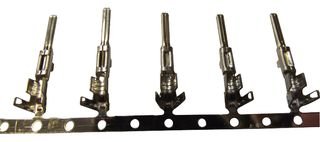

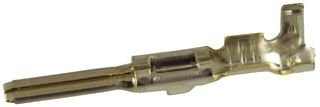

16-20AWG Crimp Tab Connector

16-20AWG Crimp Tab Connector

Regular price $0.06 USD
Regular price Sale price $0.06 USD
Sale Sold out
Shipping calculated at checkout.

42 in stock

Condition: New
MPN: 173645-1
MPN Xref:173645-1, A104961TR-ND, TYCO-0216356, 11C1614, 6393068, 571-173645-1, 1736451, AMP173645-1, 1863446

This connector is a tab contact designed for crimp termination with 16-20 AWG wire size. It has a mating tab width of 1.8mm and a mating tab thickness of 0.64mm. The connector can transmit up to 24A of current and has a clean body locking feature. It is sealed and has a tin plating for interface and contact termination area. It operates in a temperature range of -30 to 105°C and comes in a reel packaging with a quantity of 3000. It is suitable for automotive applications.
Manufacturer Product Number 173645-1
Description CONN TAB 16-20AWG CRIMP TIN
Manufacturer Standard Lead Time 15 Weeks
Detailed Description Tab Contact Tin 16-20 AWG Crimp
Category Connectors, Interconnects
Series Multi-Lock
Package Tape & Reel (TR)
Product Status Active
Type -
Pin or Socket Tab
Contact Termination Crimp
Wire Gauge 16-20 AWG
Contact Finish Tin
Contact Finish Thickness -
Base Product Number 173645
Temperature Operating Range -30 to +105 °C
Wire Insulation Diameter 2 ? 2.6 mm[.079 ? .102 in]
Wire Size .5 ? 1.25
Alternate Mfr Part Number 7121902
Contact Material Brass
Contact Resistance 10 mOhms
Contact Type Tab
For Use With Automotive Connector
Gender Male
Maximum Operating Temperature 105 °C
Minimum Operating Temperature -30 °C
Termination Crimp
Terminal Tab
Mating Tab Width 1.8 mm [ .071 in ]
Mating Tab Thickness .64 mm [ .025 in ]
Terminal Transmits 0 ? 24 A (Low Power)
Sealable No
Primary Locking Feature Clean Body
Crimp Type F-Crimp
Typical Current Rating 14
Interface Plating Tin (Sn)
Contact Termination Area Plating Material Tin (Sn)
Termination Method Crimp
Wire Size Search .5, .6, .75, .85, 1, 1.25
Operating Temperature Range -30 ? 105 ?C [ -22 ? 221 ?F ]
Packaging Quantity 3000
Packaging Method Reel
