0.250" Quick Connect Female and Male Crimp Connector 16-22 AWG

Condition: New
Brand: AMP - TE CONNECTIVITY
MPN: 160834-2
MPN Xref:160834-2, 1608342, 25C1643, 2101900, 82X7430, 362711, AMP160834-2, 4575362, TYCO-0023511

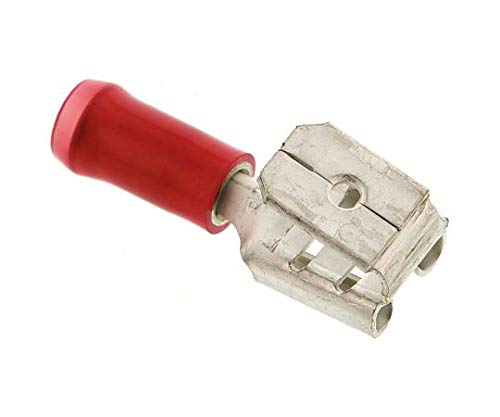

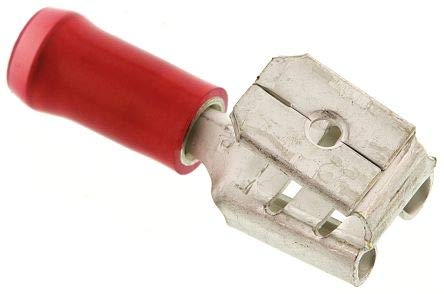

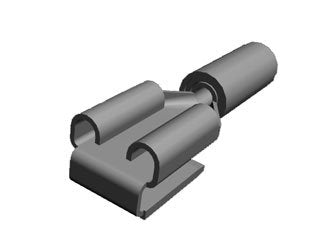

This is a 0.250" (6.35mm) Quick Connect Female and Male 16-22 AWG Crimp Connector Non-Mating End Insulated terminal. It is made of brass with tin plating and nylon insulation.

Type of terminal	flat
Width	6.3mm
Thickness	0.8mm
Kind of terminal	female/male
Wire cross-section	0.3...1.5mm
Electrical mounting	crimped
Mechanical mounting	for cable
Ferrule variant	insulated,
Contact plating	tinned
Colour	red
Contact material	brass
Spatial orientation	straight
Manufacturer series	FASTON
Manufacturer Product Number	160834-2
Description	CONN QC RCPT/TAB 16-22AWG 0.250
Manufacturer Standard Lead Time	51 Weeks
Detailed Description	0.250" (6.35mm) Quick Connect Female and Male 16-22 AWG Crimp Connector Non-Mating End Insulated
Category	Connectors, Interconnects
Series	Bulk
Package	Active
Product Status	Active
Terminal Type	Tab & Receptacle
Gender	Female, Male
Tab Width	0.250" (6.35mm)
Tab Thickness	0.305" (7.75mm)
Tab Length	0.305" (7.75mm)
Length - Overall	Crimp
Termination	16-22 AWG
Wire Gauge	Non-Mating End Insulated
Insulation	Non-Mating End Insulated
Mounting Type	-
Features	-
Color	Brass
Contact Material	Phosphor Bronze
Contact Finish	Tin
Insulation Diameter	0.140" (3.56mm)
Base Product Number	160834
Part Status	Active
Manufacturer Part No.	160834-2
Alternate Part No.	571-160834-2
Stud/Tab Size	0.25 in x 0.032 in
Product Category	Terminals
Tradename	PIDG FASTON
Product	Faston Terminals
Voltage Rating	300 V
Contact Plating	Tin
Type	Receptacle / Tab Combination
Terminal	Tab & Receptacle
Wire Size	592 ? 3260
Mating Tab Width	6.35 mm [ .25 in ]
Terminates To	Wire & Cable
Insertion Force	Normal
Sealable	No
Insulated	Yes
Wire Stop	No
Connection Capacity	Single
Voltage (Max)	300
Fully Insulated	No
Plating Material	Tin
Insulation Material	Nylon
Terminal Orientation	Piggyback
Contact Base Material	Brass
Crimp Type	Compression
Barrel Type	Closed
Wire Insulation Support	With
Mating Retention Type	Dimple
Mating Tab Thickness	.81 mm [ .032 in ]
Overall Length	23.54 mm [ .927 in ]
Accepts Wire Insulation Diameter Range	3.56 mm [ .14 in ]
Operating Temperature Range	105 ?C [ 221 ?F ]
Packaging Method	Loose Piece
Packaging Quantity	500
Barrel Color	Red
