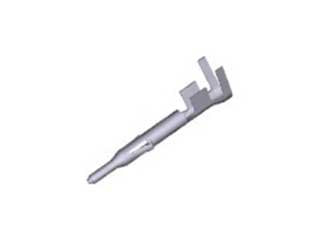

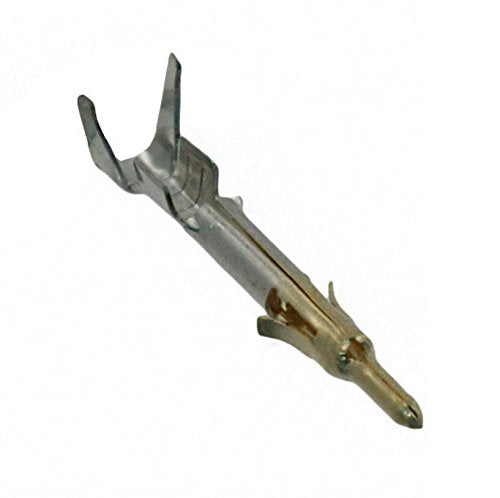

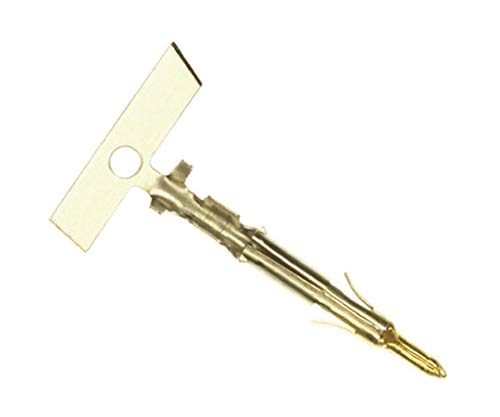

Brass Contact Finish, 30.0 Thickness, Crimp Termination
Brass Contact Finish, 30.0 Thickness, Crimp Termination
Regular price
$0.10 USD
Regular price
Sale price
$0.10 USD
Unit price
/
per
Shipping calculated at checkout.
20 in stock
Couldn't load pickup availability
Condition: New
Brand: AMP - TE CONNECTIVITY
MPN: 1-770987-0
MPN Xref:1-770987-0, 571-1-770987-0, 70086636, AMP1-770987-0, 17709870, 1556875, A32015-ND, 65J9675, 6801389
This contact finish is made with brass material and has a thickness of 30.0. It has a crimp contact termination and is part of the Mini-Universal MATE-N-LOK series. The wire gauge it supports is 18-22 AWG. It is a plug type contact with an operating voltage of 600. The contact current rating is 9.5 and it has a contact retention within housing. It has a mating pin diameter of 1mm and the contact base material is brass. The contact plating is gold and it has a thickness of 30-30 ?in. The contact termination area plating material is tin and has a thickness of 50 ?in. The contact orientation is straight and the termination type is crimp. It is cable mounted and has wire insulation support. The operating temperature range is -55 ? 105?C and it is used for power circuit applications. It is UL recognized and CSA certified. The packaging method is bag and it comes in a quantity of 1000. It is suitable for use with plug or cap housing. The wire type it supports is stranded and it is a wire-to-wire type connector. The contact material is brass and it is selectively gold plated. The wire size is 0.3-0.8mm and it is compatible with the Mini Universal MATE-N-LOK connector series. It comes in a bulk package. The current rating is 7A and the contacts pitch is 4.14mm.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: AMP - TE CONNECTIVITY
MPN: 1-770987-0
MPN Xref:1-770987-0, 571-1-770987-0, 70086636, AMP1-770987-0, 17709870, 1556875, A32015-ND, 65J9675, 6801389
This contact finish is made with brass material and has a thickness of 30.0. It has a crimp contact termination and is part of the Mini-Universal MATE-N-LOK series. The wire gauge it supports is 18-22 AWG. It is a plug type contact with an operating voltage of 600. The contact current rating is 9.5 and it has a contact retention within housing. It has a mating pin diameter of 1mm and the contact base material is brass. The contact plating is gold and it has a thickness of 30-30 ?in. The contact termination area plating material is tin and has a thickness of 50 ?in. The contact orientation is straight and the termination type is crimp. It is cable mounted and has wire insulation support. The operating temperature range is -55 ? 105?C and it is used for power circuit applications. It is UL recognized and CSA certified. The packaging method is bag and it comes in a quantity of 1000. It is suitable for use with plug or cap housing. The wire type it supports is stranded and it is a wire-to-wire type connector. The contact material is brass and it is selectively gold plated. The wire size is 0.3-0.8mm and it is compatible with the Mini Universal MATE-N-LOK connector series. It comes in a bulk package. The current rating is 7A and the contacts pitch is 4.14mm.
Type of connector | wire-wire |
Connector | contact |
Kind of connector | male |
Contact material | brass |
Contact plating | selectively gold plated |
Wire cross-section | 0.3...0.8mm |
Wire size | 22AWG...18AWG |
Connector series | Mini Universal MATE-N-LOK |
Kind of package | bulk |
Electrical mounting | crimped |
Mechanical mounting | for cable |
Current rating | 7A |
Contacts pitch | 4.14mm |
Family Name | Universal MATE-N-LOK Family |
Pitch | 4.14 mm (0.163") |
Primary Type | Soft Shell |
Series | Mini-Universal MATE-N-LOK Series |
Type | Plug |
Country of Origin (subject to change) | United States |
Contact Finish | Gold |
Contact Finish Thickness | 30.0 |
Contact Material | Brass |
Contact Termination | Crimp |
Manufacturer Part Number | 1-770987-0 |
Packaging | Bulk |
Pin or Socket | Pin |
Wire Gauge | 18-22 AWG |
Product Type | Contact |
Operating Voltage | 600 |
Wire Size | .3 ? .9 |
Connector System | Wire-to-Wire |
Contact Current Rating (Max) | 9.5 |
Contact Type | Pin |
Contact Retention Within Housing | With |
Mating Pin Diameter | 1 mm [ .039 in ] |
Contact Base Material | Brass |
Contact Mating Area Plating Material | Gold |
Contact Mating Area Plating Material Thickness | .76 ?m [ 30 ? 30 ?in ] |
Contact Termination Area Plating Material | Tin |
Contact Termination Area Plating Thickness | 1.27 ?m [ 50 ?in ] |
Wire Contact Termination Area Plating Material | Tin |
Wire Contact Termination Area Plating Material Finish | Bright |
Crimp Area Plating Thickness | 1.27 ?m [ 50 ?in ] |
Contact Orientation | Straight |
Contact Underplating Material | Nickel |
Contact Underplating Material Thickness | 1.27 ?m [ 50 ?in ] |
Termination Type | Crimp |
Connector Mounting Type | Cable Mount (Free-Hanging) |
Wire Insulation Support | Without |
Accepts Wire Insulation Diameter Range | 1.5 ? 2.39 mm [ .059 ? .094 in ] |
Operating Temperature Range | -55 ? 105 ?C [ -67 ? 221 ?F ] |
Circuit Application | Power |
For Multiple Crimp | No |
UL File Number | E28476 |
Glow Wire Rating | Standard Part - Not Glow Wire |
UL Rating | Recognized |
CSA File Number | LR 7189 |
Agency/Standard | CSA, UL |
VDE Tested | No |
CSA Rating | Certified |
Packaging Method | Bag |
Packaging Quantity | 1000 |
For Use With | Plug or Cap Housing |
Wire Type | Stranded |
Wire/Cable Type | Discrete Wire |
