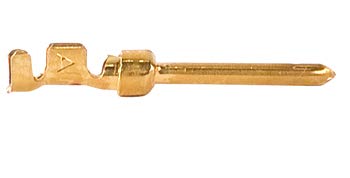

Male Pin Contact for Cable-to-Cable Connection

Male Pin Contact for Cable-to-Cable Connection

Regular price $0.03 USD
Regular price Sale price $0.03 USD
Sale Sold out
Shipping calculated at checkout.

40 in stock

Condition: New
MPN: 1-66506-0
MPN Xref:1-66506-0, 1-66506, 74114902081, 593242, 223167, 1665060, AMP1-66506-0, 446787, 70083287

This is a male pin contact for cable-to-cable connection. It has a gold flash plating over nickel and can accept wire insulation diameters ranging from 1.27 to 1.52 mm. It is suitable for signal circuit applications and has a current rating of 2A.
Country of Origin (subject to change) United States
Contact Type Pin
Contact Size 20 AWG
Contact Base Material Brass
Contact Mating Area Plating Material Gold Flash
Termination Method to Wire Crimp
Connector System Cable-to-Cable
Connector Wire & Cable
PCB Contact Termination Area Plating Material Gold Flash
Contact Underplating Material Nickel
Contact Current Rating (Max) 2
Wire Insulation Support With
Accepts Wire Insulation Diameter Range 1.27 ? 1.52 mm [ .05 ? .06 in ]
Post Diameter 2.16
Wire Size .2 ? .6
Operating Temperature Range -55 ? 105 ?C [ -67 ? 221 ?F ]
Circuit Application Signal
Product Category D-Sub Contacts
Wire Gauge 24-20
Series HDP-20
Contact Gender Pin (Male)
Contact Plating Gold
Contact Material Brass
Manufacturer Part No. 1-66506-0
Alternate Part No. 571-1665060
Termination Style Crimp
Shipping Weight 0.02 pounds
Manufacturer P/N 1-66506-0
Pack Quantity 1
Type of connector circular
Kind of connector male
Contact size 20
Contact plating gold-plated
Wire cross-section 0.2...0.6mm
Wire size 24AWG...20AWG
Connector series AMPLIMITE
Electrical mounting crimped
Angle Straight
Current Rating 2 A
For Use With Amplimite HDP-20, CPC Connectors
Gender Male
Insulation Diameter 0.060 In.
Primary Type Contact
Terminal Style Crimp
