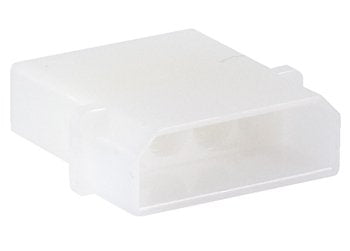

4-Pin Male Pin Receptacle Cap Housing

4-Pin Male Pin Receptacle Cap Housing

Regular price $0.10 USD
Regular price Sale price $0.10 USD
Sale Sold out
Shipping calculated at checkout.

38 in stock

Condition: New
Brand: TE Connectivity
MPN: 1-480426-0
MPN Xref:1-480426-0, 527195, 17353125, E1693369, 14804260, AMP1-480426-0, TYCO-0064295, 6831901, 1002350

This product is a 4-pin male pin receptacle cap housing for wire-to-wire connections in power and signal applications. It has a centerline pitch of 5.08mm and is made of polyamide with a natural color. The housing is rated for operating temperatures from -55 to 105°C and has a UL 94V-2 flammability rating. It is suitable for panel mounting or free-hanging cable installations. The connector is part of the Commercial MATE-N-LOK series and is UL and CSA approved.
Color -
Product Type Housing
Housing Type Receptacle (Cap)
Connector System Wire-to-Wire
Number of Positions 0.200" (5.08mm)
Centerline (Pitch) 5.08 mm [ .2 in ]
Sealable No
Connector Wire & Cable
Contact Type Male Pin
Number of Rows 1
Operating Voltage 250
Contact Retention Without
Termination Method to Wire Crimp
Panel Mount Feature Without
Connector Mounting Type Cable Mount (Free-Hanging)
UL Flammability Rating UL 94V-2
Housing Color Natural
Housing Material Polyamide (PA)
Operating Temperature Range -55 ? 105 ?C [ -67 ? 221 ?F ]
Circuit Application Power & Signal
Glow Wire Rating Standard Part - Not Glow Wire
Packaging Method Package
Product Category Power to the Board
Contact Gender Socket (Female)
Voltage Rating 250 V
Current Rating 13 A
Number of Positions / Contacts 4
Mounting Style Panel Mount, Free Hanging
Termination Style Wire
Packaging Bulk
Factory Pack Quantity 1
Wire Gauge Range 30-14
Type of connector wire-board
Kind of connector male
Connector series Commercial MATE-N-LOK
Contacts pitch 5.08mm
Number of pins 4
Connector variant w/o contacts
Mechanical mounting for cable
Rated voltage 0.25kV
Flammability rating UL94V-2
Connector pinout layout 1x4
Body material polyamide
Category Connectors, Interconnects
Series Commercial MATE-N-LOK
Package Active
Part Status Receptacle
Connector Type Male Pin
Pitch -
Row Spacing -
Mounting Type Free Hanging (In-Line)
Contact Termination Friction Lock
Fastening Type Friction Lock
Features -
Note 1
Product Status Active
Base Product Number 480426
Shipping Weight 0.001 pounds
Manufacturer P/N 1-480426-0
Schedule B Code 8538.90.7080
Pack Quantity 5
Country of Origin (subject to change) China
Connector Shape Square shape
Connection Direction Straight
Operating Temperature Range(?) -55 to +85
Agency Approvals CSA ; UL
Angle Straight
Contact Diameter 0.084
Family Name Universal MATE-N-LOK Family
Lock Type Detent Lock
Matrix Centerline 0.2 in.
Number of Circuits 4
Number of Contacts 4
Overall Length 0.93 "
Pin Spacing 0.2 in
Primary Type Soft Shell
Product Header Commercial MATE-N-LOK™ Receptacle Cap Housing
Special Features Commercial
Standards RoHS Compliant, UL 94V-2 Flammability Rating
Type Receptacle
