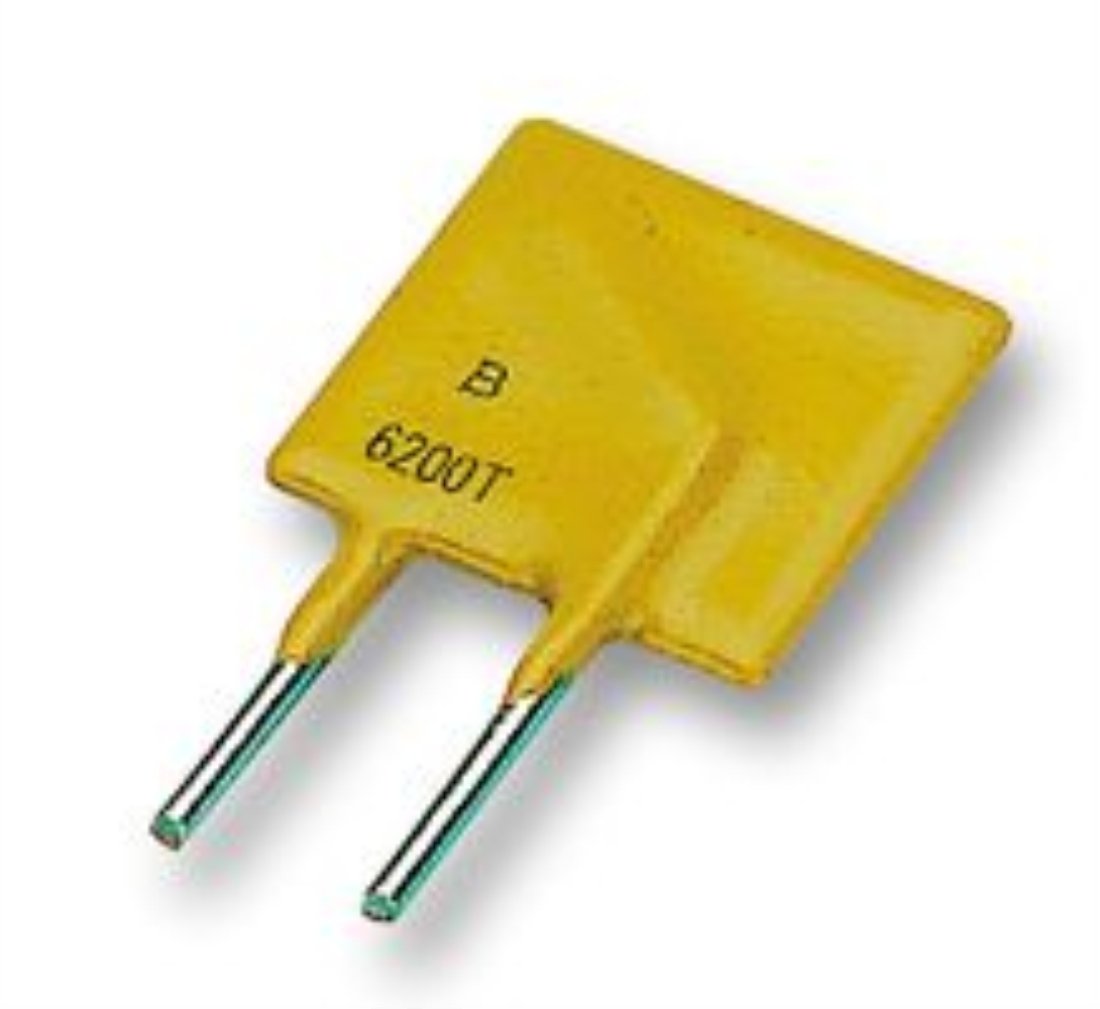

Polymeric Multifuse Circuit Protection 30V 40A

Condition: New
Brand: BOURNS
MPN: MF-R400-0-99
MPN Xref:MF-R400-0-99, MF-R400-0-99-ND, 652-MFR400-LF, MFR400099, 1843628, 61J7416

This circuit protection device is a polymeric multifuse with a maximum voltage of 30V and a maximum current of 40A. It has a trip current of 8A and a time to trip of 12.7s. The device has a resistance of 10 mOhms and is suitable for through hole mounting.

Category	Circuit Protection
Series	Multifuse?, MF-R
Package	Bulk
Product Status	Obsolete
Type	Polymeric
Voltage - Max	30V
Current - Max	40A
Current - Hold (Ih) (Max)	4A
Current - Trip (It)	8 A
Time to Trip	12.7s
Resistance - Initial (Ri) (Min)	10 mOhms
Resistance - Post Trip (R1) (Max)	50 mOhms
Operating Temperature	-40
Ratings	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.567" L x 0.118" W (14.40mm x 3.00mm)
Height - Seated (Max)	0.976" (24.80mm)
Thickness (Max)	-
Lead Spacing	0.201" (5.10mm)
Approval Agency	cURus, TUV
Base Product Number	MF-R400
Lead Free Status / RoHS Status	RoHS Compliant
Manufacturer Part Number	MF-R400-0-99
Packaging	Bulk Pack
Standard Package	500
Alternate Parts
