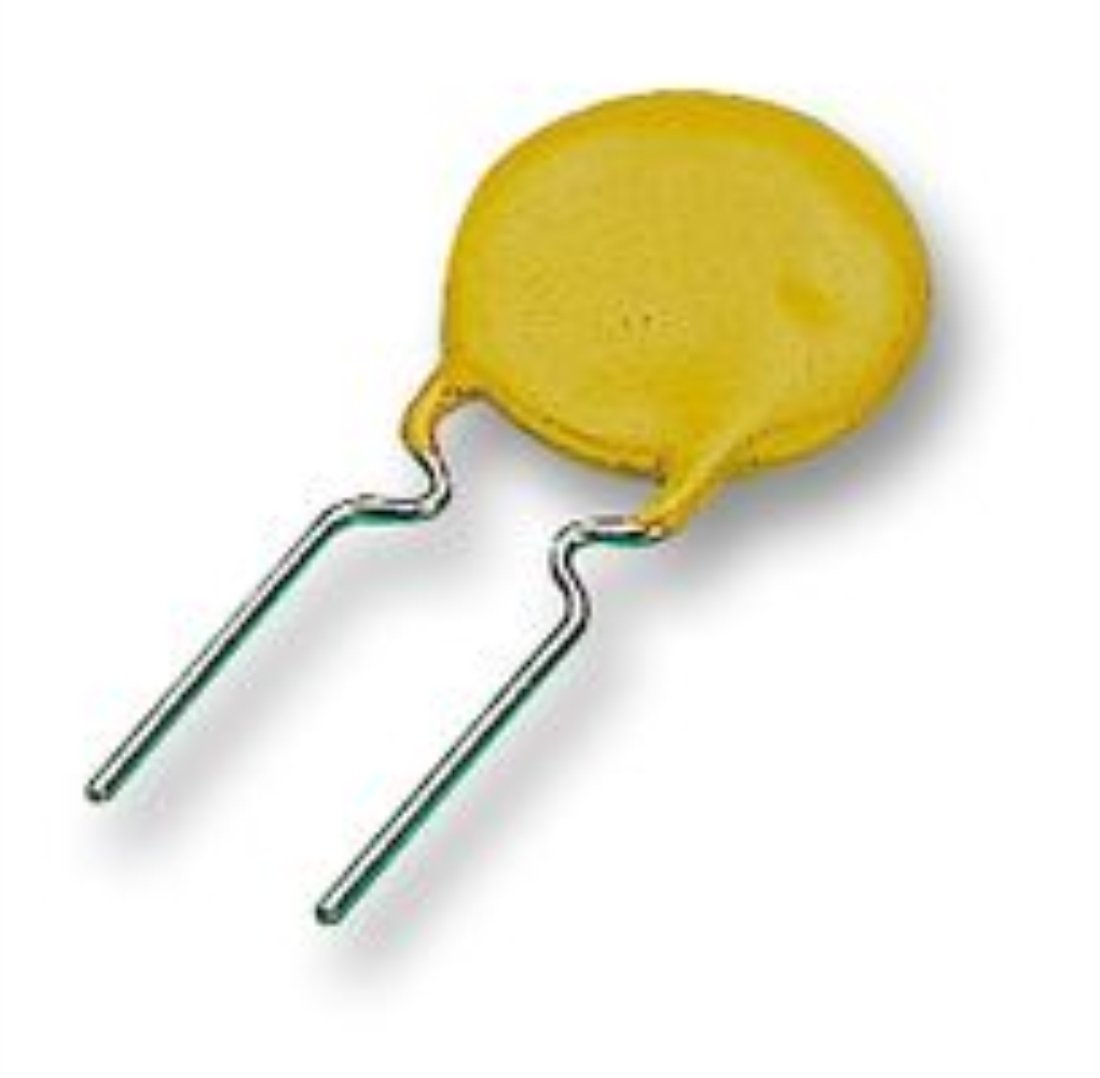

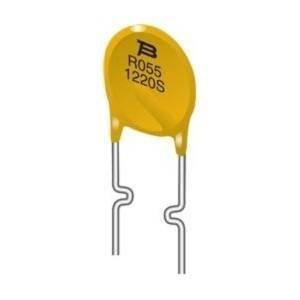

Polymeric Circuit Protection Multifuse - Obsolete

Condition: New
Brand: BOURNS
MPN: MF-R030-0-99
MPN Xref:MF-R030-0-99

This Polymeric Circuit Protection Multifuse is obsolete and has a maximum voltage of 60V and maximum current of 40A. It has a hold current of 300mA and trip current of 600mA with a time to trip of 3s. The initial resistance is 760mOhms and post trip resistance is 2.1 Ohms. It operates in a temperature range of -40°C to 85°C and is approved by cURus and TUV.

Category	Circuit Protection
Series	Multifuse?, MF-R
Package	Bulk
Part Status	Obsolete
Type	Polymeric
Voltage - Max	60V
Current - Max	40 A
Current - Hold (Ih) (Max)	300 mA
Current - Trip (It)	600 mA
Time to Trip	3 s
Resistance - Initial (Ri) (Min)	760 mOhms
Resistance - Post Trip (R1) (Max)	2.1 Ohms
Operating Temperature	-40?C ~ 85?C
Ratings	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Max)	0.528" (13.40mm)
Thickness (Max)	-
Lead Spacing	0.201" (5.10mm)
Approval Agency	cURus, TUV
Base Product Number	MF-R030
