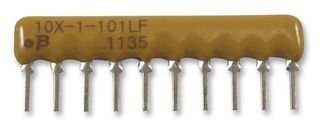

Thick Film Conformal SIPs, Low Profile Resistor Networks

Thick Film Conformal SIPs, Low Profile Resistor Networks

Regular price $0.05 USD
Regular price Sale price $0.05 USD
Sale Sold out
Shipping calculated at checkout.

63 in stock

Condition: New
Brand: Bourns Inc.
MPN: 4610X-102-221LF
MPN Xref:4610X-102-221LF, 4610X102221LF, 70155496, 9357297, 6928588, 652-4610X-2LF-220, 39K2727, 4610X-2-221LF-ND

Thick Film Conformal SIPs, Low Profile Resistor Networks
Resistor Values 220 Ohms
Lead Spacing 2.54 mm
Number of Resistors 5
Product Thick Film Conformal SIPs, Low Profile
Alternate Part No. 652-4610X-2LF-220
Temperature Coefficient ± ppm/°/C
Circuit Type Isolated
Operating Temperature Range - 55 C to + 125 C
Power Total Package 1.25 W
Tolerance ?2%
Manufacturer Part No. 4610X-102-221LF
Product Type Networks
Brand Bourns
Case Length 25.35 mm
Manufacturer Bourns
Product Category Resistor Networks & Arrays
Power per Element 125 mW (1/8 W)
Case Height 5.08 mm
Lead Diameter 0.508 mm
Number of Pins 10
Series 4600X Series
Voltage Rating 100 V
Packaging Bulk
Case Width 2.49 mm
Termination Style SIP
Type of resistor network Y
Mounting THT
Resistance 220 Ohms
Power 0.3W
Number of resistors 5
Operating temperature -55...125?C
Max. operating voltage 100V
Resistor features terminals of all resistors are separated
Terminal pitch 2.54mm
Case SIP
Manufacturer Product Number 4610X-102-221LF
Description RES ARRAY 5 RES 220 OHM 10SIP
Manufacturer Standard Lead Time 19 Weeks
Detailed Description 220 Ohm ?2% 300mW Power Per Element Isolated 5 Resistor Network/Array ?100ppm/?C 10-SIP
Category Resistors
Package Bulk
Product Status Active
Resistance (Ohms) 220
Resistor Matching Ratio -
Resistor-Ratio-Drift -
Power Per Element 300mW
Operating Temperature -55?C ~ 125?C
Applications -
Mounting Type Through Hole
Package / Case 10-SIP
Supplier Device Package 10-SIP
Size / Dimension 0.998" L x 0.098" W (25.35mm x 2.49mm)
Height - Seated (Max) 0.200" (5.08mm)
Base Product Number 4610X
Circuit Isolated Array
Dimensions 0.998 L x 0.098 W x 0.2 H ; 25.35 L x 2.49 W x 5.08 H in ; mm
Number of Terminals 10
Package Type SIP
Power Rating 1.25 W
