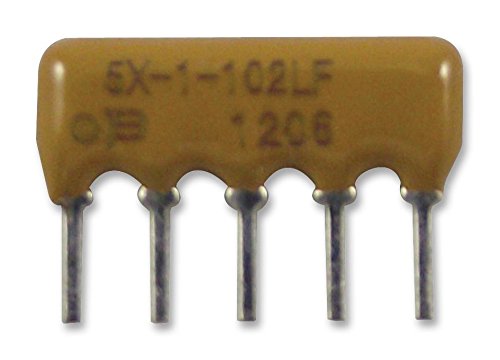

Resistor Network - 1k? - Tolerance ?2% - Power 0.2W - 4 Resistors - Through Hole Mounting

Condition: New
Brand: BOURNS
MPN: 4605X-101-102LF
MPN Xref:4605X-101-102LF, 4605X-101-102LF-ND, 5223321, 9356053, 70154601, 652-4605X-1LF-1K, 4605X101102LF, 287-3926, BOUR-0010553

This resistor network features 4 resistors with a resistance of 1k?, a tolerance of ?2%, and a power rating of 0.2W. It has a terminal pitch of 2.54mm and is mounted using Through Hole mounting type. The operating temperature range is -55...125?C and the max. operating voltage is 100V. The resistor network is designed with one pin of each resistor connected to a common terminal. It has a bussed array circuit and the dimensions are 0.498 L x 0.098 W x 0.2 H in mm.

Type of resistor network	X
Mounting	THT
Resistance	1k?
Tolerance	?2%
Power	0.2W
Number of resistors	4
Operating temperature	-55...125?C
Max. operating voltage	100V
Resistor features	one pin of each resistor connected to common terminal
Terminal pitch	2.54mm
Case	SIP
Circuit	Bussed Array
Dimensions	0.498 L x 0.098 W x 0.2 H ; 12.65 L x 2.49 W x 5.08 H in ; mm
Mounting Type	Through Hole
Number of Resistors	4
Number of Terminals	5
Operating Temperature	-55 to +125 °C
Package Type	SIP
Power Rating	0.63 W
Series	4600X Series
Temperature Coefficient	± ppm/°/C
ASIN	B00M1XRRBO
Item model number	4605X-101-102LF
