Concealed Cabinet Hinge - Nickel Finish

Condition: New
Brand: Amerock
MPN: BP4611A14
MPN Xref:BP4611A14

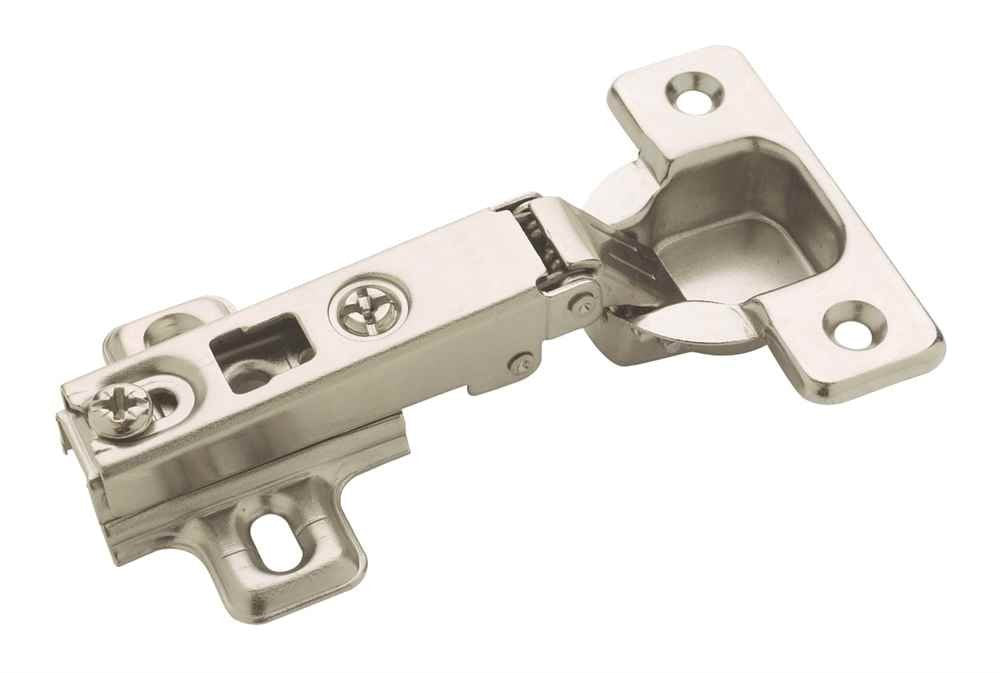

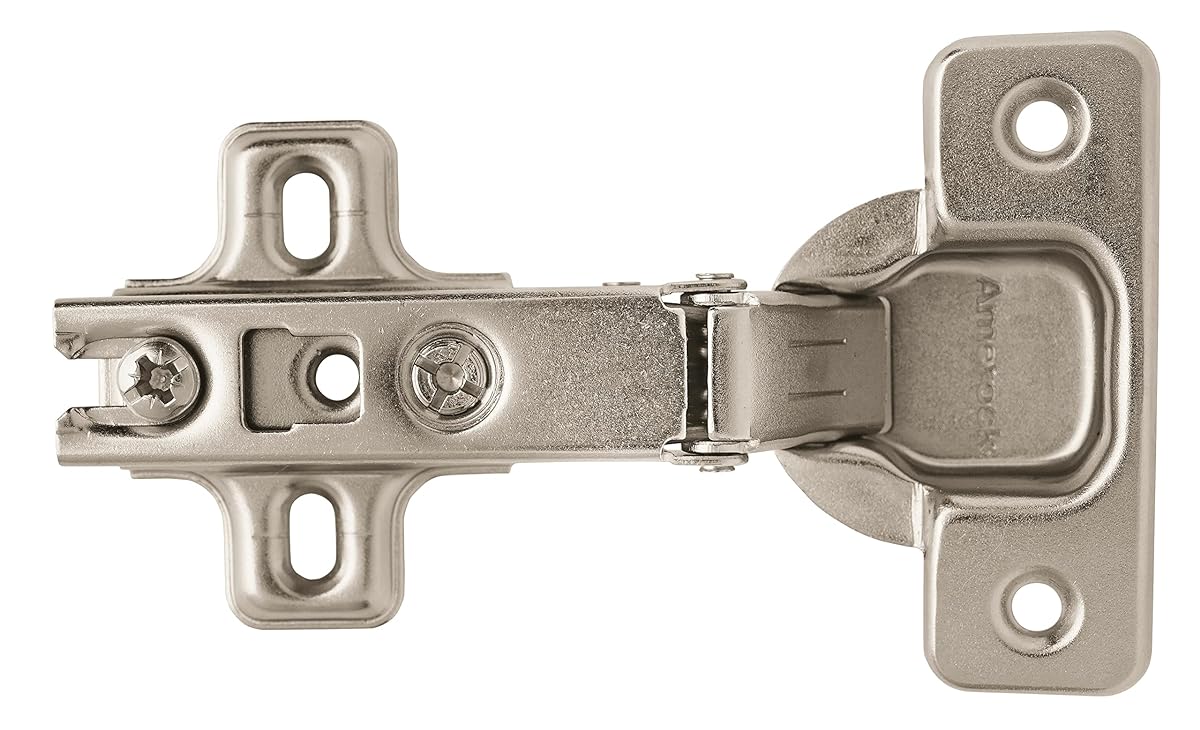

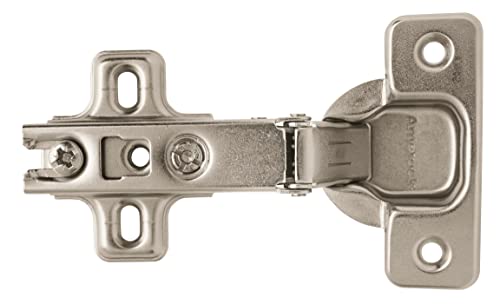

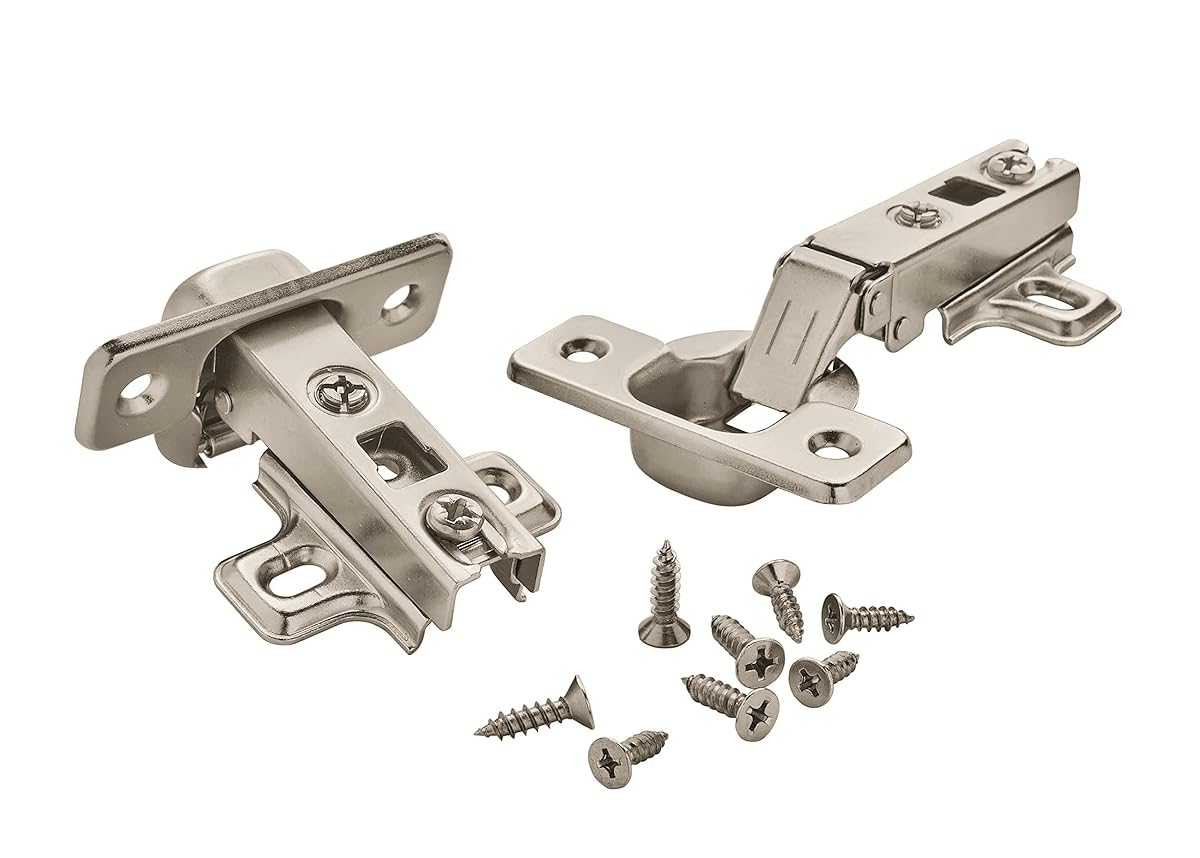

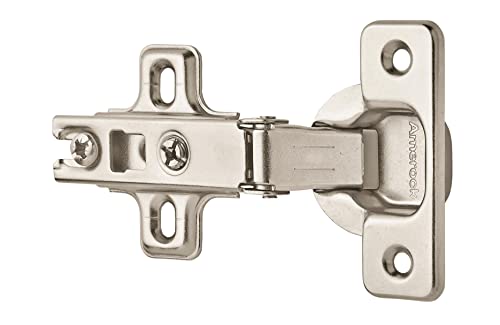

This Concealed Cabinet Hinge is made of steel with a nickel finish. It is 3-way adjustable and has a self-closing feature. The hinge has a full overlay and an opening angle of 110 degrees. It is suitable for residential use and can be easily installed with screws. The package includes 2 hinges and screws.

Part Number	BP4611A14
Item model number	BP4611A14
Is Discontinued By Manufacturer	Yes
Color	Nickel
Style	N/A
Material	Steel
Item Package Quantity	1
Number Of Holes	4
Batteries Included?	No
Batteries Required?	No
ASIN	B00002N6VH
Finish	?Nickel
Product Projection Fraction (in)	1
Shelf Pack Weight (lbs)	3.833
Opening Angle	110
Individual Pack	Polybag
Adjustable Depth	Yes
Product Length Decimal (in)	2.5625
Cup Depth mm	11
Shelf Pack Height (in)	4.5
Demount-able	No
Product Width	2-7/16 Inch
Hole Pattern	45
Installation Type	Screw
Top/Bottom Widths	NO
Cup Diameter mm	35
Adjustable Side to Side	Yes
Product Projection (mm)	25.4
Overlay Fraction (in)	Full
Shelf Pack Length (in)	11.75
Collection	Functional Hardware
Max Cabinet Door Thickness	0.75
Product Class	Residential
Configuration	Hinges
3-Way Adjustable	Yes
Packaging Width (in)	6
Product Width Decimal (in)	2.4375
Arm Type	Straight Arm
Shelf Pack Qty	10
Base Material	Steel
Product Length	2-9/16 Inch
Packaging Length (in)	11.75
Product Weight	0.375
Product Type	Cabinet Hinge
Product Projection Decimal (in)	1
Packaging Height (in)	0.45
Self Closing	Yes
Hinge Type	Full overlay
Shelf Pack Width (in)	6
Boring Distance	2, 2.5
Soft Close	No
Adjustable Height	Yes
Pieces Per Package	2
Wrap Type	Self-Closing, Concealed
Overlay	1 Inch
Hinge Mount	Full Overlay
Cabinet Type	Panel
Length	4.00
Width	6.00
Type	Full Overlay
Pack Size	Pair
Projection	1 in(25mm)
Screws Included	Yes
Returnable	Yes
Removable Pin	No
Defective Code	A
Number in Package	2 pk
Number of Holes	4
Indoor or Outdoor	Indoor
Packaging Type	Bagged
Hinge Opening	110 deg
Each Weight	0.320 LB
Velocity	A
Hazardous Material	No
Dimensions	2-9/16 in L x 2-7/16 in W
Nomenclature	BP4611A14 HINGE MORTISE
Height	1
Country Origin Code	CN
Finish Family	Nickel
Included Components	Screw Size(s): (4) #6 F.H. x 5/8in LGTH
Product Material	Steel
Hole Center to Center	1-3/4 Inch
Standards	KCMA; BHMS
Function Family	Hinge/Pivot
Product Projection	1 Inch
Features	Full Overlay
Color Code	14/G9
Function	Cabinet Hinge
Finish Description	Silver Tone
Sub-Series	BP4611-A14
ECCN	EAR99
MFR	BP4611A14
SKU	11840451
UPC	026634040557
Weight	0.38 lb (170.1 g)
Shipping	undefined (Fixed Shipping Cost)
Item Weight	3.2 ounces
Product Dimensions	11.75 x 5.25 x 4.75 inches
Size	Pack of 1
Date First Available	April 19, 2016
Product with faster shipping	true
Best Sellers Rank	#496,009 in Tools & Home Improvement
Customer Reviews	4.5 out of 5 stars 3 ratings 4.5 out of 5 stars
Finish Type	Nickel
Item Dimensions LxWxH	11.75 x 5.25 x 4.75 inches
Mounting Type	Door Mount
Unit Count	1.00 Count
Specific Finish	Nickel
Made In	China
Screw Size	8-32
Theme	Traditional
Other part numbers	4611, BP4611
Item number	AME-128747
California residents
Item	Concealed Cabinet Hinge
Package Quantity	1
