Rotary Potentiometer - 5K Ohms, 1W, 1 Turn

Condition: New
Brand: ETI Systems
MPN: SP22G-5K
MPN Xref:SP22G-5K, 83H7885, 1307142, 70089297, 882-SP22G-5K

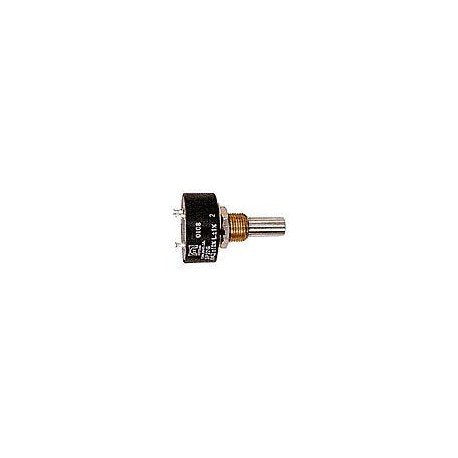

This is a rotary potentiometer with a resistance of 5 kiloohms, 1 turn, and a power rating of 1W. It has a rotational life of 10 million turns and a tolerance of 0.1. The maximum operating temperature is 125°C and the minimum operating temperature is -55°C.

Element Material	Conductive Plastic
Maximum Operating Temperature	125 °C
Mechanical Angle	360° (Continuous)
Minimum Operating Temperature	-55 °C
Mounting Type	Bushing Mount
Number of Turns	1 Turn
Power Rating	1 W
Primary Type	Potentiometers
Resistance	5 Kiloohms
Rotational Life	10 Million Turns
Series	SP22G Series
Shaft Diameter	0.25 In.
Shaft Style	Radial
Tolerance	0.1
Torque	0.7 oz/in
Type	Rotary
Weight	1.1 Oz. (Max.)
