Condition: New
Brand: Climax Metal Products
MPN: H1C-031
MPN Xref:H1C-031, B000P0T1N2, 744887

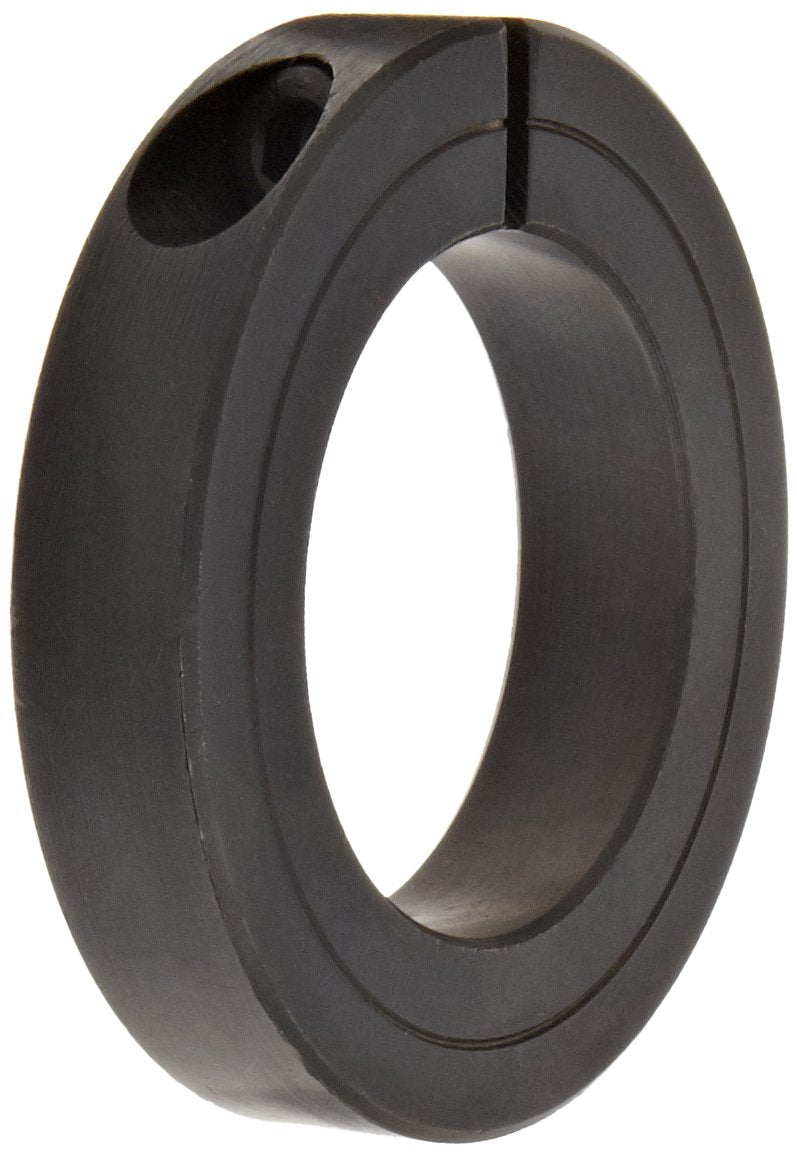

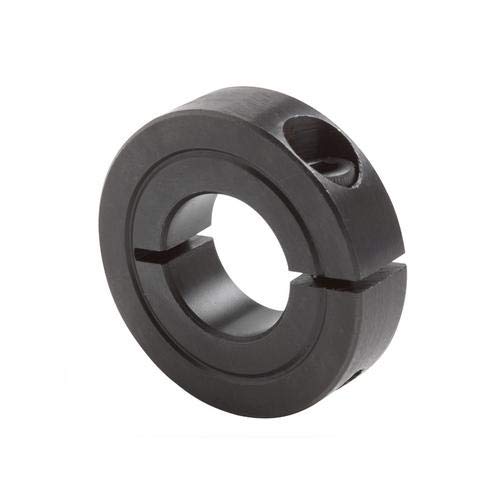

This One-Piece Clamp is made of Steel with a Black Oxide finish. It has a 5/16" Bore Size and a 13/16" OD.
Style
One-Piece Clamp
Material
Steel
Finish
Black Oxide
Clamp Screw
Hex Socket Cap Screw, 3A Thread, Steel, ASTM A574: 4-40 x 3/8
Recessed Screw
Yes
Approximate Weight
0.43 oz
OD
13/16"
Bore Size
5/16"
Width
1/4"
Screw Size
4-40 x 3/8
Bore Dia.
5/16 in
Outside Dia.
13/16 in
Dimension Type
Inch
Clearance Dia.
0.6875 in
Width Tolerance
+0.005/-0.005 in
Collar Width
1/4 in
Lever Length
Not Applicable
Collar Outside Diameter
13/16 in
Screw Thread Size
#4-40
Bore Diameter
5/16 in
Bore Width
Not Applicable
Inside Height to Flat
Not Applicable
Clearance Diameter
0.69 in
Screw Length
3/8 in
Bore Thread Size
Not Applicable
Mount Hole Thread Size
Not Applicable
Lever Height
Not Applicable
Keyway Width
Not Applicable
For Shaft Diameter
5/16 in
Keyway Depth
Not Applicable
Number of Pieces
1
