Adjustable Linear Voltage Regulator - LM317MDT-TR
Adjustable Linear Voltage Regulator - LM317MDT-TR
Regular price
$0.11 USD
Regular price
Sale price
$0.11 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 6 left
Couldn't load pickup availability
Condition: New
Brand: STMicroelectronics
MPN: LM317MDT-TR
MPN Xref:LM317MDT-TR, LM317MDT-TR/BKN, 2296022, 1261208, 1923051, 497-1574-2-ND, ICSPR4668, 511-LM317MDT-TR, 2474020

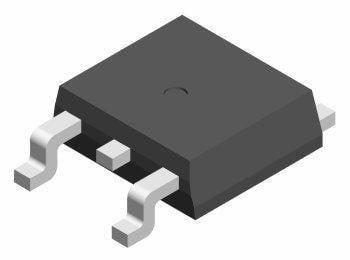

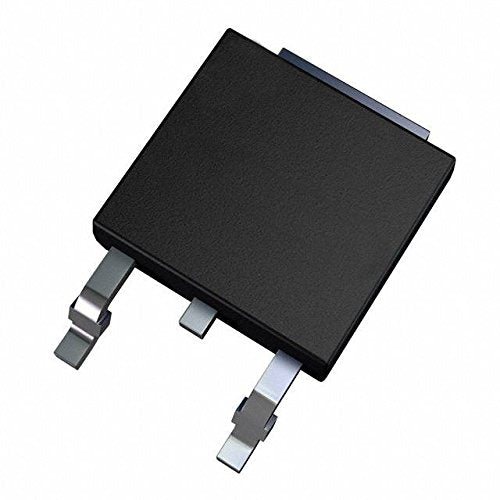

This adjustable linear voltage regulator is a versatile component that can be used in various applications. It has an output voltage range of 1.2V to 37V and an output current of 0.5A. The regulator features a positive polarity and a package/case type of TO-252 (DPAK). It operates within a temperature range of 0°C to 125°C and is RoHs compliant.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: STMicroelectronics
MPN: LM317MDT-TR
MPN Xref:LM317MDT-TR, LM317MDT-TR/BKN, 2296022, 1261208, 1923051, 497-1574-2-ND, ICSPR4668, 511-LM317MDT-TR, 2474020
This adjustable linear voltage regulator is a versatile component that can be used in various applications. It has an output voltage range of 1.2V to 37V and an output current of 0.5A. The regulator features a positive polarity and a package/case type of TO-252 (DPAK). It operates within a temperature range of 0°C to 125°C and is RoHs compliant.
| Operating Temp Max Celsius | 0.0 |
| ECCN US | 125.0 |
| ECCN EU | EAR99 |
| Packing Type | NEC |
| RoHs compliant | Tape And Reel |
| Grade | Ecopack2 |
| Package Name | Industrial |
| Operating Temp Min Celsius | DPAK |
| Type of integrated circuit | voltage regulator |
| Kind of voltage regulator | adjustable, |
| Output voltage | 1.2...37V |
| Output current | 0.5A |
| Case | DPAK |
| Mounting | SMD |
| Kind of package | reel, |
| Operating temperature | 0...125?C |
| Tolerance | ?0.1% |
| Number of channels | 1 |
| Input voltage | 3...40V |
| Manufacturer series | LM317M |
| Manufacturer Product Number | LM317MDT-TR |
| Description | IC REG LINEAR POS ADJ 500MA DPAK |
| Manufacturer Standard Lead Time | 24 Weeks |
| Detailed Description | Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA DPAK |
| Category | Integrated Circuits (ICs) |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | 37V |
| Voltage Dropout (Max) | - |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 10 mA |
| PSRR | 80dB ~ 65dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | 0?C ~ 125?C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Base Product Number | LM317 |
| Part Status | Active |
| Packaging | Reel |
| Output Voltage | 1.2 V to 37 V |
| Input Voltage MAX | 40 V |
| Manufacturer Part No. | LM317MDT-TR |
| Load Regulation | 0.5 % / V |
| Product Category | Linear Voltage Regulators |
| Alternate Part No. | 511-LM317MDT-TR |
| Minimum Operating Temperature | 0 C |
| Mounting Style | SMD/SMT |
| Package/Case | TO-252 |
| Polarity | Positive |
| Line Regulation | 0.04 % / V |
| Maximum Operating Temperature | + 125 C |
| Input Voltage MIN | 4.2 V |
| Output Current | 0.5 A |
| PSRR / Ripple Rejection - Typ | 80 dB |
| Number of Outputs | 1 |
