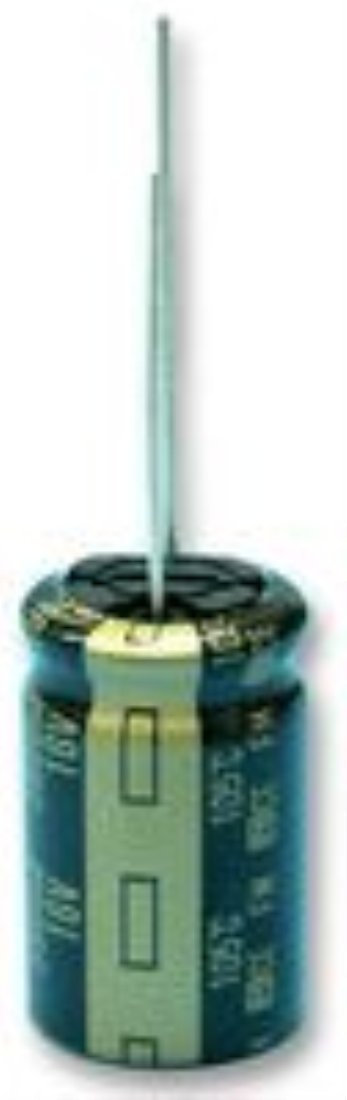

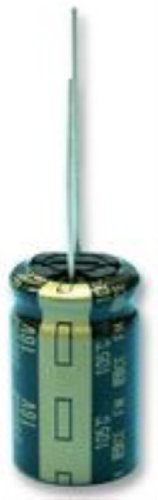

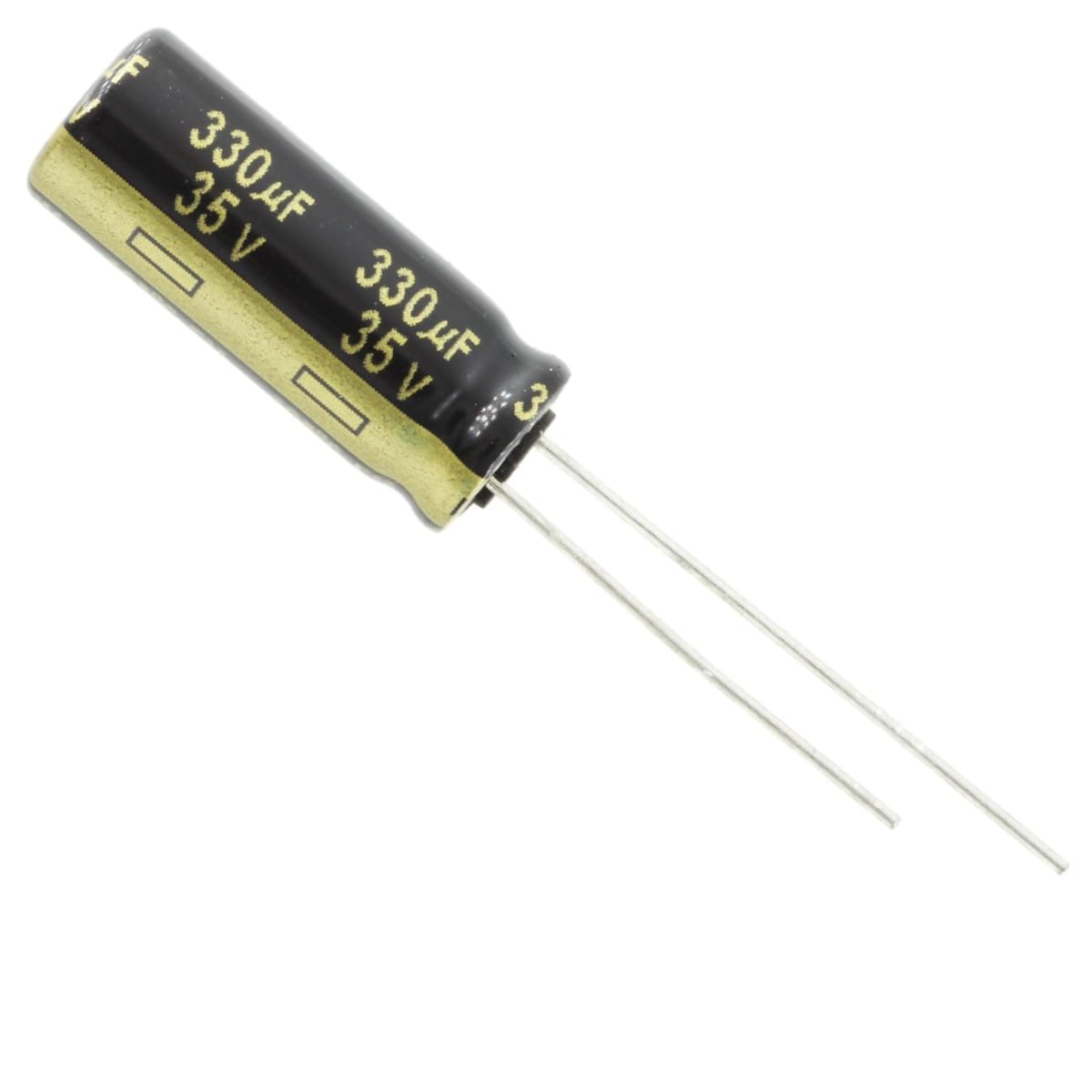

Panasonic Electronic Components FM Series Capacitor - 35V, 330 uF

Condition: New
Brand: panasonic-electronic-components
MPN: EEU-FM1V331L
MPN Xref:EEU-FM1V331L, 04M9029, P12414-ND, PANA-0063022, 667-EEU-FM1V331L, 70257614, EEUFM1V331L

This bulk Panasonic Electronic Components FM Series capacitor is a general purpose component with a capacitance range of 100 to 999 uF and a voltage rating of 35 VDC. It has a maximum operating temperature of 105°C and a minimum operating temperature of -40°C. The capacitor has a ripple current of 1.56 A and a ESR of 30 mOhms.

Category	Capacitors
Mfr	Panasonic Electronic Components
Series	FM Series
Package	Active
Part Status	?20%
Tolerance	-
ESR (Equivalent Series Resistance)	4000 Hrs @ 105?C
Lifetime @ Temp.	-40?C ~ 105?C
Operating Temperature	Polar
Polarization	-
Ratings	General Purpose
Applications	0.138"" (3.50mm)
Lead Spacing	0.315"" Dia (8.00mm)
Size / Dimension	0.866"" (22.00mm)
Height - Seated (Max)	-
Surface Mount Land Size	Through Hole
Mounting Type	Radial, Can
Package / Case	330?F
Capacitance	330 uF
Voltage - Rated	30 mOhms
Impedance	1.092A @ 120Hz
Ripple Current @ Low Frequency	1.56A @ 100kHz
Capacitance Range	100 to 999 uF
Case Size	Dia. 0.315 x L 0.787 in ; Dia. 8 x L 20 mm
Configuration	Radial ; Can
Dimensions	0.315 Dia. x 0.787 L ; 8 Dia. x 20 L in ; mm
Element Material	Aluminum Electrolytic
ESR	30 mOhms
Lead Diameter	0.6 mm
Life	4000 Hours
Maximum Operating Temperature	105 C
Minimum Operating Temperature	-40 C
Packaging	Bulk
Ripple Current	1.56 A
Termination	Through Hole
Voltage Rating	35 VDC
