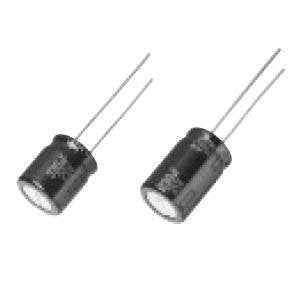

220uF 35V Aluminum Electrolytic Capacitor - General Purpose
220uF 35V Aluminum Electrolytic Capacitor - General Purpose
Regular price
$0.03 USD
Regular price
Sale price
$0.03 USD
Unit price
/
per
Shipping calculated at checkout.
11 in stock
Couldn't load pickup availability
Condition: New
Brand: Panasonic
MPN: EEU-FM1V221B
MPN Xref:EEU-FM1V221B, 70257610, 667-EEU-FM1V221B, 49W7350, EEUFM1V221B, 2284494, EEU-FM1V221B-ND
This high-quality aluminum electrolytic capacitor has a capacitance of 220uF and a voltage rating of 35VDC. It is perfect for general purpose applications and has a low impedance.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: Panasonic
MPN: EEU-FM1V221B
MPN Xref:EEU-FM1V221B, 70257610, 667-EEU-FM1V221B, 49W7350, EEUFM1V221B, 2284494, EEU-FM1V221B-ND
This high-quality aluminum electrolytic capacitor has a capacitance of 220uF and a voltage rating of 35VDC. It is perfect for general purpose applications and has a low impedance.
| Leakage Current | 0.01 uA |
| Product | Low Impedance Electrolytic Capacitors |
| Termination Style | Radial |
| Ripple Current | 1290 mA |
| Maximum Operating Temperature | 105 C |
| Case Length | 12.5 mm |
| Tolerance | ?20% |
| Product Category | Aluminium Electrolytic Capacitors - Leaded |
| Series | FM-A |
| Manufacturer Part No. | EEU-FM1V221B |
| Case Diameter | 10 mm |
| Capacitance | 220 ?F |
| Dimensions | 0.394 Dia. x 0.492 L ; 10 Dia. x 12.5 L in ; mm |
| Load Life | 4000 h |
| ESR | 38 mOhms |
| Alternate Part No. | 667-EEU-FM1V221B |
| Lead Style | Straight |
| Type | Aluminum Electrolytic Capacitors |
| Lead Spacing | 0.197 In. (5.00 mm) |
| Voltage Rating DC | 35 V |
| Packaging | Ammo Pack |
| Dissipation Factor DF | 0.12 |
| Category | Capacitors |
| Package | Cut Tape (CT) |
| Product Status | Active |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105?C |
| Operating Temperature | -40?C ~ 105?C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 903 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.29 A @ 100 kHz |
| Impedance | 38 mOhms |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | PCB Mount |
| Package / Case | Radial, Can |
| Base Product Number | EEU-FM |
| Capacitance Range | 100 to 999 uF |
| Case Size | Dia. 0.394 x L 0.492 in ; Dia. 10 x L 12.5 mm |
| Configuration | Radial ; Can |
| Element Material | Aluminum Electrolytic |
| Life | 4000 Hours |
| Minimum Operating Temperature | -40 C |
| Termination | Through Hole |
| Voltage Rating | 35 VDC |
