4A 125VAC/VDC Time-Lag Ceramic Surface Mount Fuse
4A 125VAC/VDC Time-Lag Ceramic Surface Mount Fuse
Regular price
$0.13 USD
Regular price
Sale price
$0.13 USD
Unit price
/
per
Shipping calculated at checkout.
14 in stock
Couldn't load pickup availability
Condition: New
Brand: Littelfuse Inc.
MPN: 0452004.MRL
MPN Xref:0452004.MRL, 2142635, 13308403, 5413669, FUSE686, 0452004.MRL**MULT1, 0452004L, LITT-0031993, 0452004.MRL.
This is a 4A 125VAC/VDC fuse with a time-lag characteristic. It is a surface mount fuse with a ceramic body and gold-plated contact plating. The fuse size is 6.1x2.7x2.7mm and it has a breaking capacity of 50A.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: Littelfuse Inc.
MPN: 0452004.MRL
MPN Xref:0452004.MRL, 2142635, 13308403, 5413669, FUSE686, 0452004.MRL**MULT1, 0452004L, LITT-0031993, 0452004.MRL.
This is a 4A 125VAC/VDC fuse with a time-lag characteristic. It is a surface mount fuse with a ceramic body and gold-plated contact plating. The fuse size is 6.1x2.7x2.7mm and it has a breaking capacity of 50A.
| Manufacturer | LITTELFUSE |
| Type of fuse | fuse |
| Fuse characteristics | time-lag |
| Breaking capacity | 50A |
| Current rating | 4A |
| Rated voltage | 125V AC/ |
| Mounting | SMD |
| Kind of fuse | ceramic |
| Fuse size | 6.1x2.7x2.7mm |
| Breaking characteristics | 1I |
| Case | 2410 |
| Soldering temperature | 260?C / 3 s |
| Contact plating | gold-plated |
| Gross Weight | 0 lbs |
| Manufacturer Product Number | 0452004.MRL |
| Description | FUSE BRD MNT 4A 125VAC/VDC 2SMD |
| Manufacturer Standard Lead Time | 12 Weeks |
| Detailed Description | 4 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block |
| Category | Circuit Protection |
| Series | 452 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Mounting Type | Surface Mount |
| Fuse Type | Time Delay / Slow Blow |
| Current Rating (Amps) | 4A |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
| Response Time | Slow Blow |
| Package / Case | 2-SMD, Square End Block |
| Breaking Capacity @ Rated Voltage | 50A |
| Melting I?t | 34.4 |
| Approval Agency | CSA, PSE, UR |
| Operating Temperature | -55?C ~ 125?C |
| Color | - |

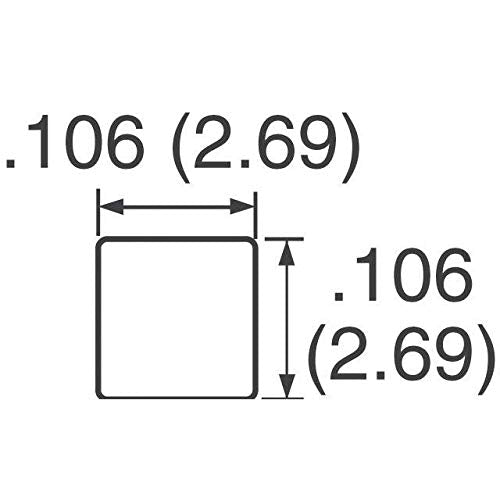

| Size / Dimension | 0.240"" L x 0.106"" W x 0.106"" H (6.10mm x 2.69mm x 2.69mm) |
| DC Cold Resistance | 0.0186 Ohms |
| Package/Case | SMD |
| Product Categories | Fuse |
| RoHs Status | Rohs |
| In-stock | 4100 |
| Fuse Size / Group | NANO |
| Dimensions | 0.5625 x 2 in |
| Type | PCB Mounted Fuses |
| Case Height | 2.69 mm |
| Case Length | 6.1 mm |
| Case Width | 2.69 mm |
| Interrupt Rating | 50 Amps |
| Operating Temperature Range | - 55 C to + 125 C |
| Packaging | Reel |
| Product | Surface Mount Fuses |
| Resistance | 0.0186 Ohms |
| Factory Pack Quantity | 1000 |
| AC Voltage | 125 V |
| Action | Slow |
| Alternate Mfr Part Number | 5413669 |
| Approvals | CSA ; PSE ; UL |
| Breaking Capacity | 50 A |
| Current Rating | 4 A |
| DC Voltage | 125 V |
| Package Type | 2-SMD, Square End Block |
| Primary Type | Single Use Fuses |
| Temperature Range | 55 to 125 C |
| Termination | PCB ; Surface Mount |
| Part Status | Active |
