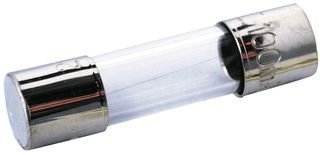

Time-Lag 5x20mm Fuse - 50A Breaking Capacity - 5A Current Rating

Condition: New
Brand: LITTELFUSE
MPN: 0218005.HXP
MPN Xref:0218005.HXP, 218005XP, 70184260, F2422-ND, 576-0218005.HXP, 1707314, 26K8062

This time-lag fuse has a breaking capacity of 50A and current rating of 5A. It is a cylindrical fuse with a size of 5x20mm and a breaking characteristics of 1.5I. The contact material is brass with nickel plating. It comes in a bulk package and is suitable for circuit protection. The fuse is part of the 218 series and is compatible with various approval agencies. It has a slow blow action and operates at a temperature range of -55°C to 125°C.

Type of fuse	fuse
Fuse characteristics	time-lag
Breaking capacity	50A
Current rating	5A
Rated voltage	250V AC
Kind of fuse	cylindrical,
Fuse size	5x20mm
Breaking characteristics	1.5I
Max voltage drop	0.1V
Contact material	brass
Kind of package	bulk
Contact plating	nickel plated
Category	Circuit Protection
Series	218 Series
Package	-
Part Status	Holder
Mounting Type	Cartridge, Glass
Fuse Type	Slow Blow
Response Time	5mm x 20mm
Package / Case	50A
Breaking Capacity @ Rated Voltage	CCC, CE, CSA, K-MARK, PSE, SEMKO, UL, VDE
Approval Agency	-55?C ~ 125?C
Operating Temperature	-
Color	0.205" Dia x 0.787" L (5.20mm x 20.00mm)
Size / Dimension	111
Melting I?t	5 A
Current Rating (Amps)	250 V
Voltage Rating - AC	0.0104 Ohms
Case Pack	100
AC Voltage	250 V
Action	Slow
Alternate Mfr Part Number	218005XP
Approvals	CCC ; CE ; CSA ; K-MARK ; PSE ; SEMKO ; UL ; VDE
Body Material	Glass
Breaking Capacity	50 A
Class	Supplemental
Current Rating	5 A
DC Resistance	0.01 Ohms
Dimensions	20 mm L x 5.2 mm D
Package Type	5mm x 20mm
Primary Type	Single Use Fuses
Speed	Slow Blow ; Time Lag
Temperature Range	55 to 125 C
Termination	Cartridge
Type	Glass Fuse
Voltage Rating	250 V
Package/Case	DIP
Product Categories	Fuse
RoHs Status	Rohs
In-stock	10900
Mounting Style	Holder
Termination Style	Clip
Fuse Size / Group	5 mm x 20 mm
Case Diameter	5.2 mm
Case Length	20 mm
Indicator Style	Without Indicator
Interrupt Rating	50 Amps at 250 VoltsAC
Operating Temperature Range	- 55 C to + 125 C
Packaging	Bulk
Product	Specialty Fuses
Resistance	10 mOhms
Factory Pack Quantity	100
