12V Linear Voltage Regulator IC
12V Linear Voltage Regulator IC
Regular price
$0.16 USD
Regular price
Sale price
$0.16 USD
Unit price
/
per
Shipping calculated at checkout.
50 in stock
Couldn't load pickup availability
Condition: New
Brand: ON Semiconductor
MPN: MC78L12ACDR2G
MPN Xref:MC78L12ACDR2G, 1016362, 6889278P, MC78L12ACDR2GOSTR-ND, MC78L12ACDR2GOSCT-ND, MC78L12ACDR2GOSDKR-ND, 1278494, 84K8788, ONSM-0048304

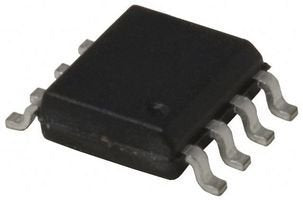

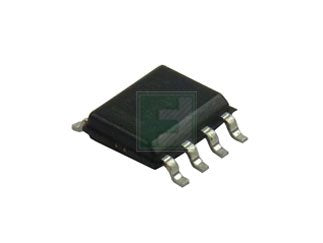

Linear voltage regulator IC with a fixed output of 12V and an output current of 100mA. Package type is SOIC-8.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: ON Semiconductor
MPN: MC78L12ACDR2G
MPN Xref:MC78L12ACDR2G, 1016362, 6889278P, MC78L12ACDR2GOSTR-ND, MC78L12ACDR2GOSCT-ND, MC78L12ACDR2GOSDKR-ND, 1278494, 84K8788, ONSM-0048304
Linear voltage regulator IC with a fixed output of 12V and an output current of 100mA. Package type is SOIC-8.
| Manufacturer | ONSEMI |
| Type of integrated circuit | voltage regulator |
| Kind of voltage regulator | fixed, |
| Voltage drop | 1.7V |
| Output voltage | 12V |
| Output current | 0.1A |
| Case | SO8 |
| Mounting | SMD |
| Kind of package | reel, |
| Operating temperature | 0...125?C |
| Tolerance | ?4% |
| Number of channels | 1 |
| Input voltage | 14.5...27V |
| Manufacturer series | MC78L00A |
| Manufacturer Product Number | MC78L12ACDR2G |
| Description | IC REG LINEAR 12V 100MA 8SOIC |
| Manufacturer Standard Lead Time | 16 Weeks |
| Detailed Description | Linear Voltage Regulator IC Positive Fixed 1 Output 100mA 8-SOIC |
| Category | Integrated Circuits (ICs) |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 12V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 6.5 mA |
| PSRR | 42dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | 0?C ~ 125?C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | MC78L12 |
| Package/Case | SOIC-8 |
| Product Categories | Linear Regulators - Standard |
| RoHs Status | Lead free/RoHS Compliant |
| In-stock | 4222 |
| Load Regulation | 100 mV |
| Input Voltage MAX | 35 V |
| Line Regulation | 250 mV |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Input Voltage MIN | 14 V |
| Minimum Operating Temperature | 0 C |
| Number of Outputs | 1 |
| Packaging | Reel |
| PSRR / Ripple Rejection (Typ) | 42 dB |
| Factory Pack Quantity | 2500 |
| Part Status | Active |
