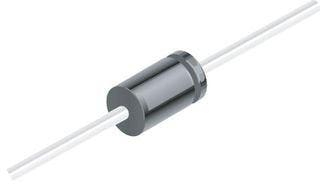

Obsolete Standard Silicon Junction Diode - 400V, 1A, DO41
Obsolete Standard Silicon Junction Diode - 400V, 1A, DO41
Regular price
$0.12 USD
Regular price
Sale price
$0.12 USD
Unit price
/
per
Shipping calculated at checkout.
26 in stock
Couldn't load pickup availability
Condition: New
Brand: ONSEMI
MPN: 1N4004
MPN Xref:1N4004, 1N4004GOS-ND, 1N4004-DIO, 603095, 863-1N4004G, 7743271, 512-1N4004, 18C8917, 1383892
This standard silicon junction diode has a maximum off-state voltage of 400V and a load current of 1A. It is mounted through hole using a DO41 case. The diode is capable of handling a maximum forward impulse current of 30A and has a power dissipation of 3W. Its capacitance is 15pF and it has a maximum forward voltage of 1.1V. This diode is an obsolete product.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: ONSEMI
MPN: 1N4004
MPN Xref:1N4004, 1N4004GOS-ND, 1N4004-DIO, 603095, 863-1N4004G, 7743271, 512-1N4004, 18C8917, 1383892
This standard silicon junction diode has a maximum off-state voltage of 400V and a load current of 1A. It is mounted through hole using a DO41 case. The diode is capable of handling a maximum forward impulse current of 30A and has a power dissipation of 3W. Its capacitance is 15pF and it has a maximum forward voltage of 1.1V. This diode is an obsolete product.
| Type of diode | rectifying |
| Mounting | THT |
| Max. off-state voltage | 400V |
| Load current | 1A |
| Semiconductor structure | single diode |
| Capacitance | 15pF |
| Max. forward impulse current | 30A |
| Case | DO41 |
| Max. forward voltage | 1.1V |
| Power dissipation | 3W |
| Category | Discrete Semiconductor Products |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Diode Type | Silicon Junction |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 5 ?A @ 400 V |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-41 |
| Operating Temperature - Junction | -55?C ~ 175?C |
| Base Product Number | 1N4004 |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Number of Elements per Chip | 1 |
| Brand | ON Semiconductor |
| Package Type | DO-41 |
| Maximum Continuous Forward Current | 1A |
| Diameter | 2.72mm |
| Maximum Forward Voltage Drop | 1.1V |
| Pin Count | 2 |
| Peak Non-Repetitive Forward Surge Current | 30A |
| Peak Reverse Repetitive Voltage | 400V |
| Stock | |
| Mfr | ON Semiconductor |
| Part Status | Obsolete |
