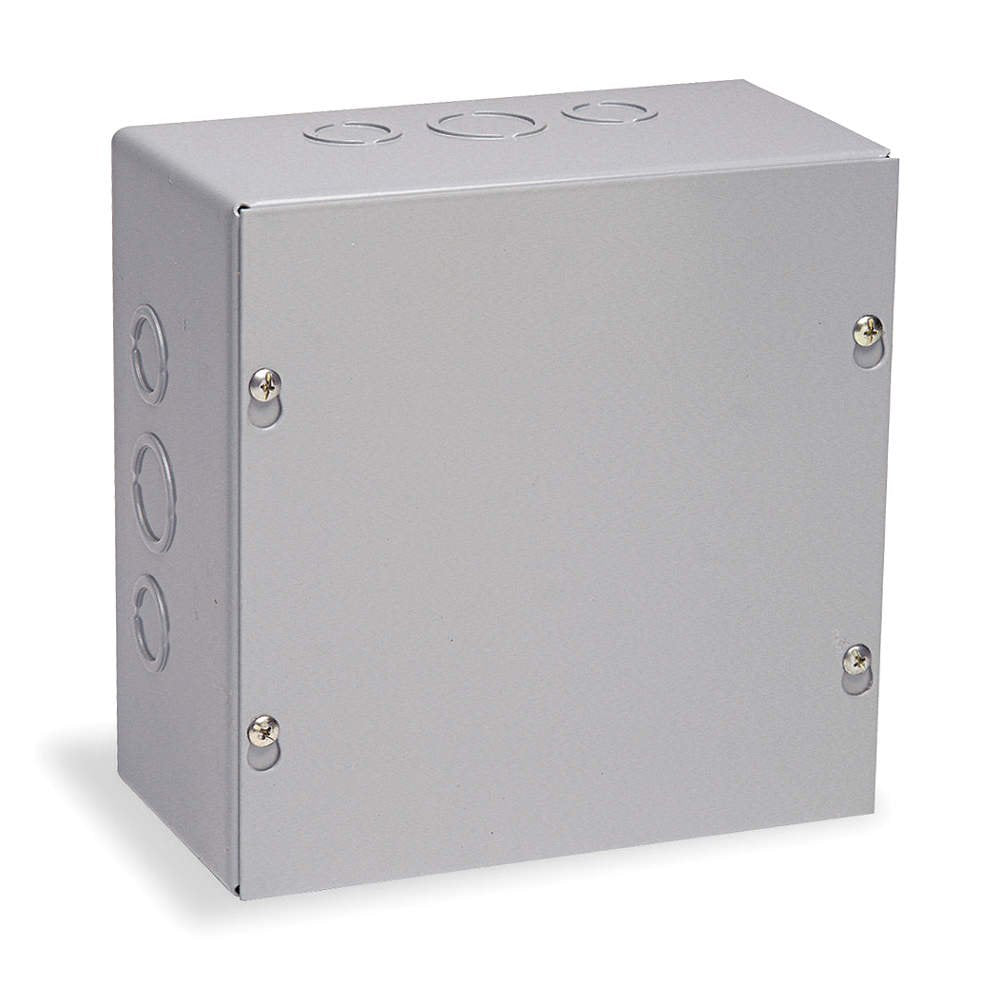

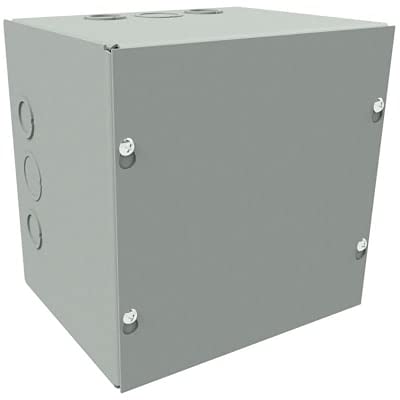

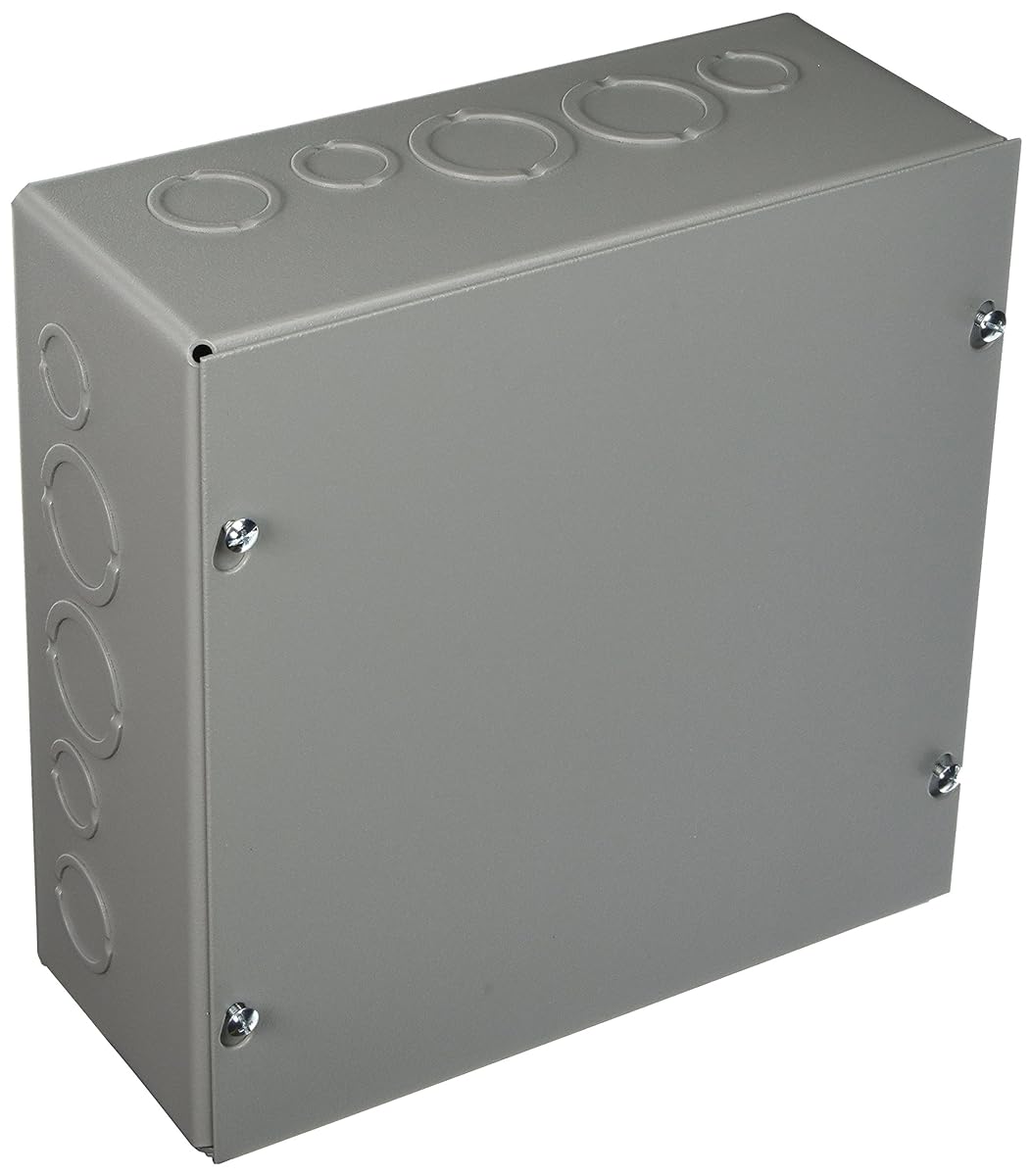

Carbon Steel NEMA 1 Screw Cover Wall-Mount Enclosure

Condition: New
Brand: Wiegmann
MPN: SC101004
MPN Xref:SC101004, G1247014, GR0468257, 4KP30, 9439

This carbon steel NEMA 1 screw cover wall-mount enclosure is designed for use as a junction box and pull box in commercial and general industrial applications. It is constructed from 16 gauge steel with a gray ANSI-61 textured finish. The enclosure has a capacity of 400 cubic inches and features removable concentric knockouts on all four sides. It measures 10-1/8 inches in width, 10-1/8 inches in height, and 4-3/16 inches in depth. The enclosure is UL listed and CSA certified.

Catalog Number	SC101004
Country of Origin	Mexico
Made in USA	No
Application	Designed for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications.
Cable Entry	Knock Outs
Color	ANSI-61 gray textured
Construction	Spot Welded
Cover Type	Screw Cover
Cubic Capacity	400 cu.in
Finish	Polyester Powder Coated
Material	Steel
Mounting	Wall
NEMA Rating	1
Special Features	Fabricated from 16 gauge steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box. Removable concentric knockouts on all four sides.
Standard	cULus
RoHS Indicator	Not Applicable
UPC	786725313501
Item Type	Carbon steel NEMA 1 screw cover wall-mount enclosure with knockouts
Width	10 in
Width UOM	Inch
Height	10 in
Height UOM	Inch
Depth	4-3/16 in
Weight	7.000
Weight UOM	Pounds
Size	10" H x 10" W x 4" D
CSA Certified	Yes
Coating	Galvanized, Polyester
Collection	SC Series
Color Finish	Galvanized Steel
Color Finish Category	Greys
Gauge	16
Material Type	Polyester
NEMA Specifications	NEMA 1
Type	Pull Box
UL Listed	Yes
Gross Weight	7 lbs
Capacity	400
Series	SC
Mounting type	Wall
Approximate Depth	4" (102mm)
Approximate Height	10" (254mm)
Approximate Width	10" (254mm)
Cover Locking	Screw
Cover Mounting	Lift-Off
Enclosure Mounting	Wall Mount
UPC Code	786725313501
Nominal Enclosure Width	10 in
Usable Opening Depth	3.88 in
Width (In.)	10.125 in
Actual Height	10.125 in
Actual Depth	4.188 in
Actual Width	10.125 in
Standards	cULus
Knockouts / No Knockouts	Knockouts
Enclosure Cover Type	Screw On
Item	Enclosure
Includes	Self Tapping Screws
Features	Embossed Mounting Holes
Enclosure NEMA Rating	1
Enclosure Cover Features	Plated Steel Screws
Metal Gauge	16 ga
