Regular price $0.18 USD
Regular price Sale price $0.18 USD
Sale Sold out
Shipping calculated at checkout.

30 in stock

Condition: New
MPN Xref:LM4040CIZ-2.5/NOPB, TI01-0280164, NATI-0025997, 41K5219, 649445, 887123, LM4040CIZ-2.5/NOPB-ND, LM4040CIZ2.5NOPB, 926-LM4040CIZ25NOPB

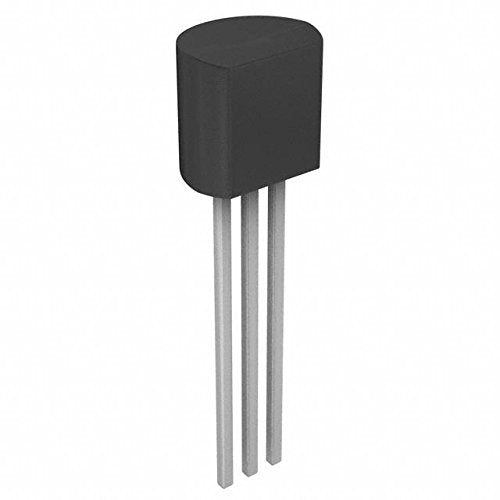

LM4040 Precision Micropower Shunt IC VREF Shunt 0.5% TO92-3
Initial Accuracy 0.5 %
Shunt Current - Min 60 uA
Alternate Part No. 926-LM4040CIZ25NOPB
Packaging Bulk
Output Voltage 2.5 V
Package/Case TO-92
Minimum Operating Temperature - 40 C
Shunt Current - Max 15 mA
Manufacturer Part No. LM4040CIZ-2.5/NOPB
Mounting Style Through Hole
Average Temperature Coefficient - Typ 20 PPM/C
Series -
Product Category Voltage References
Maximum Operating Temperature + 85 C
Reference Type Shunt Precision References
Base Part Number LM4040
Current - Cathode 65
Current - Output 15mA
Lead Free Status / RoHS Status RoHS Compliant
Manufacturer Part Number LM4040CIZ-2.5/NOPB
Manufacturer Standard Lead Time 12 Weeks
Mounting Type Through Hole
Noise - 10Hz to 10kHz 35
Operating Temperature -40?C ~ 85?C (TA)
Output Type Fixed
Package / Case TO-226-3, TO-92-3 (TO-226AA)
Standard Package 1,800
Supplier Device Package TO-92-3
Temperature Coefficient 100ppm/?C
Voltage - Output (Min/Fixed) 2.5V
Alternate Parts LM4040CIZ-2.5
Manufacturer Product Number LM4040CIZ-2.5/NOPB
Detailed Description Shunt Voltage Reference IC Fixed 2.5V V ?0.5% 15 mA TO-92-3
Category Integrated Circuits (ICs)
Package Bulk
Product Status Active
Noise - 0.1Hz to 10Hz -
Voltage - Input -
Current - Supply -
Base Product Number LM4040
Type of integrated circuit voltage reference source
Reference voltage 2.5V
Mounting THT
Case TO92
Operating temperature -40...85?C
Kind of package bulk
Maximum output current 15mA
Operating voltage 2.05...10V
