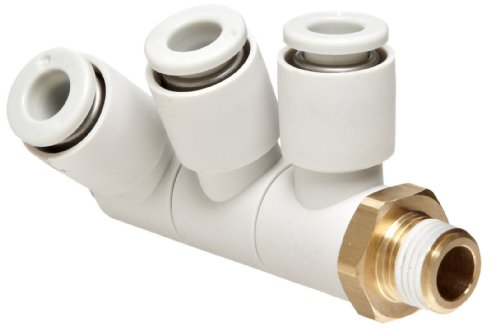

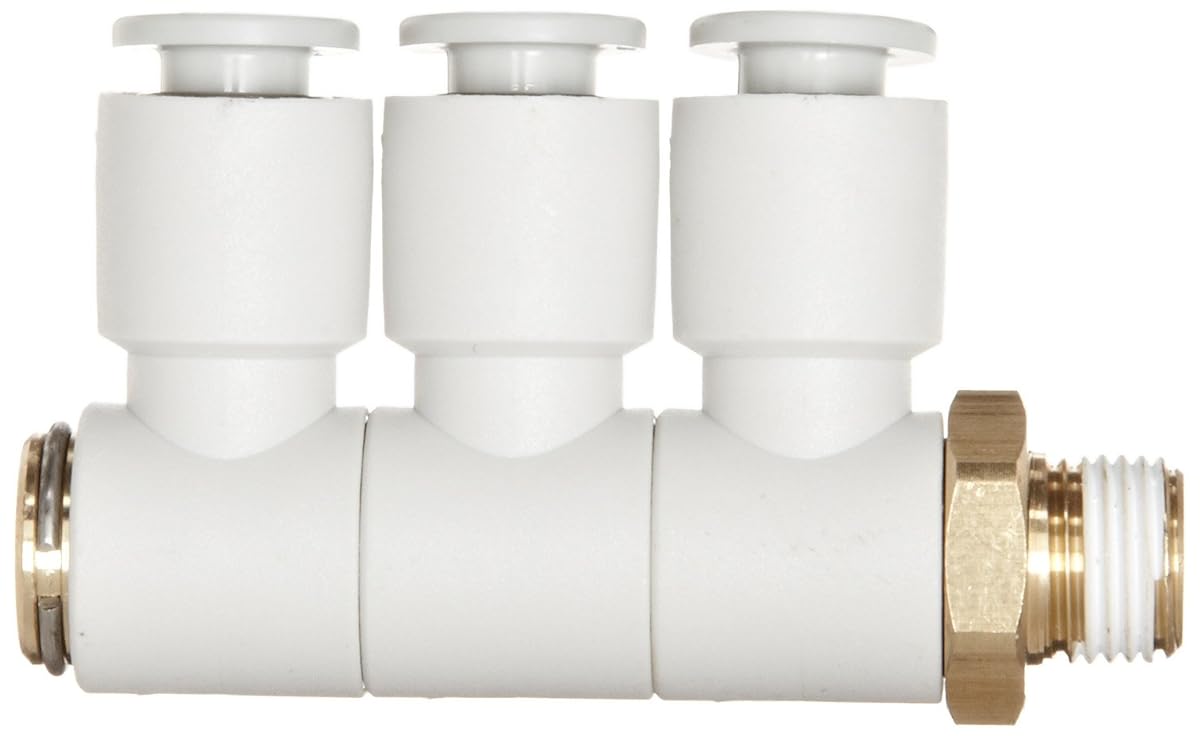

Universal Triple Male Elbow Sealant for 6mm Tubing

Condition: New
Brand: SMC
MPN: KQ2VT06-02AS
MPN Xref:KQ2VT06-02AS, 70335965, 11030249, B0065RSV6M

This sealant is a universal triple male elbow with a screw connection of R1/4, Rc1/4. It is suitable for 6mm tubing and has a 90-degree angled splice terminal variant. The operating pressure is -1 to 10 bar and the body material is brass. It features a 3-fold branch and has an operating temperature of -5 to 60 degrees Celsius.

Type	One-Touch / Screw
Application	Standard/Mini
Number of Connection Tubes(piece)	3
Sealant	S (sealant)
Model	VT (universal triple male elbow)
Port size/applicable tubing O.D.	02 (Screw Connection R1/4, Rc1/4)
Applicable tubing O.D.	6
Body Material	Brass
Series	KQ2 Series
Tube Size	6 mm
Type of pneumatic accessories	push-in fitting
Splice terminal variant	angled 90?,
Operating pressure	-1...10bar
Body material	brass,
Thread	R 1/4"
Cable external diameter	6mm
Kind of thread	outside
Pneumatic components features	3-fold branch
Operating temperature	-5...60?C
