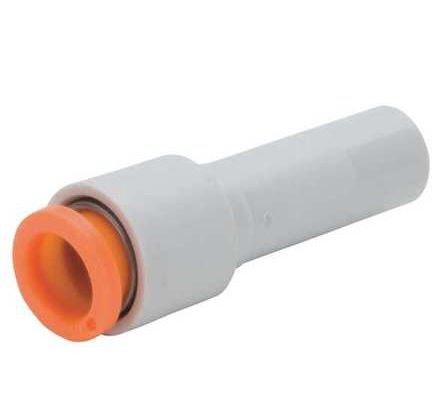

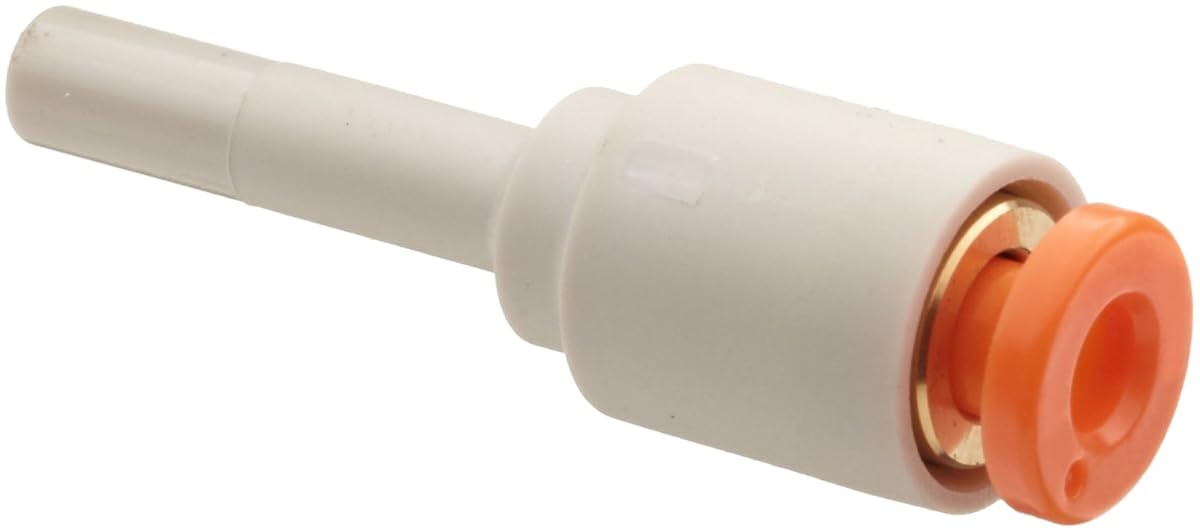

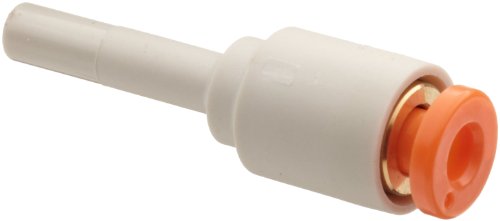

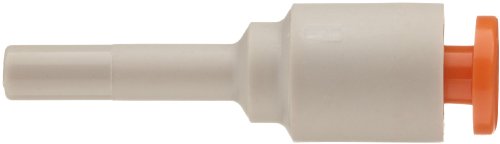

Brass Plug-In Reducer Fitting for 1/8 in and 5/32 in Tubes
Brass Plug-In Reducer Fitting for 1/8 in and 5/32 in Tubes
Regular price
$0.54 USD
Regular price
Sale price
$0.54 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 9 left
Couldn't load pickup availability
Condition: New
Brand: SMC Corporation
MPN: KQ2R01-03A
MPN Xref:KQ2R01-03A, B004M8T35Y, G4999425, 70247245, 36W670
This plug-in reducer fitting is made of brass and plastic, suitable for connecting tubes of 1/8 in and 5/32 in outer diameter. It is a one-touch fitting with a push-to-connect connection type and a maximum operating pressure of 145 psi.
Parts of this page were generated by an AI
WARNING: Products on this website can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
All orders are subject to inventory availability and approval. We are not responsible or liable for errors in the listings.
Brand: SMC Corporation
MPN: KQ2R01-03A
MPN Xref:KQ2R01-03A, B004M8T35Y, G4999425, 70247245, 36W670
This plug-in reducer fitting is made of brass and plastic, suitable for connecting tubes of 1/8 in and 5/32 in outer diameter. It is a one-touch fitting with a push-to-connect connection type and a maximum operating pressure of 145 psi.
| SKU | ZO-G4999425 |
| Current Stock | 211 |
| Brand | Smc |
| Mpn | KQ2R01-03A |
| International Shipping | No |
| Type | Plug-In Reducer |
| Application | Air, Non-Potable Water |
| Type Of Connection | Tube Connection |
| Item | Plug-In Reducer |
| Fitting Side A Connection Type | Push-to-Connect |
| Fitting Side A Tube Outer Diameter | 1/8 in |
| Fitting Material | Brass |
| Includes Pre-Applied Thread Sealant | No |
| Maximum Operating Temperature | 140 Degrees F |
| Specific Fitting Shape | Straight Adapter |
| Standards | RoHS |
| Minimum Operating Temperature | 41 Degrees F |
| Fitting Side B Connection Type | Push-to-Connect |
| Fitting Side B Tube Outer Diameter | 5/32 in |
| Colour | White |
| Maximum Operating Pressure | 145 psi |
| Overall Length | 28 19/32 mm |
| Release Type | Button |
| Compatible Tube Material | FEP, Nylon, PFA, Polyurethane, Soft Nylon |
| System of Measurement | Imperial |
| Body Material | Polybutylene Terephthalate |
| Connection Style | One Touch |
| Maximum Ambient Temperature | 60 °C |
| Minimum Ambient Temperature | -5 °C |
| Operating Pressure | 1 MPa |
| Port Size | 0.15625 in |
| Product Header | KQ2 Series One-Touch Fittings |
| Proof Pressure | 3.0 MPa |
| Series | KQ2 Series |
| Tube Size | 1/8 in. |
| SMC Class Description | KQ2 1/8 |
| SMC Products Line | CONNECTORS |
| Thread material/surface treatment | A (Resin Body) |
| Applicable tubing O.D. | 01 (1/8 in) |
| Port size/applicable tubing O.D. | 03 (5/32 in) |
| Model | R (plug-in reducer) |
| SMC Family Code | BN |
| SMC Family | KQ2 FITTING |
| For Tube Outside Diameter | 1/8 in, 5/32 in |
| Max. Pressure | 145 psi |
| Connection Type | Tube x Plug-In |
| Basic Material | Plastic |
| Color | White |
| Temp. Range | 23 Degrees to 140 Degrees F |
| Fittings Sub-Category | Adapters |
| Stem OD | 5/32 in |
