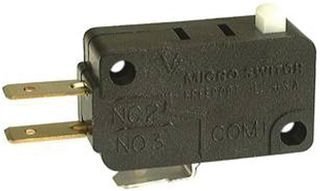

Microswitch V7-1Z19E9 Snap Action 25A 277V

Microswitch V7-1Z19E9 Snap Action 25A 277V

Regular price $1.55 USD
Regular price Sale price $1.55 USD
Sale Sold out
Shipping calculated at checkout.

17 in stock

Condition: New
Brand: Honeywell
MPN: V7-1Z19E9
MPN Xref:V7-1Z19E9, V71Z19E9, 78454920880, 24A273, 39B2883, 785-V7-1Z19E9, 480-2371-ND, 5223945, 70118809

Switch SPDT Chassis Mount
SKU ZO-G4543131
Current Stock 42
Mpn V7-1Z19E9
SubCategory Electrical
International Shipping No
Part Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 25A (AC)
Actuator Type Plunger
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.250" (6.3mm)
Ingress Protection -
Features -
Operating Force 2.25N
Release Force 20gf
Pretravel 0.047" (1.2mm)
Differential Travel 0.010" (0.25mm)
Overtravel 0.050" (1.27mm)
Operating Temperature -40?C ~ 85?C
Operating Position 0.579" (14.7mm)
Electrical Life 100,000 Cycles
Mechanical Life 10,000,000 Cycles
Voltage Rating - AC 277 V
Type of switch microswitch SNAP ACTION
Switches features without lever
Contacts configuration SPDT
AC contacts rating @R 25A / 277V AC
Switching method OFF-(ON),
Number of positions 2
Stable positions number 1
Leads for soldering
Body dimensions 28.8x21x10.2mm
Mechanical durability 10000000 cycles
Operating temperature -40...85?C
Package/Case CONNECTOR
Product Categories Basic / Snap Action / Limit Switches
RoHs Status Rohs
In-stock 30573
Tradename Microswitch
Manufacturer Product Number V7-1Z19E9
Manufacturer Standard Lead Time 32 Weeks
Detailed Description Switch SPDT Chassis Mount
Category Switches
Series V7
Package Bulk
Product Status Active
Base Product Number V7-1
Item Number V7-1Z19E9
Net Weight 0.11 lbs
Gross Weight 0.11 lbs
Contact Form SPDT
Current Rating 25A
Lever Actuator Length - Snap Action Switch Not Applicable
Height - Snap Action Switch 0.63 in
Width - Snap Action Switch 1.14 in
Depth - Snap Action Switch 0.4 in
Mounting Dimension - Snap Action Switch 0.87 in Centers
Mounting Dimension 0.41 x 0.87" Centers
Length 1.14"
Actuator Length Not Applicable
Depth 0.4"
Height 0.63"
Item Miniature Snap Action Switch
Actuator Type - Snap Action Switch Pin, Plunger
AC Contact Rating - Snap Action Switch 25 A 1/2 HP 125 V, 250 V or 277 V
Contact Form- Switches SPDT
Over Travel 0.05 in
Operating Temp. Range -40 Degrees C to 85 Degrees C [-40 Degrees F to 185 Degrees F], options for 175 Degrees C [347 Degrees F]
Max. Pretravel 0.047 in
Terminal Type Quick Connect
Voltage Rating 250VAC
Type of Actuator Pin Plunger
Standards CSA, ENEC, UL
