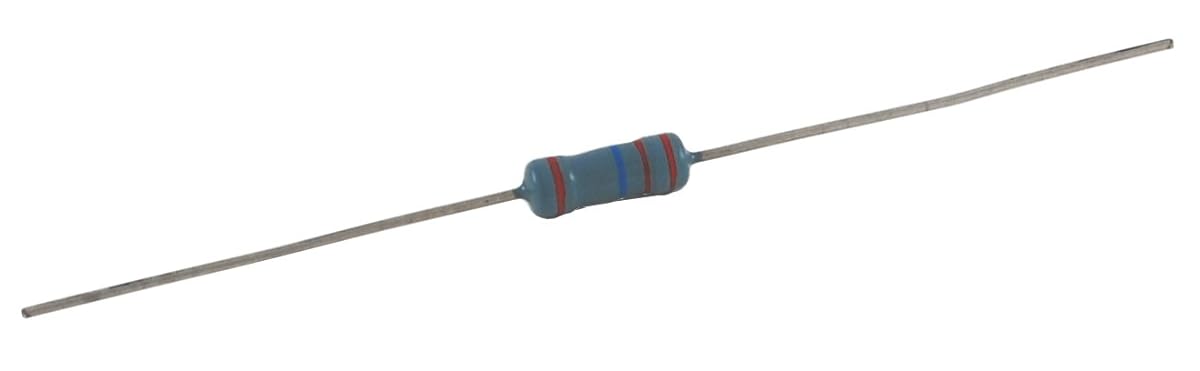

Metal Film Resistor 12 Ohms 2% 0.5W

Condition: New
Brand: NTE Electronics
MPN: HW012
MPN Xref:HW012, 33C4797, 10K023, 8341, G3659704

This resistor has a resistance of 12 Ohms with a tolerance of 2% and a wattage of 0.5W. It is a metal oxide film resistor with axial leads.

Part Number	HW012
Product Type	Resistors
California Residents
Manufacturer Part Number	HW012
Item Number	HW012
Product Series	Metal Film
Resistance	12 Ohms
Wattage	0.5 W
Composition	Metal Oxide Film
Package Type	Axial Lead
Terminal Type	Axial Leads
Max AC Voltage	350 V
Temperature (F)	-67-311 ?F
Tolerance %	2 %
Temp Coefficient (ppm/C)	200
Lead Length	1.5 "
Lead Diameter	0.032 "
Net Weight	0 lbs
Gross Weight	0 lbs
Manufacturer Product Number	HW012
Description	RES 12 OHM 2% 1/2W AXIAL
Detailed Description	12 Ohms ?2% 0.5W, 1/2W Through Hole Resistor Axial Flame Proof, Safety Metal Oxide Film
Category	Resistors
Series	-
Package	Bag
Product Status	Active
Tolerance	?2%
Power (Watts)	0.5W, 1/2W
Features	Flame Proof, Safety
Temperature Coefficient	?200ppm/?C
Operating Temperature	-55?C ~ 155?C
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.138" Dia x 0.355" L (3.50mm x 9.02mm)
Height - Seated (Max)	-
Number of Terminations	2
Failure Rate	-
