Insulated Crimp Terminal Lug for 10-12 AWG Wire - Yellow PVC

Condition: New
Brand: NTE ELECTRONICS
MPN: 76-IRT12-08
MPN Xref:76-IRT12-08, 76IRT1208

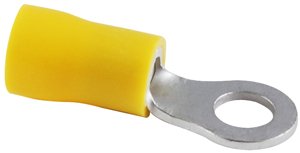

This crimp terminal lug is designed for 10-12 AWG wire and features a yellow insulated casing made of PVC.

Part Number	76-IRT12-08
Product Type	Crimp Terminals Lugs & Wire Nuts
California Residents
Gross Weight	0.0385 lbs
Category	Connectors, Interconnects
Series	-
Part Status	Active
Terminal Type	Circular
Stud/Tab Size	8 Stud
Thickness	-
Width - Outer Edges	0.283" (7.20mm)
Length - Overall	0.866" (22.00mm)
Mounting Type	Free Hanging (In-Line)
Termination	Crimp
Wire Gauge	10-12 AWG
Insulation	Insulated
Features	-
Color	Yellow
Contact Material	Copper
Contact Finish	Electro-Tin
Insulation Diameter	-
Material - Insulation	Poly-Vinyl Chloride (PVC)
